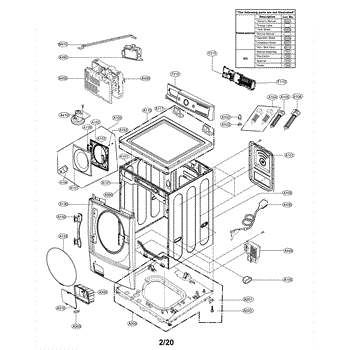

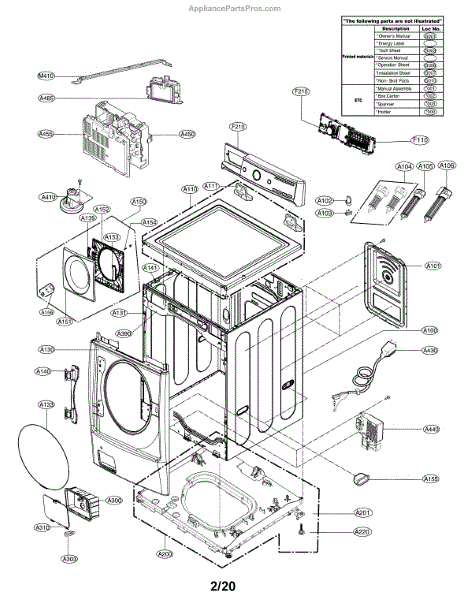

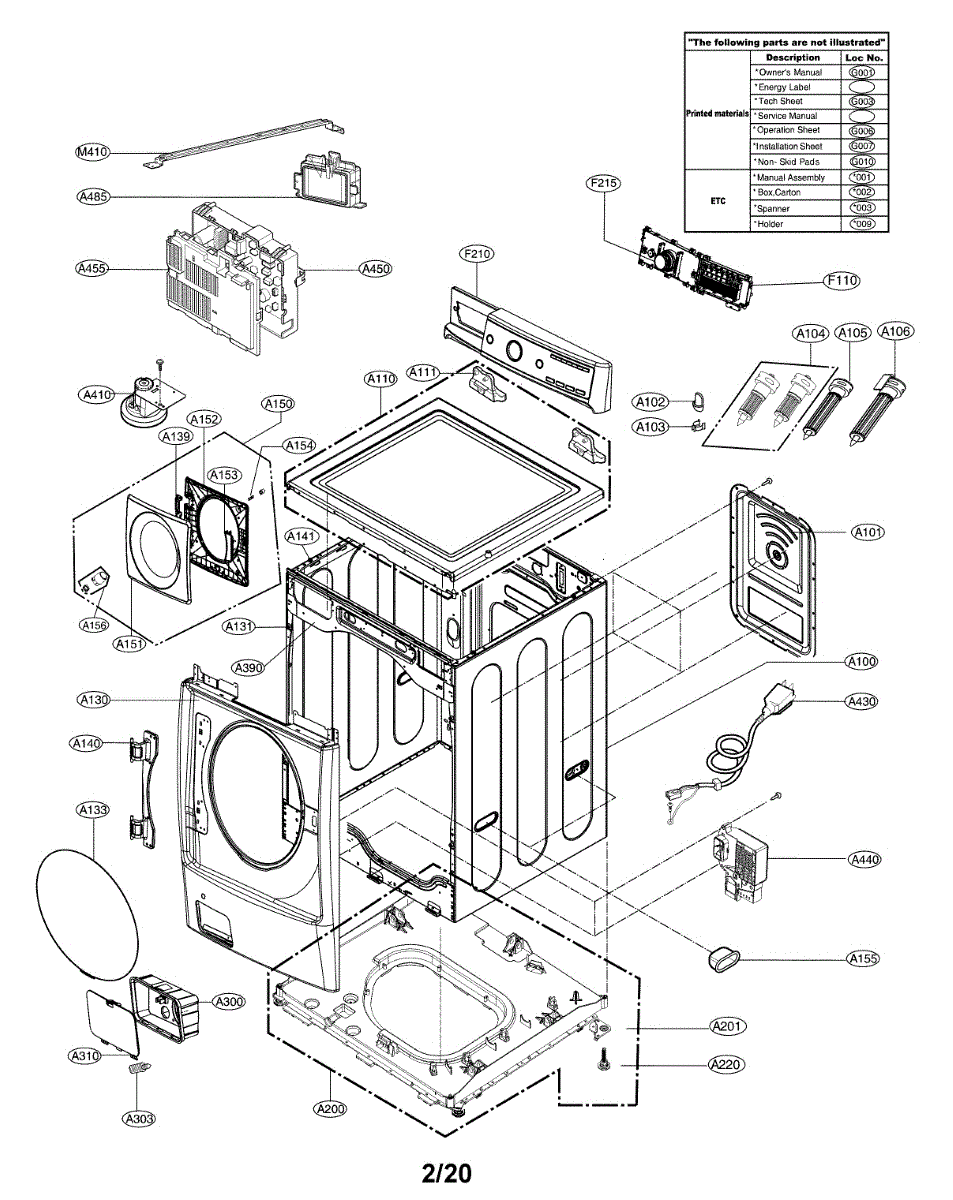

Parts for Kenmore Elite 79641002612: Cabinet & Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Secures and aligns internal housing and control components in your washer. Replace if bracket is cracked, broken, or missing to restore proper fit.

Washer manual holder that secures care guide documentation to your appliance. Replace if cracked, broken, or missing to keep owner's manual accessible.

These non-skid pads attach to the bottom of the washer's leveling legs to prevent the machine from sliding or walking across the floor during operation. They are made of durable rubber or similar grip material. Replace them if your washer vibrates excessively, moves out of position during spin cycles, or if the existing pads are worn, cracked, or missing.

Rear housing panel that shields internal components and maintains airflow. Replace this outer cover if cracked, broken, or missing to restore protection.

Drum bearing bushing for washers. Installs between drum and bearing assembly. Replace if cracked, worn, or missing to restore proper drum support.

Secures internal washer components and maintains proper alignment. Replace when brackets are worn, broken, or causing rattling. Confirm fit with your model number.

Shipping bolt assembly secures the washer drum during transport. Replace if bolts are lost, damaged, or missing before moving your washer to prevent damage.

Secures washer drum during moving or transport. Immobilizes internal components to prevent damage. Replace if missing, lost, or needed for relocation.

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

If your washer won't start, display is blank, or control panel is unresponsive, this power control board assembly may restore full functionality.

Top plate assembly for washer control panel area. Replaces cracked, broken, or damaged top plates. Structural component that secures and supports control.

Replacement drawer support lifter for washers. Holds and guides the drawer for smooth operation. Replace if cracked, broken, or causing uneven movement.

Replace your washer's drum spider arm assembly if it's cracked, corroded, or broken. This structural component connects the inner drum to the drive shaft.

Machine screw that fastens brackets, panels, or housings in select washers. Replace when missing, stripped, or damaged to restore secure assembly fit.

Supports the drum for smooth, quiet spinning. Replace when you hear grinding or loud noises during cycles. Verify fit with your model number.

Washer won't spin or makes grinding noises? The motor rotor bolt secures the rotor to the motor shaft. Requires a 17mm socket for installation.

Seals the rear tub to prevent water leaks during wash and spin cycles. Replace if you notice leaking or bearing noise. Confirm fit with your model.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

Secures the outer door boot seal to prevent water leaks. Replace if damaged, rusted, or losing tension. Includes tensioning spring. Verify fit.

Fixes loud banging or clunking during spin cycle caused by loose or broken balance weight. Reduces vibration and stabilizes drum movement. DIY repair.

This multi-connector wiring harness routes power and signals between the appliance control and internal components to restore reliable electrical connections. It replaces a damaged or worn harness to help components receive consistent power and communication. What it does:

• Carries power and signal between the control board and multiple internal components
• Fixes intermittent or lost power to parts caused by frayed or broken wiring
• Helps stop erratic operation or component failures due to loose or corroded connectors
• Prevents shorts and improves connection reliability when installed correctly

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any work
• Inspect connectors and wire routing; replace harness if insulation or terminals are damaged
• Match connector shapes and pin counts before connecting; seat connectors fully until they click

Washer lid hinge assembly connects the lid to the cabinet. Replace if your hinge is cracked, broken, or worn causing the lid to sag or not stay open properly.

Protects the drum assembly and seals water inside during cycles. Replace if cracked, warped, or leaking. Confirm fit with your washer model number.

A replacement holder assembly that secures and supports internal components for proper alignment and operation. Restores stable mounting where the original bracket is cracked, bent, or broken so the appliance runs quietly and reliably. What it does

• Provides a secure mounting point for internal parts that rely on a fixed support
• Prevents rubbing, misalignment, and excess vibration caused by a damaged holder
• Helps restore correct component positioning to improve part interaction and operation
• Commonly used when the original bracket is cracked, worn, or no longer holds parts firmly

• One holder assembly

• Disconnect power before starting any repair; shut off water supply if the repair requires opening plumbing
• Basic hand tools typically required; handle clips and tabs gently to avoid damage
• Inspect adjacent components for wear and replace if needed for a long-lasting repair

Seals between front and rear outer tubs to prevent water leaks during wash cycles. Replace if you notice leaking or during bearing replacement. Confirm fit with your model number.

Washer screw

Secures the stator to the motor assembly in your washer. Replace if bolt is stripped, spinning freely, or missing to restore proper motor stability.

Motor harness wiring for washers. Connects motor to control board. Replace if wires are damaged, frayed, connectors broken, or harness is worn out.

Replacement handle for laundry center doors. Installs on front panel for opening and closing access. Needed when original is cracked, broken, or missing.

The Magnetic Door Plunger is an OEM part for LG washing machines. It is designed to securely hold the door in a closed position during the operation cycle, employing a magnet mechanism for enhanced reliability. The plunger ensures that the door latch is properly engaged, preventing the machine from running if the door is not closed correctly.

Causes of a bad Magnetic Door Plunger can include wear and tear from constant use, failure of the magnetic mechanism due to exposure to moisture or mechanical damage, or a misalignment that prevents the door from closing properly.

Symptoms of a bad Magnetic Door Plunger include:

• The washing machine door not staying closed during cycles.
• The machine failing to start due to a door sensor not detecting closure.
• Random pausing of the machine during operation if the door unlatches.

This OEM LG part is also compatible with Sears/Kenmore.

Fix a washer that won't fill, fills slowly, or overfills with this water inlet valve assembly. Controls water flow during all wash cycles.

Fix washer IE error or no water flow issues with this water inlet valve. Controls hot or cold water flow into wash drum. 15-minute DIY repair.

Filters debris from water entering your washer. Replace when water flow is reduced or sediment buildup occurs. Verify fit with your model before ordering.

The Float Assembly is an OEM part for LG washing machines. This part monitors and controls the water level within the appliance. It's a safety feature that prevents water overflow and potential flooding, contributing to the efficient operation of the washing machine by maintaining the correct water level for each cycle.

Causes of a bad Float Assembly can vary from simple blockages that prevent the float from moving freely to electrical faults within the switch mechanism.

Symptoms of a bad Float Assembly include:

• Water overflowing from the washing machine
• Inadequate water levels that affect the washing cycle's effectiveness
• The washing machine failing to start the fill cycle due to a malfunctioning float switch

This OEM LG part is also compatible with some Kenmore models.

Cabinet base assembly for front-load washers. Replace this structural component if cracked, damaged, or rusted to restore proper cabinet support.

This Thermostat Assembly monitors and regulates internal temperature within the appliance's heating circuit. Replacing a failed thermostat restores proper heat control, helps prevent overheating, and can resolve common heating performance issues so cycles run correctly. What it does

• Senses internal temperature and opens/closes the heater circuit to maintain proper heat
• Provides over-temperature protection by cutting power at unsafe temperatures
• Helps ensure consistent heating performance throughout the cycle
• Helps with symptoms such as no heat, overheating/shutting off, or unusually long cycle times

• 1 thermostat assembly

• Disconnect power before servicing; allow hot components to cool
• Access the thermostat location (varies by model); note wire positions before removal
• Mount flush to the surface for accurate sensing; transfer original hardware if required
• After installation, test operation; use a multimeter for continuity checks if needed

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Leveling leg assembly for washers and laundry centers. Installs at the base to support and level the unit. Replace if cracked, broken, or missing.

This heater assembly warms the wash water inside the tub so the control can reach and maintain the selected temperature. Replacing a failed element restores proper heating performance and helps return cycle times to normal. What it does:

• Heats the water in the washer's tub during applicable cycles
• Helps the control reach and hold target temperatures for better cleaning
• Failure symptoms can include cold wash water, extended cycle times, and reduced cleaning performance
• Visual damage or an open circuit on the element indicates replacement is needed

• 1 heater assembly

• Disconnect power and turn off water before servicing
• The heater mounts at the bottom of the outer tub; remove front or rear panels as required by your model to access it
• Note wire locations; loosen the center nut, press the stud to release the old seal, and carefully withdraw the element
• Seat the new gasket evenly, tighten the nut to compress the seal, then run a test cycle to check for leaks and proper heating

Fix a loose or missing fabric softener cap that won't stay in place or causes drawer issues. Simple snap-in replacement restores proper dispensing.

Bleach dispenser funnel for LG front load washers. Installs in detergent drawer to safely dispense bleach. Replace if cracked, broken, or missing.

Fix detergent not dispensing or a broken dispenser drawer. This washer detergent box assembly holds and releases soap properly. DIY-friendly repair.

Fix TE error code on your washer with this thermistor assembly. Monitors water temperature during wash cycles. DIY-friendly repair with video guide.

Thermal fuse that protects the washer motor circuit from overheating. Interrupts power if motor temperature exceeds safe limits. Replace if washer stops mid-cycle or won't start.

Fix detergent not dispensing or leaking from drawer. This dispenser assembly includes compartments for detergent, bleach, and softener. 15-minute DIY repair.

This part may be black or gray in color.

Trim cap that covers exposed screws or mounting holes on your washer. Replace when cracked, broken, or missing to restore finished appearance.

Seals the temperature sensor where it passes through the washer tub. Replace if worn or leaking to prevent water damage. Confirm fit with your model.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

Includes sensor probe

Directs water from inlet valve to detergent dispenser in LG washers. Replace if hose is cracked, leaking, won't stay attached, or damaged from wear.

Fix washer leaks or no water flow with this water inlet connector hose. Routes water from valve to dispenser. Direct-fit replacement for worn hoses.

Washer won't drain or shows OE error? This drain pump assembly removes water during spin cycle. Moderate DIY repair with video guide available.

Note: Per the manufacturer, the design changed  of this washer drain pump changed in April 2025. The new gray casing with different fins will still work, as the fins allow access for wiring.

Drain hose carries used water from washer to household drain. Replace if cracked, leaking, deteriorated, or damaged to prevent water overflow issues.

Fix leaking water from the bottom of your washer with a new pump casing. Houses and protects the water pump. Moderate DIY repair with clear instructions.

The Washer Circulation Pump Motor is an OEM replacement part for LG washing machines. It is a vital component responsible for circulating and pumping water through the wash tub during the various wash and rinse cycles.

Symptoms of a faulty circulation pump motor include:

• Improper water circulation or agitation during wash cycles
• Failure to drain or drain slowly after wash cycles
• Abnormal noises or vibrations coming from the pump area

Causes of a bad circulation pump motor can range from normal wear and tear over time, electrical malfunctions, blockages or obstructions in the pump impeller, or physical damage from foreign objects or debris.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

The Damper is an OEM replacement part for LG washing machines. It plays an important role in regulating airflow through the machine's drying system. The damper uses adjustable louvers to direct warm air emitted during the drying cycle.

Causes of a faulty washer damper include broken internal mechanisms preventing louver movement, and restricting optimal air dispersion. Dust or mineral buildup can also impact function over time.

Symptoms of a problematic damper are

• incomplete or lengthy drying cycles.
• Clothing may still feel damp even after an extended run
• Excessive lint accumulation could also point to improper air management

This OEM LG part is also compatible with Sears/Kenmore.

Mounting bolt for washers. Secures internal components and assembly parts. Replace if bolt is stripped, corroded, missing, or damaged during repairs.

Fix LE error code or washer won't spin issues with this stator assembly. Common repair for motor lock problems. DIY-friendly, typically installed in 30 minutes.

Fix LE error codes or grinding noises during spin with this washer rotor assembly. Pairs with stator to drive drum rotation. DIY repair in 30 minutes.

Frame assembly for washers. This structural component supports internal parts and the cabinet. Replace if cracked, bent, or damaged to restore stability.

Water leaking from filter area or drain error? This washer pump filter traps lint and debris. Easy DIY fix with video guide—most install in minutes.

Fix washer overfilling or won't fill issues with this water level pressure switch. Senses tub water level to control fill cycles. Easy DIY repair.

Suspension spring supports and stabilizes the washer tub during wash and spin cycles. Replace if broken, snapped, or stretched to restore proper operation.

Supports suspension springs that stabilize the washer drum, reducing vibration and noise during operation. Replace if drum shakes excessively or hits sides. Verify fit with your model number.

Appliance won't power on? This power cord assembly restores electrical connection when the cord is damaged or has poor contact. Direct plug-in repair.

Pivot hanger assembly that supports and stabilizes washer components. Replace if worn, damaged, or causing misalignment to restore smooth movement.

Washer won't start or shows dE/door lock error? This door switch detects if the door is closed so the cycle can begin. Easy DIY repair with video guide.

Secures rubber hoses to fittings with constant spring tension to prevent leaks. Replace when rusted or weakened to maintain a tight seal. Confirm fit.

Fix a washer that won't start, won't advance cycles, or has no display. This main power control board assembly restores normal operation. Moderate DIY.

Protective access cover shields internal washer components from dirt and moisture. Replace if cracked, broken, or missing to restore factory protection.

Fix washer leaks with this hose clamp. Secures hoses to pumps and valves, preventing water leaks and disconnections during wash cycles. Simple repair.

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

Secures hose connections to prevent leaks in your washer. Replace if corroded, rusted, or leaking around hose fittings. Confirm fit by model number.

Secures washer hoses to pumps, tubs, and drain fittings to prevent leaks. Replace when weakened, rusty, or damaged to maintain tight connections.

Washer filter assembly traps lint and debris to protect the drain pump. Replace if clogged or damaged to prevent drainage issues. Verify fit with your model.

Replace your washer door gasket to restore a watertight seal and prevent leaks. Install when you notice water escaping or moisture buildup. Verify fit with your model number.

Fix washer leaks or weak water spray with this connector nozzle. Channels water between internal components when worn nozzles cause drips or poor flow.

This is an LED light assembly that mounts inside the washer to provide interior illumination. It allows you to see the drum contents when the door is open or during operation. Replace this assembly if the interior light no longer turns on, flickers, or appears dim.

Fix water leaking from your washer dispenser or misdirected flow with this dispenser water guide channel. Routes water properly to prevent splashing.

Replacement tub to pump hose for washers. Transports water from the wash tub to the drain pump. Replace if cracked, split, leaking, or damaged from wear.

Secures the door boot seal to prevent leaks during wash cycles. Replace if corroded, loose, or if water leaks from the door area. Confirm fit with model.

Pressure sensor air chamber for washers. Connects the tub to the water level switch. Replace if cracked, clogged with detergent residue, or leaking air.

This inlet hose routes household water into the appliance's fill system, providing a secure, watertight connection. Replacing a worn, cracked, or leaking hose restores proper fill and helps prevent leaks and cycle interruptions.

• Directs incoming water from the supply connection to the appliance's inlet/fill assembly
• Maintains a sealed path to prevent drips and leaks
• Replace if the hose is cracked, swollen, kinked, or fittings are corroded
• Typical symptoms include leaks behind/under the unit, slow or no fill, or a water supply error message

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water and relieve line pressure
• Note routing and fitting orientation; transfer any seals/clips from the original if required
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening, then restore water and check for leaks

Replace your washer's drain hose if cracked, leaking, or damaged. Connects the pump to the standpipe for proper water drainage during wash cycles.

Joins two internal water lines in your washer. Replace this coupler if cracked, worn, or leaking to restore a secure connection during fill and wash cycles.

Shock absorber kit reduces vibrations and stabilizes the drum during wash cycles. Replace if worn, leaking, or causing excessive movement and noise.

Locking pin for shock absorber.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
