Frigidaire 5995613345 Repair Parts List (Schematic & Parts Diagram), Single Sheet OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5995613345 replaces AP5630738.

Description

This printed repair parts list provides the appliance's exploded diagram and part numbers so DIYers can identify components quickly and order the correct replacements. Useful when troubleshooting part failures or planning repairs. What it does

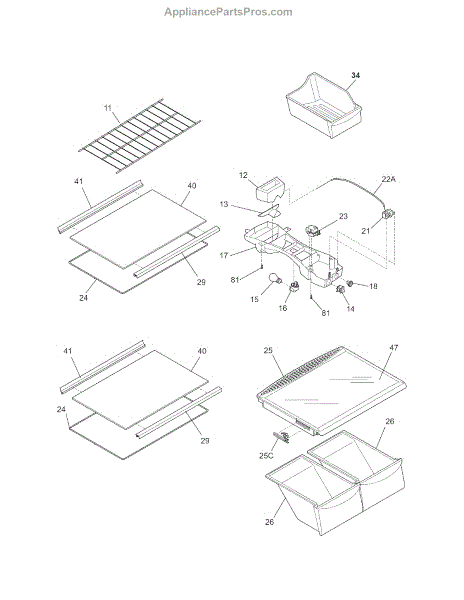

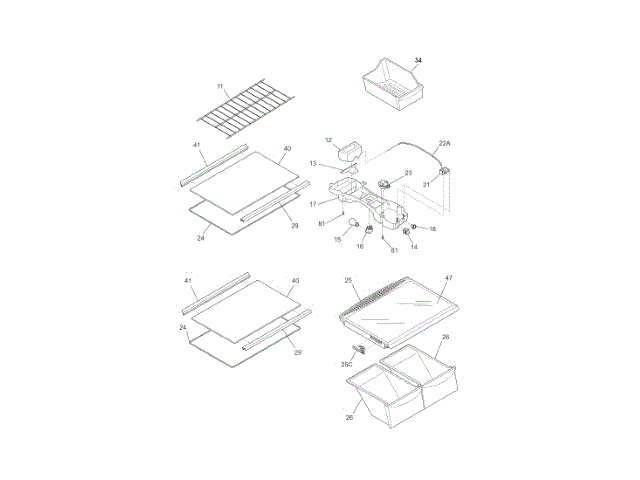

• Shows the appliance's exploded view and labeled part locations for accurate identification
• Lists OEM part numbers used to replace components
• Helps diagnose which parts to inspect when you see common symptoms like a non-working component, leaks, or unusual noises
• Supports faster, more confident parts ordering and repair planning

What's included

• One printed repair parts list / parts diagram sheet

Install notes

• No special tools required; this is a reference document, not an installed component
• Keep with service records or near the appliance when performing repairs
• Part numbers on the diagram against the appliance serial/model before ordering replacements
