General Electric Range RA513XJ3 Element will not heat

The 8-inch Large Surface Element is an OEM replacement part for GE electric ranges. Occupying a full burner space, it provides powerful heating for large pots and pans. Consistent output is important for chef-quality results. Fits those General Electric and Hotpoint ranges using a 2350 watt, hi-rise, no trim ring, 2 wire, screw-in element.

Causes of a bad surface element can include electrical malfunctions, frequent use leading to wear and tear, or physical damage from impacts or spills. Over time, the element may burn out or develop hot spots, leading to uneven heating.

Symptoms of a failing element include:

• Heat not radiating out evenly from the entire coil surface
• Fluctuating temperatures and inconsistent boiling or searing
• Exposed or damaged wiring presenting shock or burn risks
• Controls no longer functioning properly to turn the element on/off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

NOTE: For the matching 6-inch element order WB30X359. Includes the ceramic terminal blocks, clips, and screws for mounting.

The 6-inch Small Surface Element is an OEM part for GE electric ranges. This heating element is designed to provide consistent and efficient heat for cooking on the stovetop. It fits into the burner receptacle and is controlled by the burner switch to deliver the appropriate amount of heat for various cooking tasks.

Causes of a bad surface element can include regular wear and tear, damage from cookware, or electrical issues.

Symptoms of a bad 6-inch surface element include:

• The element not heating up at all
• Uneven or inconsistent heating
• Visible damage or warping of the element
• Sparks or unusual noises when the element is turned on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

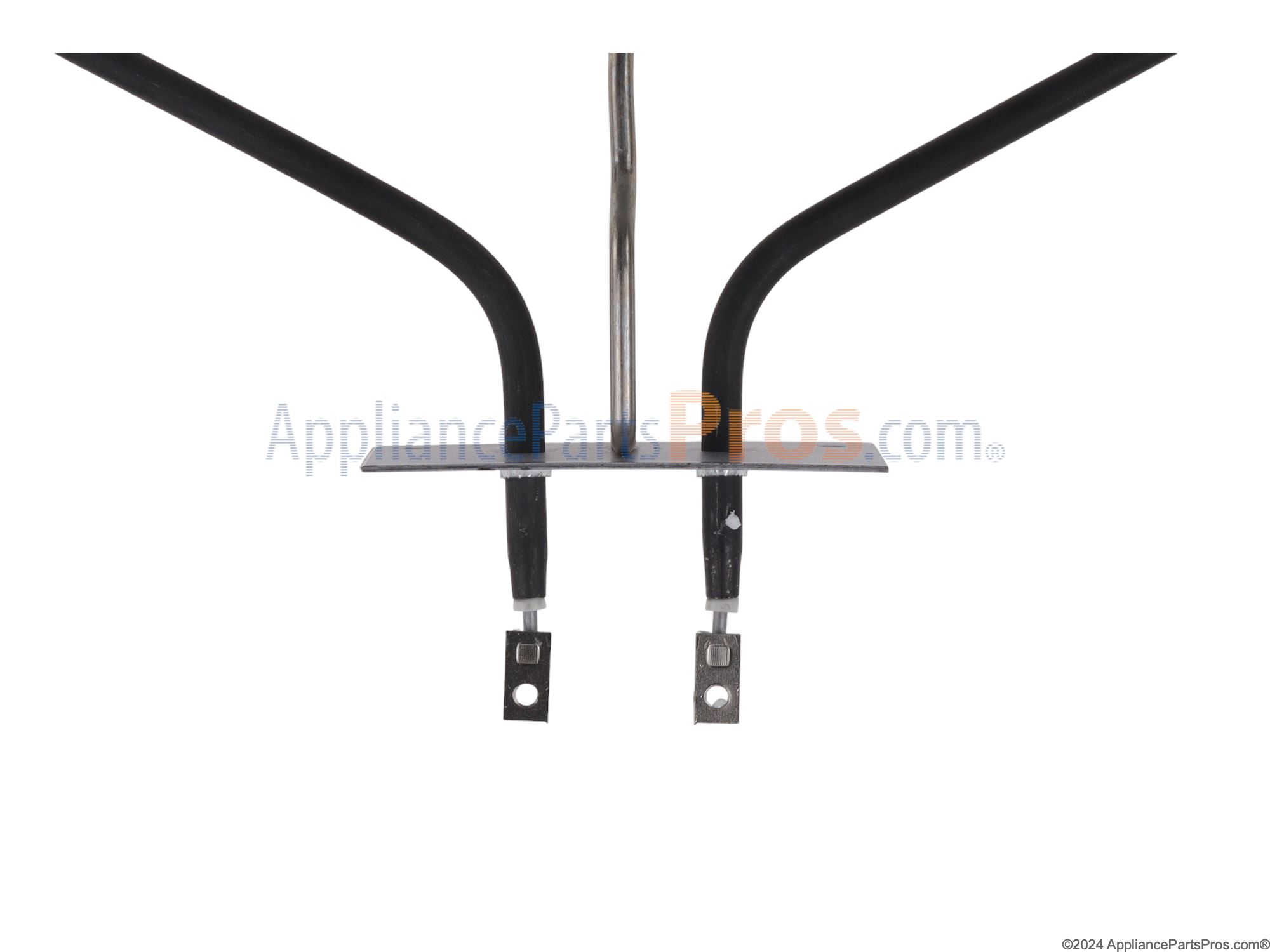

The Oven Broil Kit is an OEM part for GE ovens. It includes the broil element, which is responsible for generating high heat from the top of the oven to broil food. The broil element, which has screw-on terminals, measures 11-3/8" wide and 15-5/8" long from the mounting bracket to the end of the element. The distance from the bracket to the terminal end is 1-5/8".

You should replace this broil kit if it fails to heat properly. Causes of a bad broil kit can include electrical faults, such as short circuits or open circuits in the element, physical damage from accidental impact, or wear and tear over time.

Symptoms of a bad broil kit include:

• The broil element not heating up
• Uneven broiling results
• Visible damage or burns on the element
• The oven tripping the circuit breaker when broil mode is activated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
