General Electric Refrigerator RSG22IBMDFWW Noisy

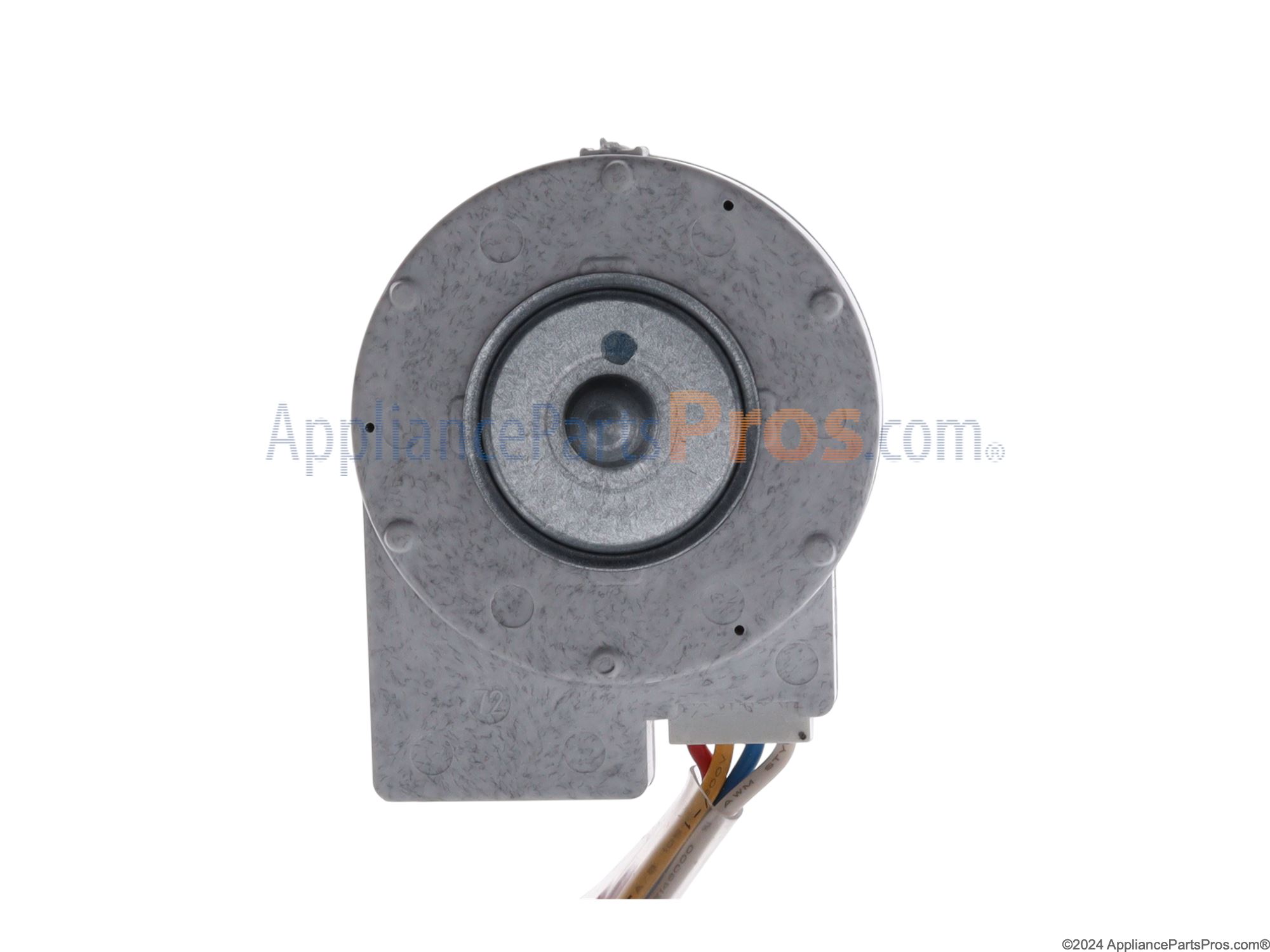

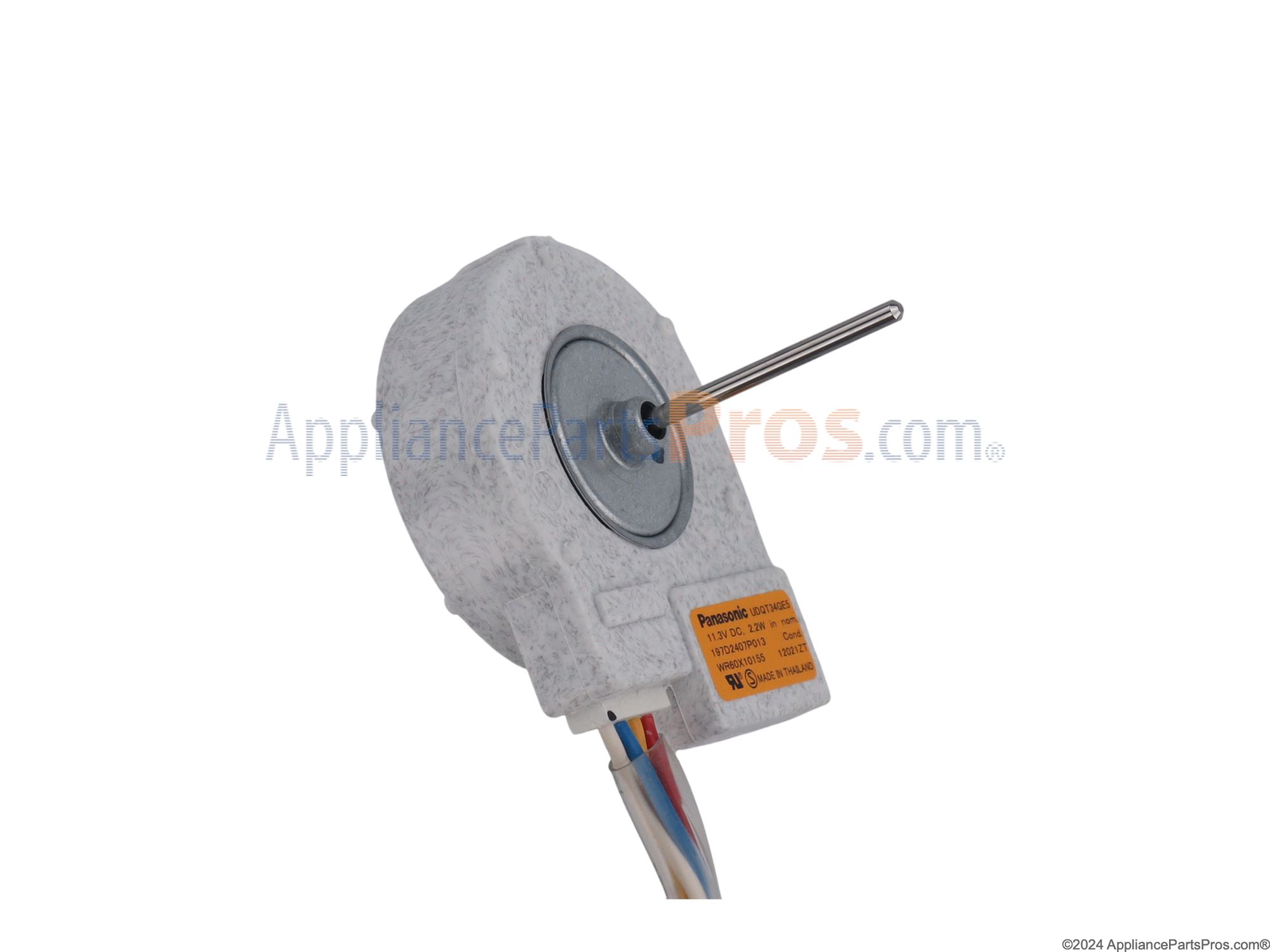

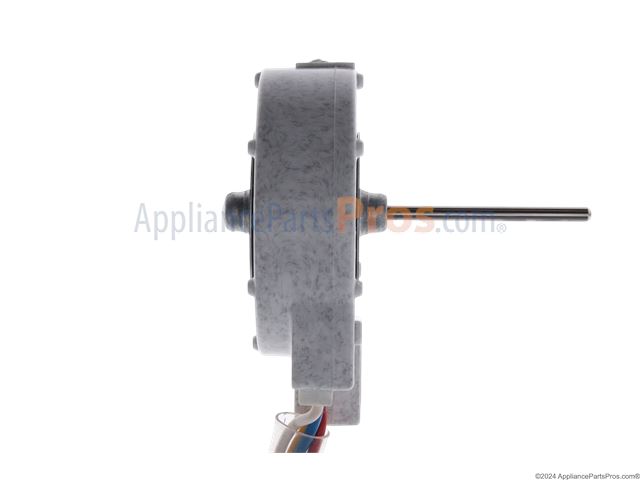

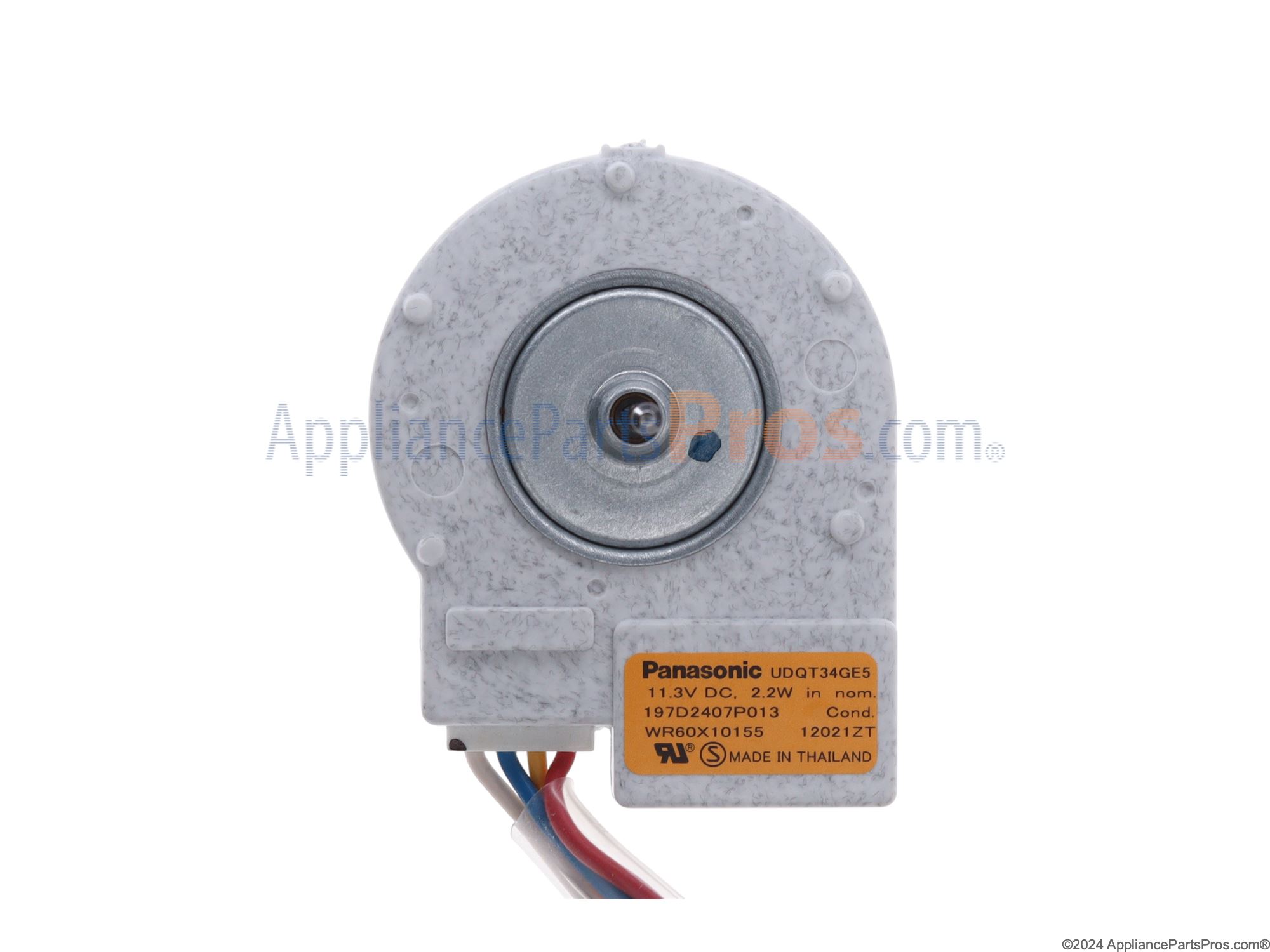

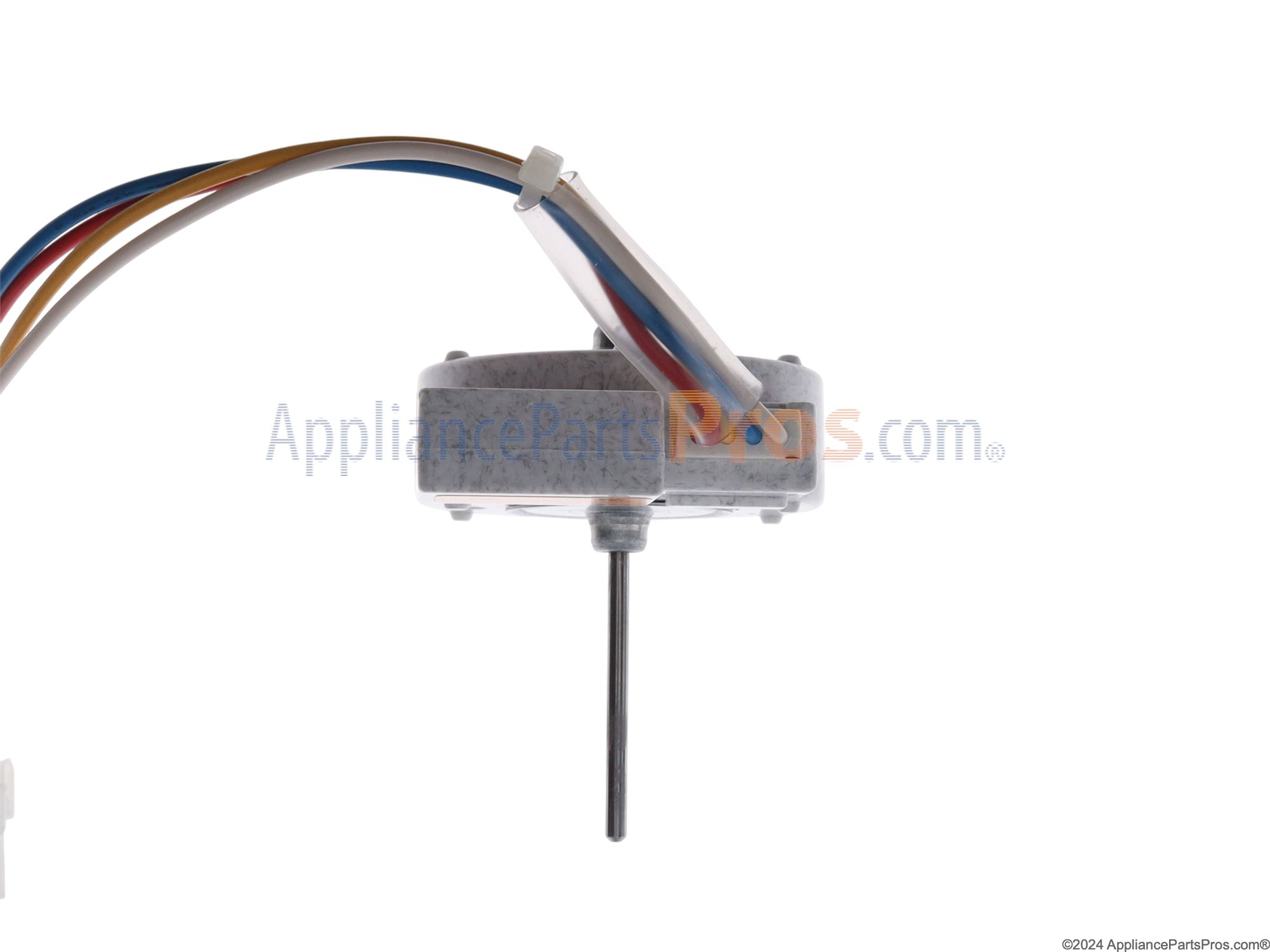

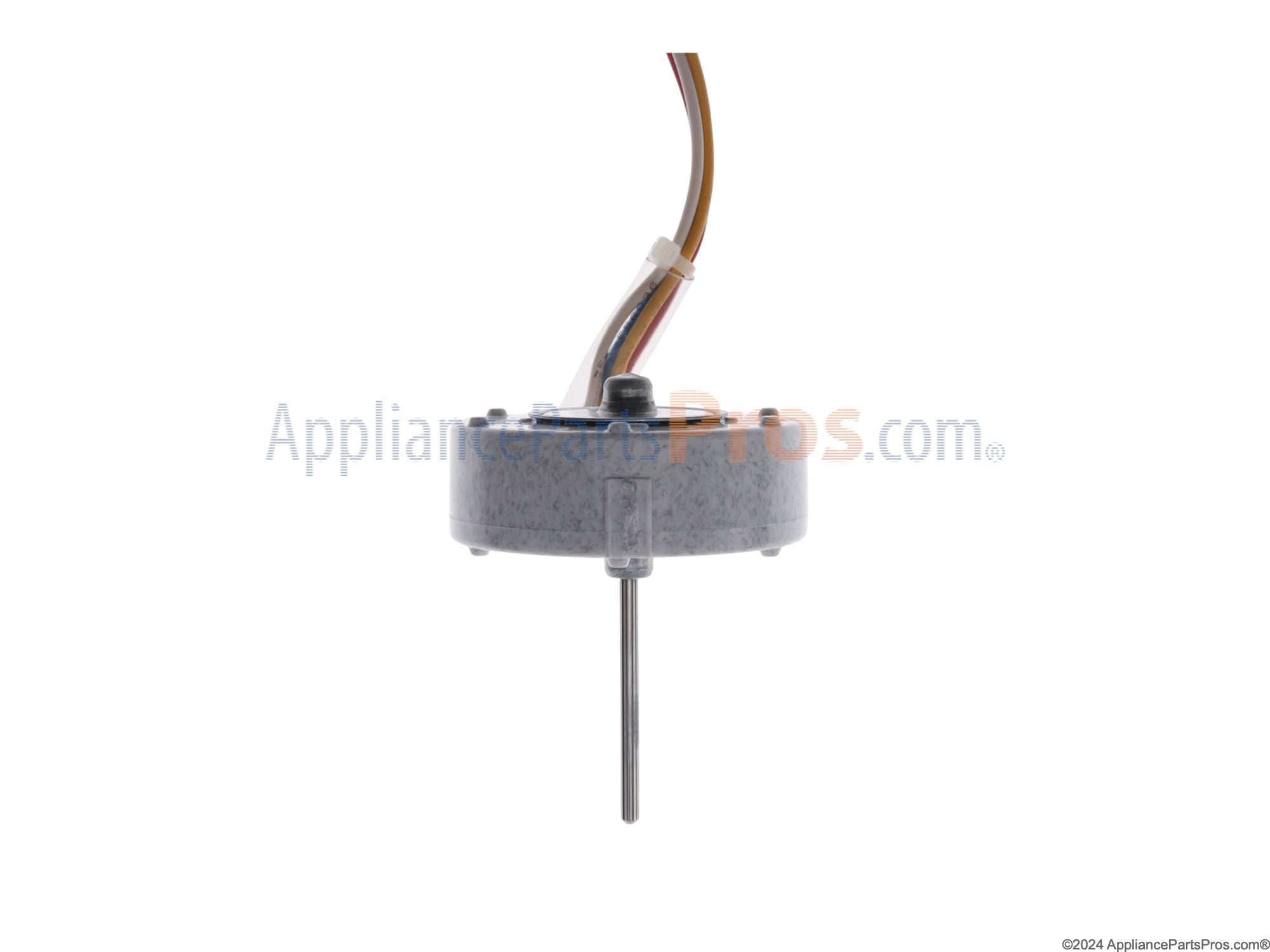

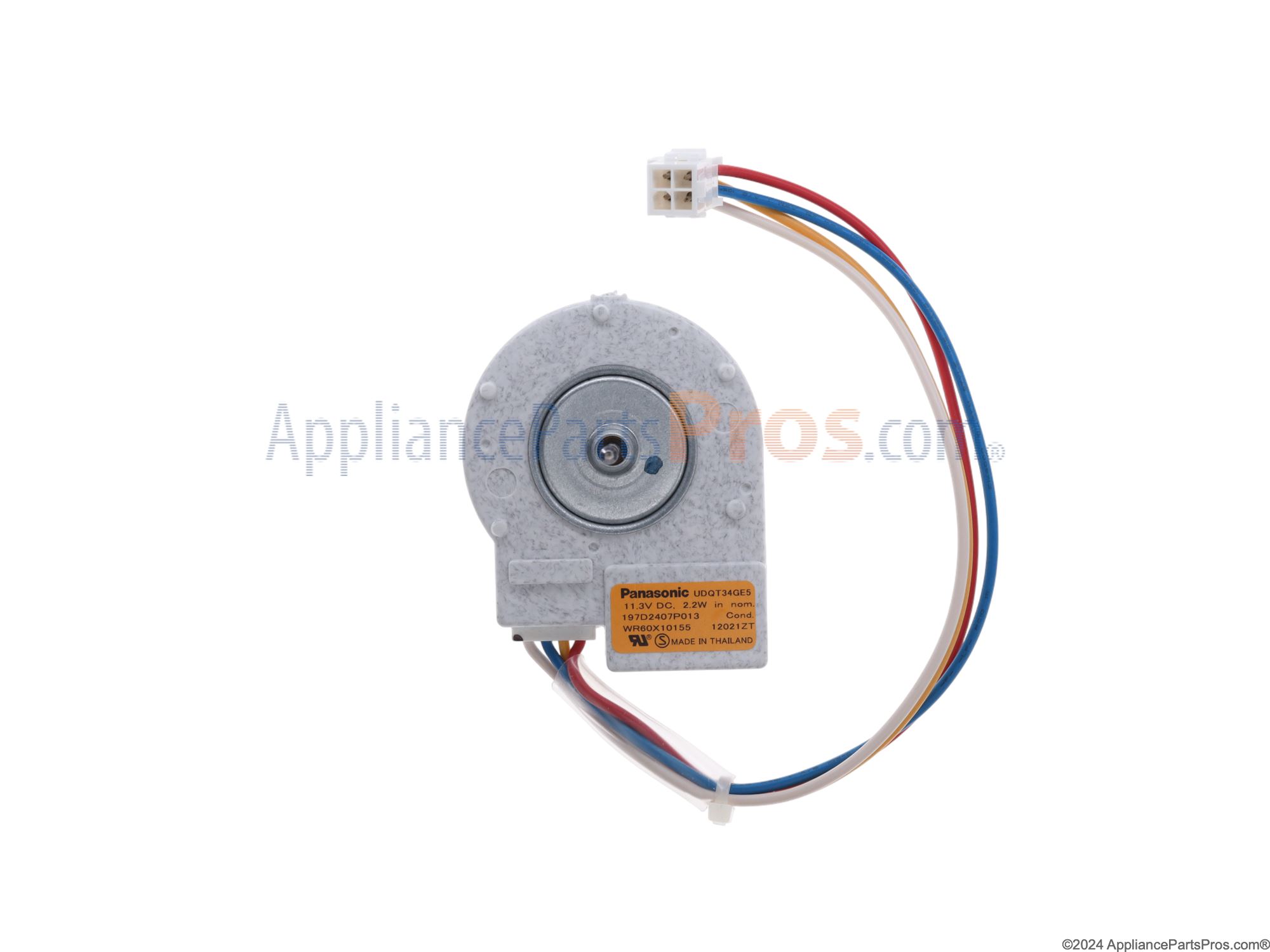

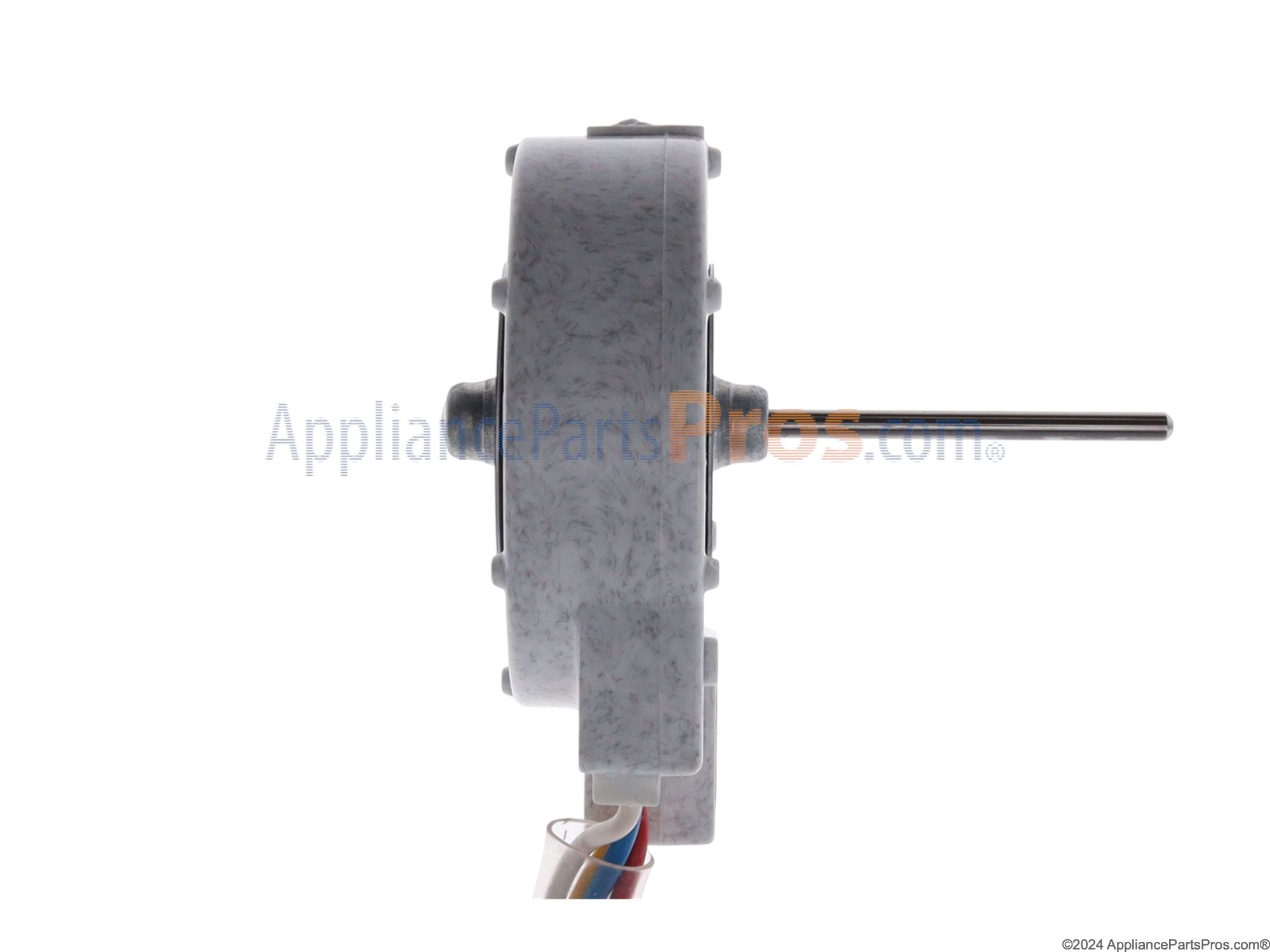

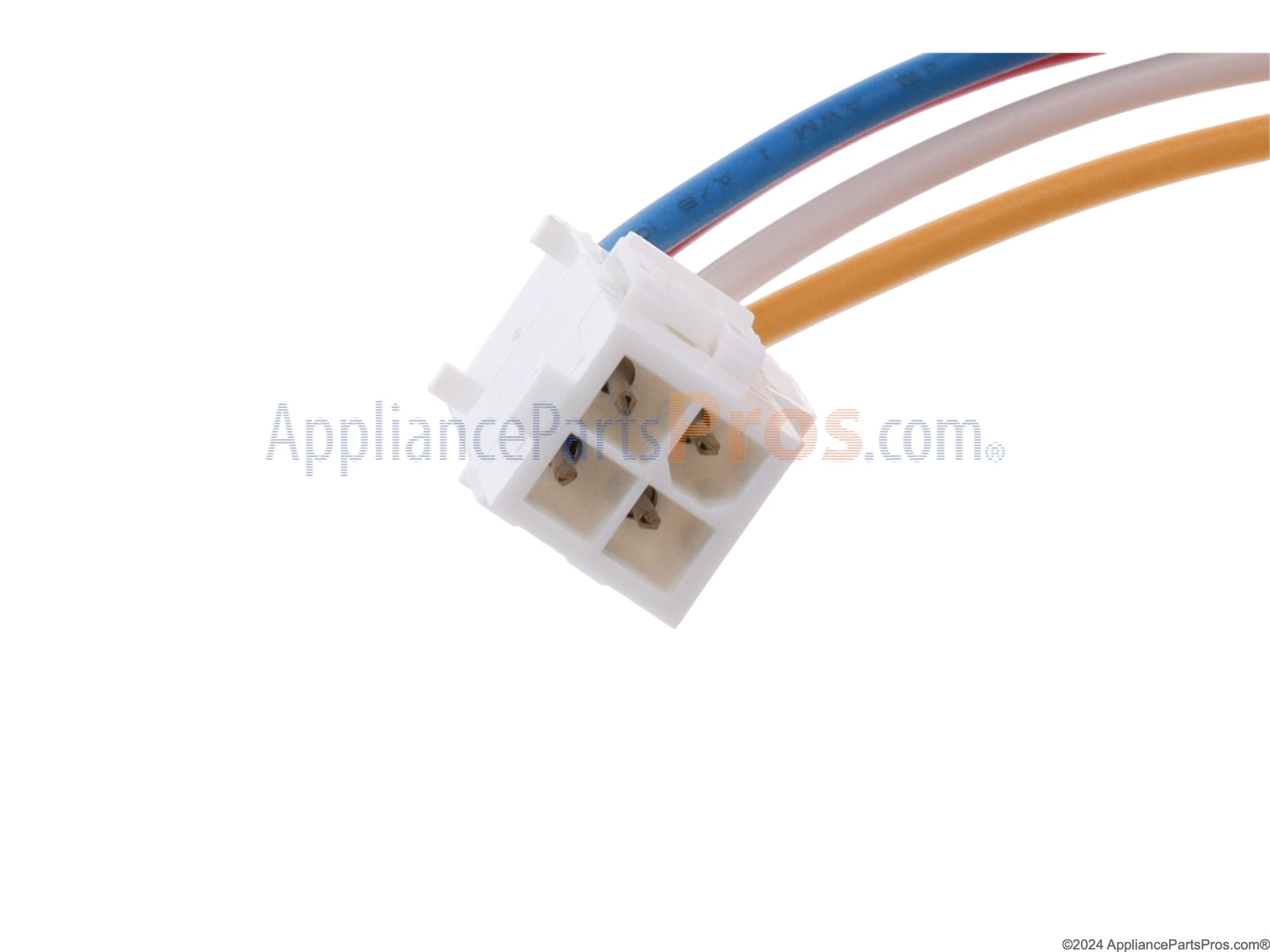

The Evaporator Fan Motor is an OEM part for GE refrigerators. It is responsible for circulating cold air throughout the refrigerator and freezer compartments, ensuring uniform cooling and maintaining the set temperatures. For the motor WITHOUT the thermistor order part number WR60X10185. For the motor with the harness for the light use part number WR23X10476.

Over time, the evaporator fan motor can fail due to electrical issues, worn bearings from continuous operation, or physical damage from ice buildup or foreign objects. A failing motor can lead to inadequate cooling and potential food spoilage.

Symptoms of a bad evaporator fan motor include:

• Unusual noises coming from the refrigerator, such as squealing or grinding
• The refrigerator or freezer not cooling properly
• Frost buildup in the freezer
• The fan not running when the refrigerator door is closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

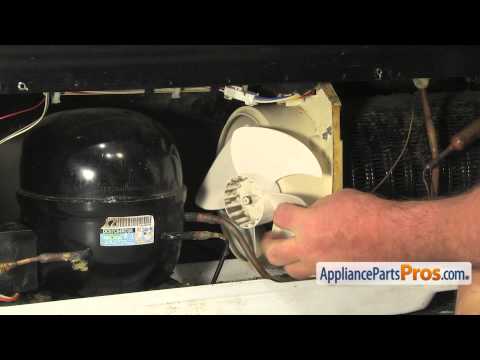

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
