Maytag Dishwasher MDB7759AWS0 Not drying dishes properly

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

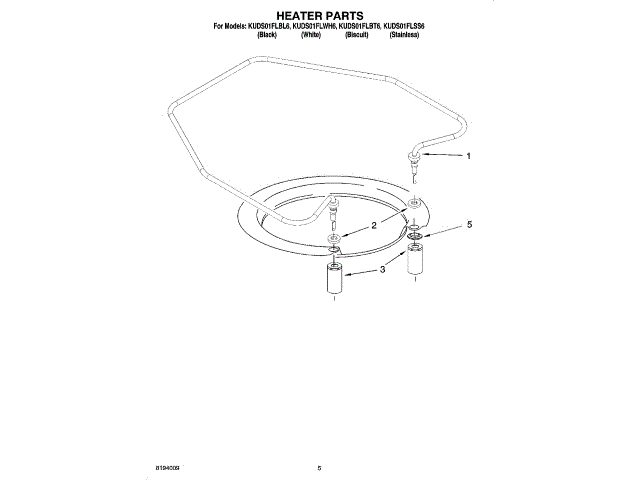

The Dishwasher Heating Element is an OEM replacement part for Whirlpool dishwashers. It safely generates heat to sanitize dishes and raise water temperatures during hot drying cycles. A functioning heating element ensures thorough cleaning and reduces the risk of damage from moisture left behind.

Causes of a bad heating element usually relate to standard wear and deterioration of wiring insulation or coil materials after extended usage cycles. Surface scale can obstruct heat transfer if not periodically removed.

Symptoms of a bad heating element include:

• Dishes not getting fully dry
• Moisture remaining in low areas after cycles
• Inability to select high-temperature settings
• Cycles that don't reach the required sanitization temps

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwashers.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
