Samsung Range RESF3330DB No heat

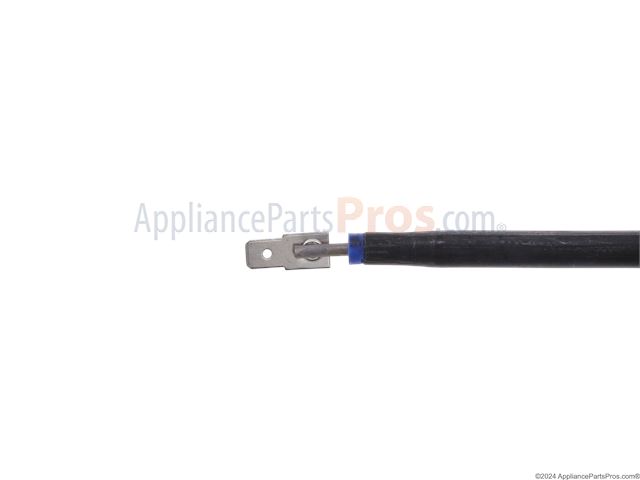

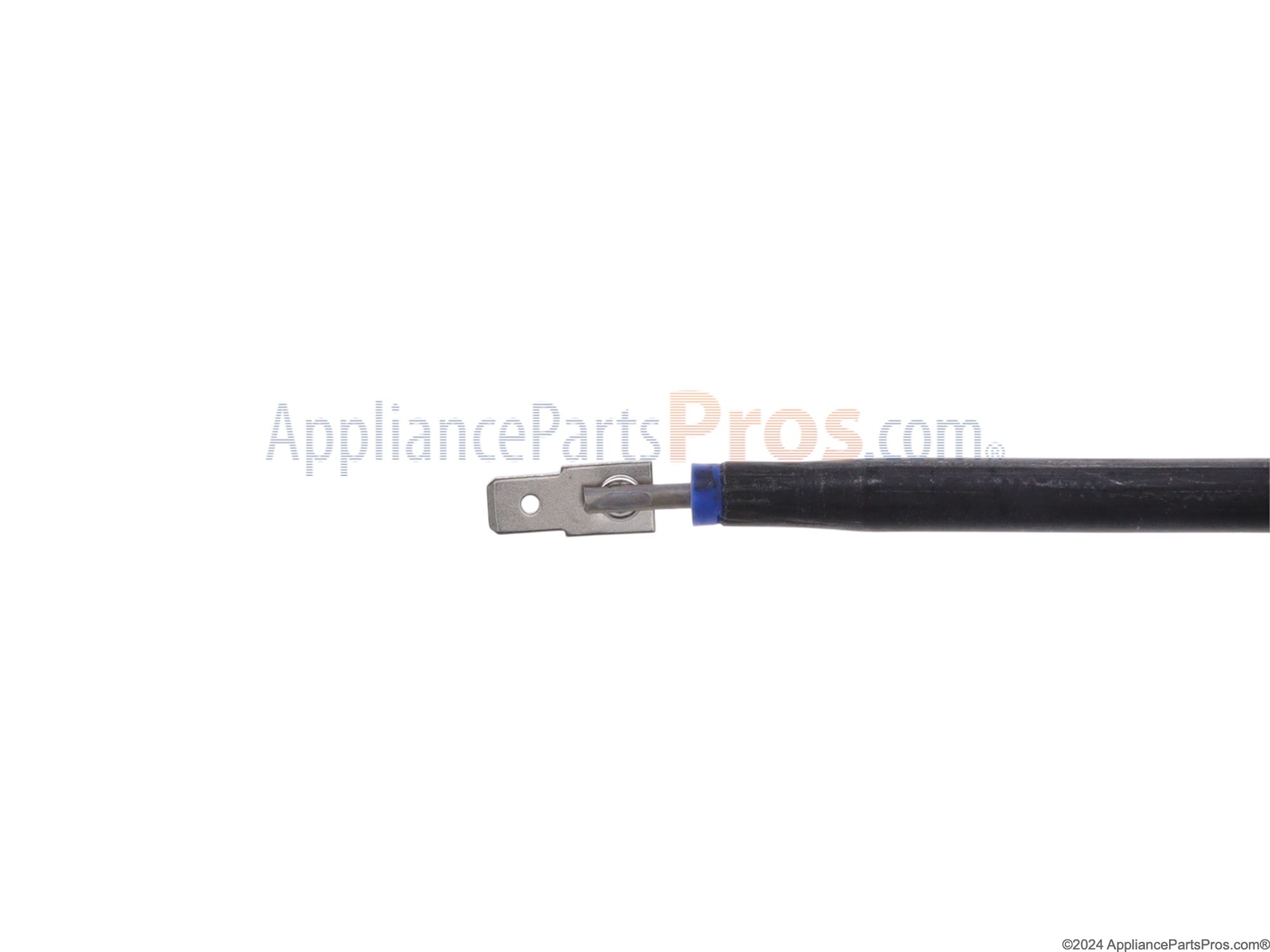

The Oven Bake Element is an OEM part for Whirlpool ovens. This crucial component is responsible for providing the heat necessary for baking. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing your oven to reach the desired cooking temperature. This OEM Replacement Part has push-on terminal ends and measures approximately 23-5/8"wide x 15-3/8" long, with 3-3/8" inserts

Symptoms of a failing oven bake element include:

• Lack of heat production when the oven is turned on
• Uneven baking results
• Visible damage to the element such as blistering or splits
• A trip in the circuit breaker when the oven is activated

Causes of bake element failure typically include thermal stress causing material fatigue, accidental damage during cleaning, and electrical issues such as short circuits.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you are unable to use your old connectors order TJMA02875-1.

The Broil Element is an OEM component for Whirlpool ranges. It is a vital heating component located at the top of the oven cavity that provides intense radiant heat for broiling functions.

Symptoms of a bad Broil Element include:

• Inability to engage broil mode
• Poor or negligible heating from the broiler
• Tripped circuit breakers when trying to broil
• Visible cracks, breaks, or damage to the broil element

Causes of failure can include deterioration over many heating and cooling cycles. Metal fatigue from constant expansion and contraction eventually causes cracking or breakage.

This replacement broil element also fits Maytag, KitchenAid, Jenn-Air, Amana, and some Kenmore models.
