Whirlpool Dryer 3CE2910XSW1 Too hot

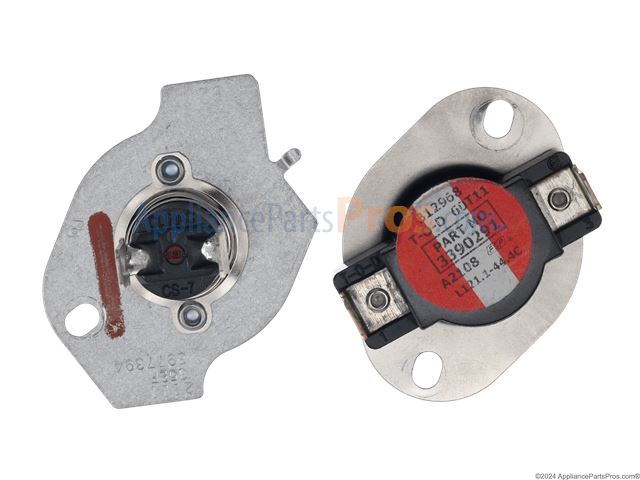

The Thermal Cut-Off Kit is an OEM part for Whirlpool dryers. This safety kit is designed to protect the dryer from overheating by interrupting the heat source when the dryer air temperature reaches dangerously high levels. The kit typically includes one high-limit thermostat and one thermal cut-off fuse. These components are critical for preventing potential fire hazards by ensuring that the dryer operates within safe temperature ranges.

Symptoms of a failing thermal cut-off kit include:

• Dryer not heating up at all, as the thermal fuse may have been triggered
• Excessive heat in the dryer, prior to the fuse being triggered
• Frequent stopping of the dryer during cycles

Causes of thermal cut-off failure often involve restricted airflow (from lint buildup or obstructed vents), component failure within the heating system, or issues with the dryer cycling thermostat that cause abnormal heating.

This OEM part is also compatible with Kenmore, Maytag, KitchenAid, Roper, and other brands manufactured by Whirlpool.

This internal-bias thermostat regulates dryer drum temperature by cycling the heat on and off, helping maintain consistent drying performance and protect against overheating.

• Controls the cycling temperature of the heating circuit to prevent underheating or overheating
• Helps resolve symptoms like no heat, not enough heat, long dry times, or temperature swings
• A faulty thermostat may cause overheating that can trip the thermal fuse
• Located on the blower housing on many models

• Disconnect power and shut off gas (for gas dryers) before servicing
• Access the blower housing; note wire positions and transfer one at a time
• Mount the thermostat flush to the housing for proper sensing
• After installation, run a test cycle to verify proper heating

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.
