Samsung DA63-04198A Refrigerator Dairy Door Cover Assembly OEM Part

Disassembly is a little tricky. First, with a #2 phillips screwdriver, remove the single screw to the left of the ice chute/water dispenser. You'll have to get down low and look up from underneath. Next, underneath on either side, there are little slots with arrows pointing to them. Take a small straight slot screw driver and insert in each slot while gently pulling on the clear ice chute. It will pop out bottom edge first. Keep pulling out and up. The whole screen will pop out. Let it hang by the wire. Next, you'll have to look deep into the assembly.You might need a flashlight. There are two screws. You may have to move some wires out of the way to see them. Use the #2 phillips to remove the two screws. Then, on either side there are little plastic tabs. Use the straight screwdriver to pry the tabs out. It doesn't take much so be gentle not to break them. The whole assembly will come loose. Disconnect the wire plugs and take the unit out. Reassembly is done in reverse.

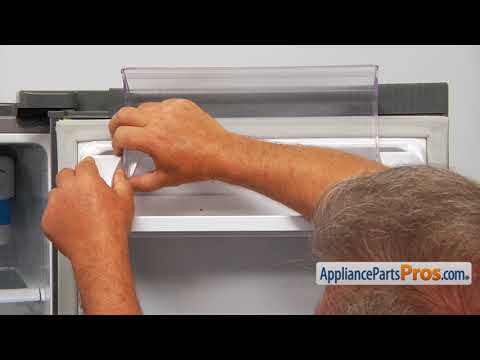

The parts were simple to replace. Took about 5 mins. They just snapped in place. The parts were easy to order and arrived sooner than I expected. Great experience.

Replaced cover.

I ordered the part, 5 days later it showed up and I installed it. Perfect fit!

30 second repair. New part was perfect, came in a few days, price was right.
