Shxm4ay52n Parts

This cutlery basket is the removable lower-rack holder that keeps forks, knives and spoons organized during dishwasher cycles. It helps prevent silverware from shifting and improves spray access for better cleaning. What it does:

• Holds and separates silverware to reduce nesting and improve wash coverage
• Snaps into the lower dishwasher rack to keep utensils upright and contained
• Prevents small items from falling through the rack into the wash tub
• Replaces cracked, broken or missing baskets that allow utensils to move during the cycle

• One cutlery basket

• No special tools typically required; snaps into place on the lower rack
• Ensure rack position is correct and basket is fully seated before running a cycle
• Handle knives and sharp utensils carefully during installation and removal

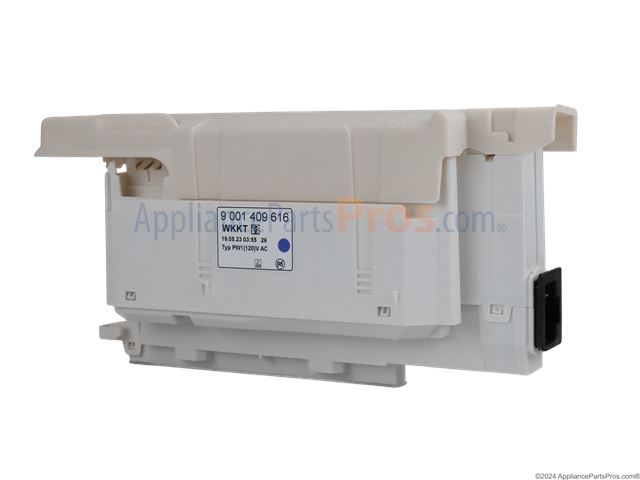

The Power Control Module is an OEM part for Bosch dishwashers. As a key electrical component, the power control module regulates voltage levels and distributes power to wash and drain motors, heating elements, and other systems during cycles. Precise control of components is essential for ensuring thorough, efficient cleaning.

Causes of a power control module failing include defects, exposure to water, or natural deterioration from extended use.

Symptoms of a faulty module are:

• The dishwasher failing to start or switch between cycles
• Lights or displays malfunctioning
• Abnormal noises or vibrations
• Inability to reach proper wash or rinse temperatures

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.


This insulating part restores the factory isolation and protection between components inside your appliance. Replacing a worn or missing insulator helps prevent damage from heat or contact so the unit operates safely as designed. What it does:

• Provides the specified insulation and spacing where installed
• Helps prevent heat transfer, shorting, or abrasion between adjacent parts
• Restores proper fit when the original insulator is cracked, deformed, or missing
• Common signs include discoloration, charring, brittleness, or the old piece crumbling/falling out

• 1 insulating part

• Disconnect power and allow the appliance to cool completely before service; shut off water or gas if applicable
• Note the original orientation and placement; take photos for reference
• Install without over-compressing; ensure it seats flat and does not interfere with nearby parts
• Reassemble, restore power, and test for normal operation

This suspension damper stabilizes the tub/drum by absorbing movement and vibration during operation. Replacing a worn damper helps reduce shaking and noise, improving spin performance and overall machine stability. What it does:

• Absorbs and controls tub/drum movement to reduce vibration and noise
• Helps prevent banging, "walking," or out-of-balance shutdowns during spin
• Can address excessive shaking, rattling, and longer spin times
• Restores smoother, more controlled operation when the original damper is worn

• One suspension damper

• Disconnect power and turn off water supply before servicing
• Access location varies by model; support the tub/drum to relieve load before removal
• Note orientation and reuse existing mounting hardware if new fasteners aren't provided
• After installation, re-level the appliance and run a test cycle to verify stability

This lock clamp is a small retaining clip that secures a component or connection inside the appliance. It keeps parts firmly seated and aligned to help prevent loosening, misalignment, or accidental disconnection during normal operation.

• Locks and retains the associated fitting or component in place
• Maintains a secure, correctly aligned connection
• Helps resist vibration-related movement during use
• If worn, broken, or missing, you may notice a loose connection, rattling, parts separating, or leaks at the joint

• Disconnect power; shut off water supply if the repair involves a water path
• Note the clip's orientation/position before removal (take a quick photo for reference)
• Use needle-nose pliers or a small flat-blade tool to release/install; avoid over-bending
• The component is fully seated and the clip is fully engaged before reassembly

This cable harness routes power and signals between appliance control and components to restore reliable electrical connections. It replaces a damaged or worn harness to help eliminate intermittent operation and connectivity issues. What it does:

• Replaces the main wiring harness that links controls, sensors, and motors for proper electrical communication
• Restores reliable power and signal paths to correct intermittent power, non-responsive controls, or components that won't run
• Ensures secure connector mating to prevent arcing and poor contact
• Matches OEM connector types and wire lengths to fit in the original routing

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Compare the new harness to the old one for connector types and routing before installation
• Handle connectors by the housings; do not pull on wires. Ensure all plugs snap fully into place

This push button set replaces worn or broken control-panel buttons so you can restore button function and appearance on the appliance. Simple, direct replacement for damaged or stuck push-style control buttons. What it does:

• Replaces damaged, cracked, or missing push-style control buttons
• Restores tactile response for panel controls that feel stuck or unresponsive
• Improves appearance of a faded or worn control surface
• Helps recover normal user input when original buttons no longer actuate properly

• One push button set

• Disconnect power to the appliance before starting any repair
• Remove the control panel trim or access panel to reach the button assembly
• Replace buttons carefully; avoid pulling on wiring or the control board
• Reassemble panels and test button operation before finishing

This facia panel is the exterior control-panel face that restores the appliance's front appearance and provides a finished surface for buttons and displays. It replaces cracked, faded, or damaged control-area trim for a clean, factory look. What it does:

• Covers and protects the control-area components and buttons from dirt and damage
• Restores a uniform, finished appearance to the appliance front
• Helps prevent moisture and debris from reaching internal controls
• Common symptom: cracked, scratched, dented, or discolored control-panel surface

• One facia panel

• Disconnect power and water before beginning any repair
• Installation typically requires removing the top/front access panel and a few screws or clips
• Handle trim carefully to avoid scratching the new facia during install

This is a single replacement mounting screw used to secure panels, trim, or components on compatible appliances. It restores proper fit and prevents parts from coming loose or vibrating during operation. What it does

• Secures panels, brackets, or components in place to maintain appliance alignment
• Stops rattling or vibration caused by loose fasteners
• Helps ensure switches, doors, or trims stay properly seated
• Replaces missing or stripped screws to restore original fit

• One replacement screw

• Use the correct driver and size; start threads by hand to avoid cross-threading
• Tighten securely but avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety precautions when accessing internal parts

This lock clamp secures the appliance door latch assembly so the door closes and seals reliably. It replaces a worn or broken clamp to restore proper latch engagement and help prevent door misalignment or failure to stay closed. What it does

• Holds the door latch or interlock assembly in position so the door can securely close
• Helps restore normal door engagement when a loose or damaged clamp causes the door to sag or not latch
• Commonly replaced when the door makes noise, feels loose, or the latch does not align
• Works with the latch housing and nearby mounting hardware to keep the lock mechanism stable

• One lock clamp (single clamp only)

• High-level replacement: usually accessed from the door or control area; remove power before servicing
• Inspect adjacent latch, springs, and mounting screws and replace any damaged parts
• Tighten fasteners to secure the clamp without overtightening or deforming plastic parts

The Dishwasher Handle End Cap is an OEM part for Bosch dishwashers. This part provides a finishing touch to the dishwasher's door handle, covering the ends for a smooth, finished appearance. Over time, these end caps can become lost, damaged, or worn, affecting the overall look and use of the dishwasher.

Symptoms of a bad Dishwasher Handle End Cap include:

• Missing or loose end caps
• Visible damage or wear
• Diffiuculty opening the door

Causes of a bad handle end cap can range from accidental damage during cleaning or use, to natural wear and tear from repeated handling.

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

The Detergent Dispenser is an OEM replacement part for Bosch dishwashers. It is located inside the dishwasher and is responsible for properly delivering detergent at the appropriate time during wash cycles. The detergent dispenser has a compartment that holds detergent tablets or pods, and a mechanism that releases the correct amount to efficiently clean dishes.

Causes of a bad dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process.

Symptoms of a bad detergent dispenser include:

• Detergent not dispensing or residue left in the dispenser
• Dirty dishes due to insufficient or improper detergent delivery
• Corrosion or buildup inside the dispenser area
• Dispenser door or cover cracked or damaged

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Sump is an OEM part for Bosch dishwashers. It is located at the bottom of the dishwasher's tub, responsible for filtering and recirculating water during the wash cycle. The sump is designed to collect and filter out food particles and debris from the water, ensuring that only clean water is circulated throughout the dishwasher. It also houses the circulation pump, which propels the water through the spray arms to effectively clean your dishes.

A bad sump can occur due to clogs, damage, or wear and tear over time. Signs of a faulty sump include poor cleaning performance, water not draining properly, or unusual noises during operation.

Symptoms of a bad sump include:

• Food particles or residue left on dishes
• Water not draining properly
• Unusual noises during operation

Replace your faulty dishwasher sump with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.
