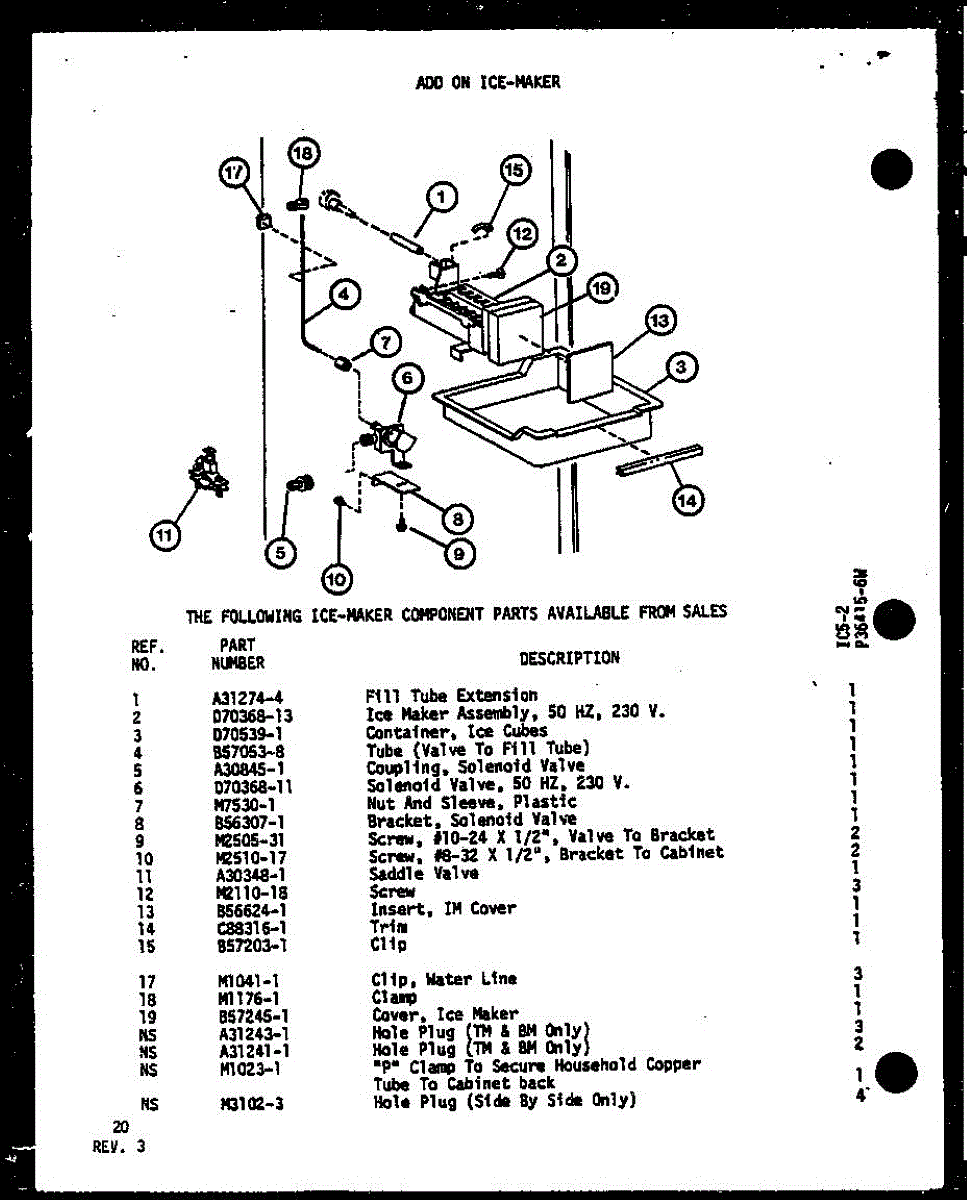

Parts for Amana IC52 / P3641506W: 01 - Add On Ice-Maker Parts

This part has been discontinued by the manufacturer and is no longer available.

This refrigerator ice bucket stores ice made by the icemaker and positions it for dispensing. Replacing a cracked or warped bin restores smooth ice flow and helps prevent jams, spills, and mess inside the freezer.

• Holds and contains ice cubes in the freezer for easy access and dispensing
• Interfaces with the auger/crusher assembly in dispenser-equipped models
• Helps correct issues like ice jamming or inconsistent dispensing caused by a damaged bin
• Addresses visible damage such as cracks, chips, warping, or a bucket that won't seat properly
• Can reduce stray ice or moisture under/around the bin when the original is compromised

• Unplug the refrigerator and turn off the icemaker/water supply before starting
• Remove the old bin; transfer any auger/crusher components from the original if your model uses them
• Seat the new bucket fully so it latches/aligns correctly with the drive
• Restore power and verify proper dispensing operation

Ice maker water line: 1/4x 8ft.

Size: 1/4 inch. Nut for plastic water line.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This part has been discontinued by the manufacturer and is no longer available.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs
