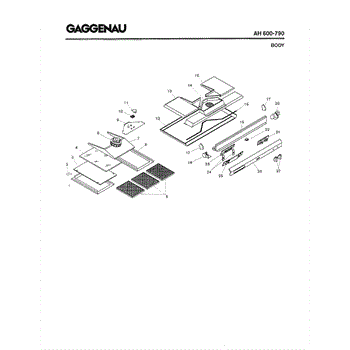

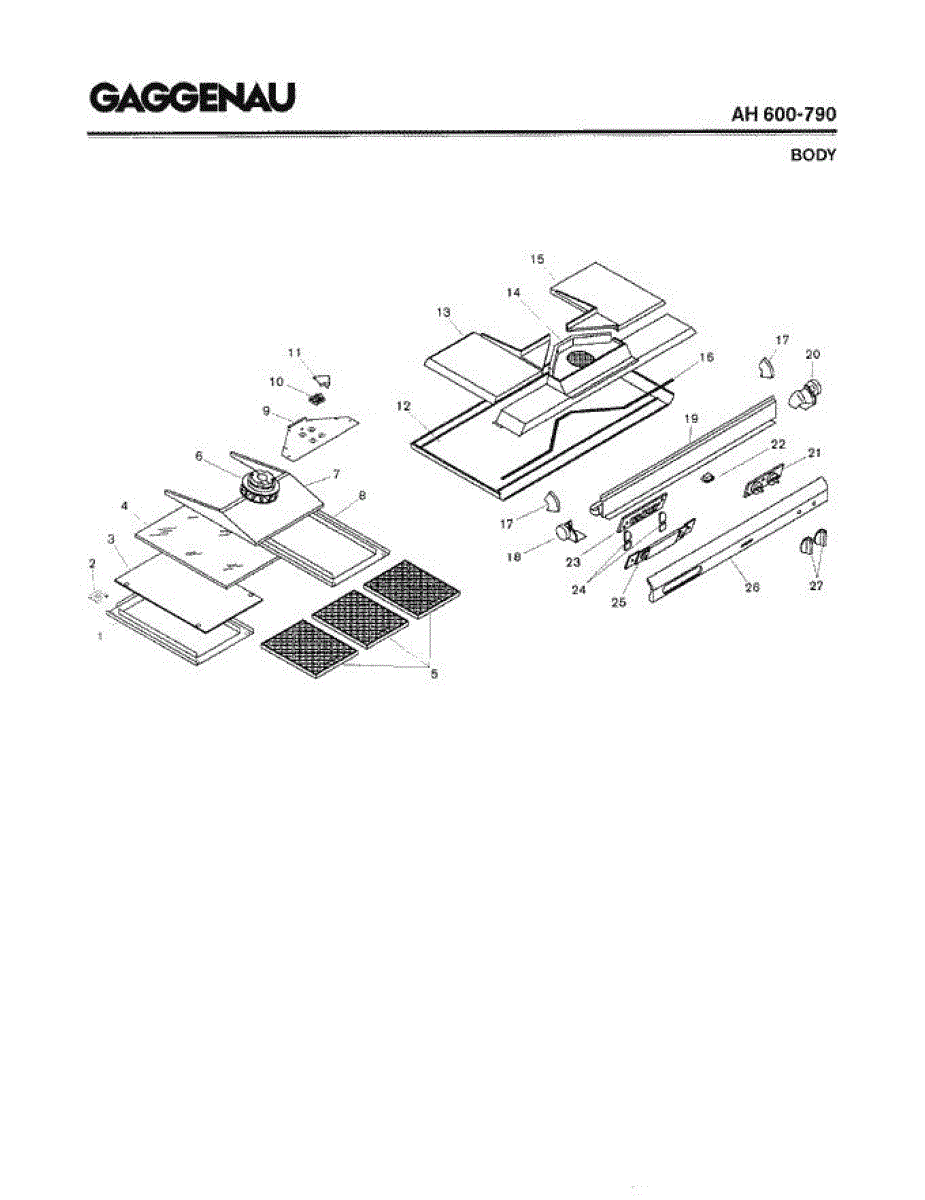

Parts for Gaggenau AH600-790: 01 - Body Parts

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This selector switch module is the electromechanical control that lets your appliance register and change user-selected cycle settings. Replacing a worn switch restores reliable selection and communication between the control panel and the appliance. What it does

• Selects the user-chosen cycle or function when you turn or press the control dial
• Sends the appropriate signal to the appliance control so the chosen program can start
• Common symptom: control knob turns but the appliance does not change settings
• Common symptom: intermittent or no response from the control dial

• One selector switch module

• Disconnect power (unplug or switch off breaker) before beginning any repair
• Access usually requires removing the control panel or console; keep track of screws and fasteners
• Carefully unplug electrical connectors and note their orientation before removing the old switch
• Test operation after installation and reassemble the control panel securely

This electronic operating module controls the appliance's functions and user interface, restoring proper cycle selection and timing when the control electronics fail. Replaces a faulty control board to get the appliance responding and running correctly. What it does:

• Manages cycle selection, timing, and user commands for the appliance's electronic control system
• Processes inputs from buttons, dials, and sensors so selected functions run as intended
• Can resolve symptoms such as unresponsive controls, incorrect cycles, or appliances that won't start
• Works with the appliance's display and relays to trigger heaters, pumps, and motors when commanded

• One operating module (control board) as shown

• Disconnect power (unplug or switch off circuit breaker) before beginning any work
• Handle the board by the edges and avoid touching connector pins or circuitry
• Verify connectors and wiring harnesses are fully seated; match connector locations before reassembly

This replacement control knob restores tactile control for a range of Bosch appliances, letting you easily select and adjust settings when the original knob is broken, cracked, or missing. Simple, direct replacement for one worn dial. What it does

• Provides a secure grip to turn appliance controls and select settings
• Replaces knobs that are cracked, stripped, loose, or no longer grip the control shaft
• Restores accurate user input when the original knob won't stay set or spins freely
• Fits as a direct-form replacement; matches the original look and feel

• Disconnect power to the appliance before servicing to avoid injury
• Most knobs pull straight off the control shaft; gently pull while steadying the shaft
• Align internal splines with the shaft and push fully on until seated
• If knob is tight or stuck, protect finish with a cloth and use steady, even pressure.
