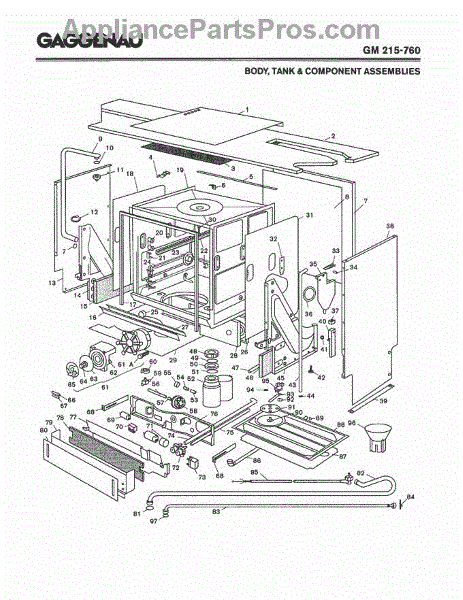

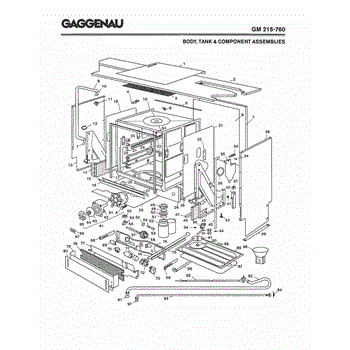

Parts for Gaggenau GM215-760: 01 - Body, Tank & Component Assemblies Parts

This door latch is the latch/lock assembly that secures the appliance door and completes the safety interlock so cycles can start. It restores proper door closure and helps the unit detect a closed door. What it does:

• Secures the door in the closed position so the appliance can operate
• Engages the door interlock so the control recognizes a closed door
• Commonly used when the door will not stay closed, or cycles won't start due to a faulty latch
• Helps prevent leaks by holding the door tightly against the gasket

• Disconnect power before starting any repair to avoid shock or injury
• Inspect door strike and latch alignment; replace or realign as needed
• Basic hand tools are typically required; handle the door carefully to avoid damage
• After installation, verify the door latches securely and the appliance starts normally

This upper orifice is the replacement gas jet that meters fuel to the oven's upper/broil burner, restoring correct burner flow and flame shape for reliable cooking performance. Ideal for worn, clogged, or damaged orifices. What it does:

• Controls the gas flow to the oven's upper/broil burner for proper flame size and heat output
• Replaces a cracked, corroded, or clogged orifice that can cause weak or uneven flames
• Helps resolve symptoms like burner that won't light, low flame, or irregular burning
• Matches OEM form and fit to maintain safe burner operation when correctly installed

• One upper orifice (quantity: 1)

• Shut off the appliance and gas supply before servicing; follow all safety procedures
• Inspect nearby fittings and seals; use correct thread engagement and torque when installing
• After installation, check for gas leaks and proper ignition/combustion before normal use

Gasket creates an airtight seal to prevent leaks. Replace if cracked, brittle, or causing leaks. Verify fit with your model number before ordering.

Dishwasher tub gasket seals the tub to prevent leaks. Replace if you notice water pooling under the unit or visible wear. Confirm fit with your model number.

Holder component for securing internal parts in place. Replace if cracked, broken, or missing to restore proper fitment and structural support.

Rack support rail that mounts inside the appliance cavity to hold and guide racks. Replace if cracked, bent, or broken to restore proper rack support.

This is a direct-replacement heating element designed to restore normal heat output when an appliance's original element has failed. It installs in the appliance's heating assembly to deliver consistent, reliable heating performance. What it does:

• Heats the appliance's air or cavity to enable normal operation
• Commonly replaced when an appliance fails to reach temperature or stops heating
• Restores functionality after visible damage, burning, or electrical failure of the original element
• Works as the OEM-specified element for the GM 215/286 heating assembly

• One heating element

• Turn off power to the appliance at the breaker and verify the unit is de-energized before beginning work
• Handle the element carefully to avoid bending or nicking the heating coil; damaged coils will fail prematurely
• Inspect and replace any damaged terminals, insulation, or mounting hardware during installation

This replacement overflow cap seals the overflow housing to help prevent water from bypassing the drain system. A simple, low-cost part that restores the proper overflow seal and reduces risk of leaks. What it does:

• Seals the overflow opening to stop water from escaping the appliance base
• Helps maintain correct water flow through the drain/overflow assembly
• Commonly replaced when you see water pooling under the appliance
• Can eliminate intermittent leaking around the pump/overflow area

• One overflow cap

• Disconnect power and shut off water supply before starting any repair
• Remove retaining clips or screws carefully; avoid bending plastic housings

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This ring nut secures the dishwasher water-softener assembly and its housing, helping maintain a sealed connection to reduce leaks and keep the softener working as intended. Durable plastic construction resists corrosion in wet areas. What it does:

• Holds the water-softener housing or cartridge in place to maintain a proper seal
• Helps prevent water leaks around the softener assembly
• Supports correct flow through the softener so the appliance can manage hard water
• Common symptom: visible leaks or loose softener housing after wash cycles

• Disconnect power and shut off the water supply before servicing the appliance
• Replace only with the exact matching part to ensure proper fit and seal
• Inspect surrounding seals and housings; replace any damaged components to prevent leaks

This spring-style hose clamp secures flexible water hoses and drain lines to fittings to help prevent leaks and maintain proper connections. It's a simple replacement for worn or weakened clamps to restore a tight hose seal. What it does

• Applies even spring tension around a hose to hold it firmly on a barbed fitting
• Helps stop common symptoms like leaking at hose connections or loose hoses during operation
• Restores proper hose seating after corrosion, deformation, or loss of clamping force

• One spring-style hose clamp

• Use pliers designed for spring clamps to expand the clamp, then slide into position and release carefully
• Inspect the hose and fitting for damage; replace hose if cracked, brittle, or badly deformed
• Disconnect power and water supply before servicing to avoid electrical shock or flooding
• Dispose of the old clamp and any damaged hose pieces safely

Gasket seals connections to prevent leaks. Replace if worn, cracked, or leaking. Verify fit with your model number before ordering.

Is your refrigerator not dispensing water or ice? A faulty dual water inlet valve often causes this issue. This valve controls water flow to both systems.

This start relay (GM-215) helps the compressor start reliably by routing power to the start winding when the fridge or freezer cycles on. Replacing a worn relay restores normal start behavior and can stop clicking or failure-to-start symptoms. What it does:

• Sends power to the compressor start winding during motor startup
• Drops out once the compressor reaches running speed
• Commonly linked to clicking noises, hard starts, or a compressor that won't run
• Works as the electrical switching component in the compressor start circuit

• Disconnect power before inspecting or replacing the relay to avoid electrical shock
• Handle connectors gently; ensure tight, corrosion-free terminal connections
• Verify correct relay seating on the compressor terminals per service manual

This toe kick cover is the lower front panel that finishes the base of the appliance and protects internal components from debris while improving the unit's appearance. It replaces a damaged, dented, or missing toe kick. What it does:

• Covers the appliance's lower front opening to keep out dirt, dust, and small objects
• Restores the appliance's finished look when the original panel is bent, cracked, or missing
• Helps maintain proper airflow and access to service area behind the kick plate
• Fits into the factory mounting points for a clean, secure fit

• One toe kick cover

• Disconnect power to the appliance before removing panels or accessing lower areas
• Typically installs by aligning tabs and securing with the factory screws or clips; retain original fasteners if present
• If replacing a damaged panel, keep removed fasteners and check for any bent mounting tabs before installing the new cover

This part has been discontinued by the manufacturer and is no longer available.
