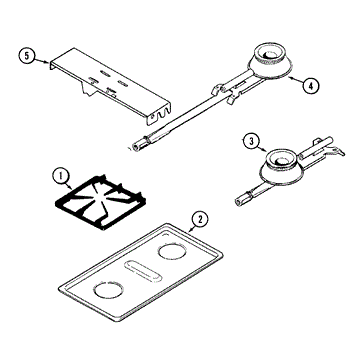

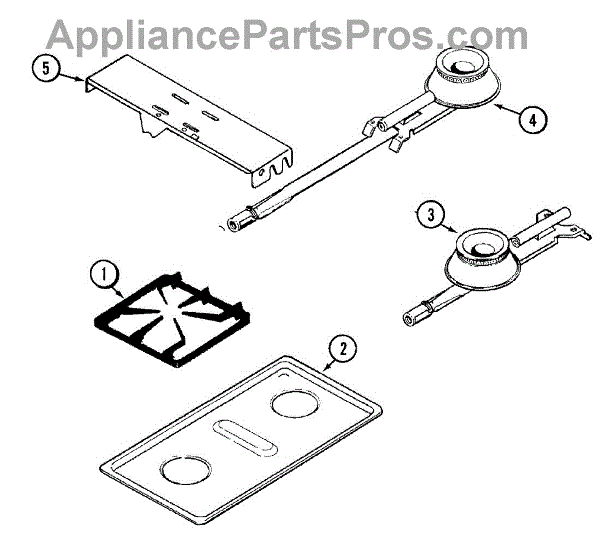

Parts for Maytag CAG1000AAB: 01 - Cartridge, 2 Burner Parts

Color: Black.

Color: black. It measures about 11-1/2 inches wide by 20 inches deep.

This surface burner head redistributes gas from the orifice to create an even flame on your range or cooktop. Replacing a clogged or damaged head helps restore reliable ignition and consistent heat for everyday cooking.

• Channels gas to the burner ports for a uniform flame pattern
• Works with the igniter/spark electrode to light the burner
• Can help resolve weak, yellow, or uneven flames caused by blockage or wear
• Common symptoms: burner won't light, takes multiple clicks to ignite, or flames that sputter/go out

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove grate and burner cap, then lift off the old head
• Clean the orifice area; seat the new head squarely on the orifice
• Reassemble and test ignition and flame; check for leaks if any connections were disturbed

Replace a clogged or damaged rear burner with this surface burner head in black. It channels gas to the flame ports so the rear burner lights reliably and delivers a consistent, even flame for everyday cooking.

• Directs gas through precisely sized ports to form the rear burner flame pattern
• Interfaces with the spark igniter/electrode for dependable ignition
• Helps restore proper burner performance when ports are worn, corroded, or blocked
• Common symptoms: burner clicks but won't light, uneven or weak flame, yellow tipping, delayed ignition

• Shut off gas supply and disconnect power before servicing
• Remove grate and burner cap; take out mounting screws and lift the old burner head straight up over the igniter
• Align the new head over the orifice and igniter; secure with the existing screws
• Reassemble and test for proper ignition and flame on all burners

This replacement mounting bracket secures internal components and panels so parts stay aligned and stable during operation. It restores proper fit and reduces rattling or loose panels for safer, quieter performance. What it does

• Provides a secure mounting point for appliance panels or components.
• Restores alignment to panels or assemblies that have become loose or shifted.
• Helps eliminate rattling, vibration noise, or intermittent contact caused by a loose bracket.
• Used when existing bracket is cracked, bent, or missing.

• Disconnect power (and gas if applicable) before beginning any repairs.
• Use common hand tools; support panels while removing fasteners to prevent damage.
• Handle edges carefully to avoid cuts; wear gloves if needed.
