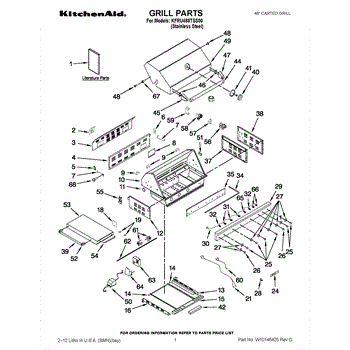

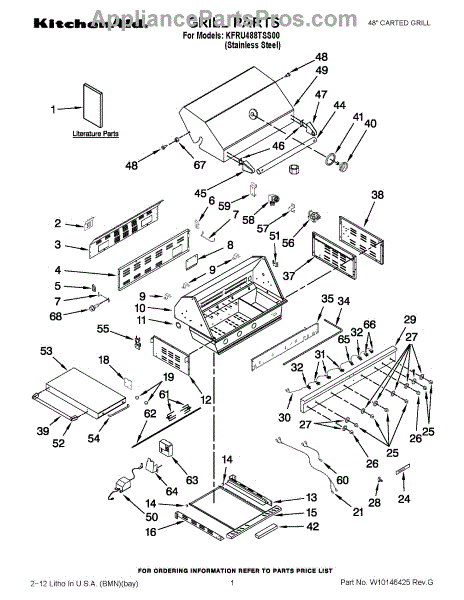

Parts for Kitchenaid KFRU488TSS00: 01 - Grill Parts

Replacement control knob that restores smooth, easy operation to a damaged, worn, or missing control knob. Simple push-on fit provides a secure grip for selecting settings and returns the control panel to a finished appearance. What it does

• Fits onto the appliance control shaft so you can turn and set functions reliably.
• Replaces cracked, stripped, chipped, or missing knobs that are hard to grip or won't turn.
• Restores tactile feel and clear position selection for safe, predictable control.
• Works as a direct-fit user control component—no internal parts required.

• Always disconnect power (unplug or switch off breaker) before replacing control components.
• Confirm control is in the OFF position, then align the knob with the control shaft and push on straight until fully seated.
• Do not force or hammer the knob onto the shaft; check for correct alignment of flats or splines.
• After installation, restore power and verify proper function before normal use.

This control panel is the user interface console that houses the oven/range touchpads, display and key switches, restoring clear controls and visibility for cooking functions. It provides a direct replacement for a worn or unresponsive console. What it does

• Replaces the front console and touchpad area so buttons and display respond properly.
• Restores visible clock/timer and oven status when the original panel is faded, cracked, or damaged.
• Helps resolve symptoms like non-working buttons, intermittent or blank display, or unregistered key presses.
• Works with the range/oven's electronic controls to select bake, broil, timers and other functions.

• One control panel (console assembly).

• Disconnect power at the breaker or unplug the appliance before starting.
• Handle the assembly and any attached ribbon cables gently to avoid bending pins or damage.
• Keep moisture away from electronic components; do not soak the panel or PCB.

This replacement wire harness routes electrical connections between components to restore reliable power and signal flow. Use it to replace damaged, frayed, or burnt wiring and reduce intermittent or no-power symptoms in the appliance. What it does:

• Connects control board, switches, sensors and/or motors to provide proper electrical paths
• Restores conductivity when original wiring is damaged, loose, or corroded
• Helps eliminate intermittent operation, no-start, or specific function failures caused by wiring faults
• Maintains OEM routing and connector fit for secure, vibration-resistant connections

• Disconnect and lock out power before accessing the appliance to avoid shock or injury
• Verify exact routing and connector orientation against the appliance wiring diagram during install
• Avoid sharp bends or pinching; secure harness with existing clips or ties to prevent wear

This main valve assembly replaces the appliance's factory valve to restore proper flow control and reliable operation. A direct-fit service part designed to resolve supply and flow issues caused by a failing valve. What it does:

• Regulates the supply flow into the appliance so systems operate correctly
• Commonly replaces valves that fail to open or close reliably
• Helps stop intermittent supply interruptions or poor performance
• Can eliminate valve-related leaks or visible drips when faulty

• Turn off electrical power and shut off the water/gas supply before starting work
• Use appropriate tools and check fittings for leaks after installation

This regulator controls the gas pressure supplied to the oven/range burner assembly to help maintain consistent flame and proper cooking temperatures. Replacing a worn regulator restores reliable ignition and steadier burner performance. What it does:

• Regulates gas pressure to the oven/range burner system so burners maintain consistent flame height
• Helps ensure reliable ignition and steady cooking temperatures
• Commonly linked to low or uneven flames, slow or failed ignition, and poor oven heating
• Works as part of the gas delivery system between the supply line and valve assembly

• One regulator

• Turn off gas supply and electrical power to the appliance before starting work
• Replace only with the exact OEM part; verify fit and orientation before final connections
• After installation, check all gas fittings for leaks with a soap solution or approved leak detector

This main valve assembly replaces the appliance's factory valve to restore proper flow control and reliable operation. A direct-fit service part designed to resolve supply and flow issues caused by a failing valve. What it does:

• Regulates the supply flow into the appliance so systems operate correctly
• Commonly replaces valves that fail to open or close reliably
• Helps stop intermittent supply interruptions or poor performance
• Can eliminate valve-related leaks or visible drips when faulty

• Turn off electrical power and shut off the water/gas supply before starting work
• Use appropriate tools and check fittings for leaks after installation
