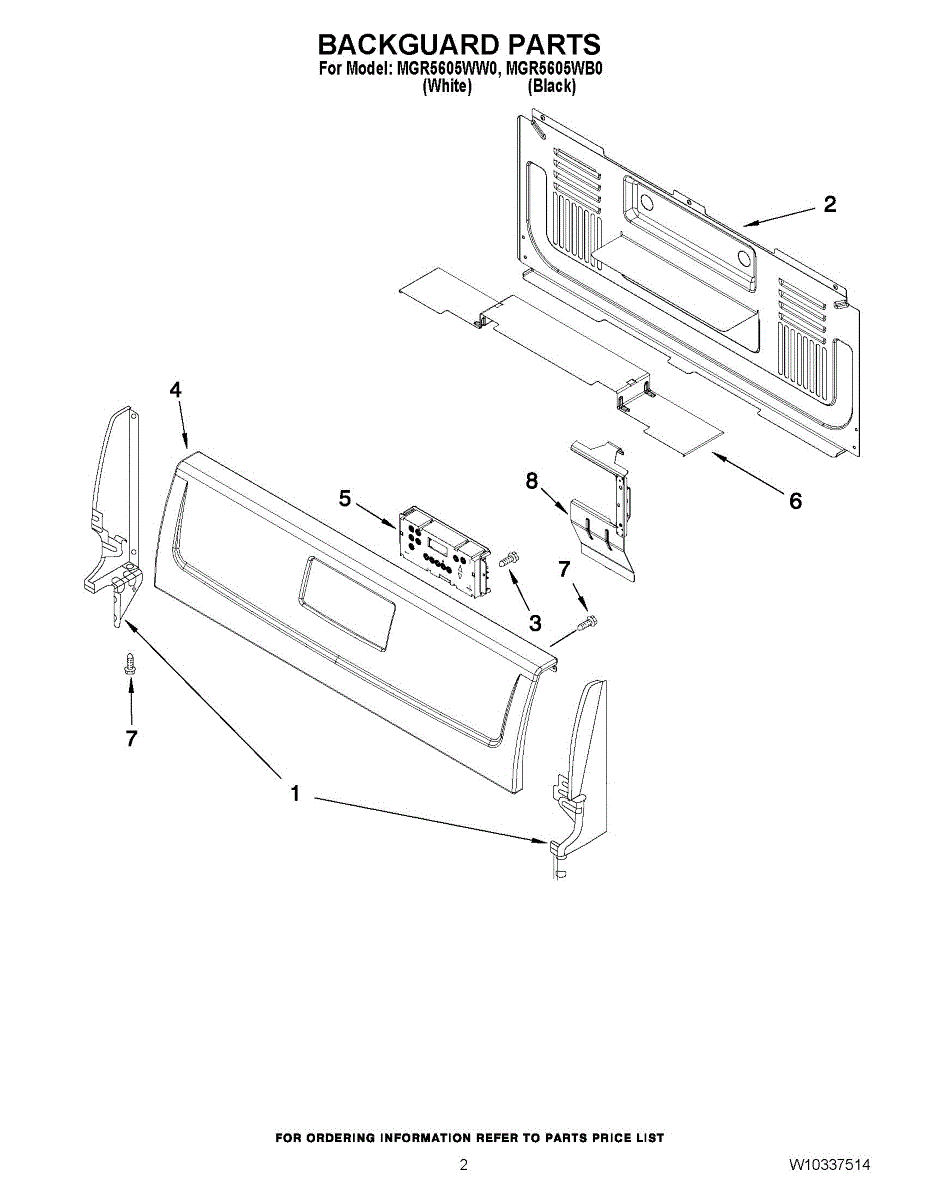

Parts for Maytag MGR5605WB0: 02 - Backguard Parts

Color: Black. Left hand side. For right hand use 98004633. For biscuit use 98008274. For white use 98005336.

Color: Black. Right hand side. For left hand use 98004632. For biscuit use 98008275. For white use 98005337.

Color: White. Left hand side. For right hand use 98005337. For biscuit use 98008274. For black use 98004632.

Color: White. Right hand side. For left hand use 98005336. For black use 98004633. For biscuit use 98008275.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This electronic control board is the dishwasher's central controller. It manages cycle timing and powers key loads so the machine fills, washes, drains, and dries correctly, restoring reliable operation when the original board fails.

• Coordinates water fill, wash circulation, drain, and heating functions according to the selected cycle
• Monitors door switch, sensors, and keypad inputs to advance through cycles
• Sends power/control signals to pumps, valve, and heater
• Common failure symptoms: won't start, unresponsive controls, stops mid-cycle, won't advance, blinking lights/error codes

• Disconnect power before service; use ESD protection when handling the board
• Document wire locations; move connectors one at a time and ensure locking tabs are fully seated
• Transfer any model-specific jumpers or mounting hardware from the original board if applicable
• After installation, restore power and run the unit's diagnostic/reset procedure per the service manual if needed

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Right hand side. For left hand use 98018144

Left hand side. For right hand use 98018143.
