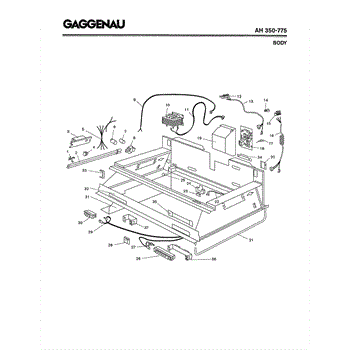

Parts for Gaggenau AH350-775: 02 - Body Parts

This replacement light socket secures the appliance lamp and provides the electrical connection the bulb needs to illuminate the interior. It restores a loose, damaged, or non-contact lamp mount so the light works reliably. What it does:

• Holds the light bulb in place and provides the electrical contact for the lamp
• Restores a lamp that sits loosely, fails to make contact, or flickers
• Helps re-establish interior illumination when the socket is cracked, burnt, or broken
• Works with the appropriate OEM bulb and wiring to ensure correct operation

• One light socket / lamp holder (single)

• Disconnect power to the appliance before servicing to avoid shock
• Handle the bulb and socket carefully; wear gloves and eye protection as needed
• Verify correct bulb type/wattage and proper wiring connections per the appliance manual

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

This is a replacement fluorescent lamp starter designed for use with 80W, 240V fixtures. It helps the lamp reach full brightness reliably so lighting cycles start and run normally. What it does:

• Provides the initial pulse to ignite fluorescent tubes in compatible fixtures
• Commonly restores lamps that fail to start or take multiple strikes to light
• Can stop or reduce continuous flickering or rapid flashing at startup
• Works with starter-type ballasts specified for 80W / 240V operation

• Disconnect power to the fixture before servicing to avoid shock
• Typically replaces a plug-in starter in the fixture's starter holder—pull old starter straight out and push the new starter into place
• Confirm fixture voltage and lamp wattage match the starter specifications before installing

This right-side wire harness routes power and signals to the appliance door area, restoring electrical connections for controls and door components. It replaces a damaged or worn harness to help restore reliable operation and communication. What it does

• Carries power and control signals between the main wiring bundle and door-mounted parts
• Re-establishes connections for door switches, lights, or control interfaces when the original harness is broken
• Can stop intermittent faults, loss of power to door functions, or errors caused by frayed wires or loose connectors
• Matches OEM routing and connector ends to maintain proper fit and electrical continuity

• One right-side wire harness

• Disconnect power (and water, if applicable) before starting work to avoid shock
• Handle connectors carefully; match connector shapes and routing to the service diagram
• Secure harness with existing clips or ties and avoid pinching when closing the door panel
• Test door functions and any affected controls after installation

This wire harness connects an appliance's control transformer to the wiring harness, restoring reliable electrical connections and signal routing. Replacing a damaged harness helps resolve power-transfer issues and intermittent control operation. What it does:

• Carries transformer output to the control circuitry so the appliance receives the correct low-voltage supply
• Replaces frayed or damaged wiring that can cause intermittent operation or loss of control functions
• Restores secure connector mating to prevent arcing, sparking, or voltage drop
• Helps eliminate symptoms like no control power, flickering displays, or random resets

• One wire harness

• Always disconnect power to the appliance before starting work to avoid electrical shock
• Handle connectors gently; ensure full seating and correct orientation during reassembly
• Route harness away from hot components and sharp edges; secure with existing clips or ties

This 4-wire plug is the replacement power cord connector used on compatible Bosch electric appliances. It provides a secure, grounded connection so the appliance receives safe, reliable power during operation. What it does

• Connects the appliance power cord to the appliance wiring using four conductors (including ground) for a safe electrical connection.
• Restores a loose, damaged, or burned cord connection that can cause intermittent power or failure to operate.
• Helps prevent arcing or overheating at the cord-to-appliance junction when properly installed.
• Matches the OEM wiring termination style for straightforward replacement.

• Disconnect all power at the breaker or unplug the appliance before starting work.
• Confirm wire color and terminal placement match the original before reconnecting.
• Use appropriate tools and tighten terminals securely; frayed or damaged wires should be replaced.

This 3-pin harness connects three appliance circuits to a component, restoring a secure, color-coded electrical link for reliable operation. Use it to replace damaged, corroded, or loose wiring connections. What it does:

• Provides a secure three-wire electrical connection between appliance wiring and a component
• Restores proper continuity when original connector is cracked, burned, or has loose terminals
• Helps eliminate intermittent power, component failures, or electrical arcing caused by damaged connectors
• Matches wire color/terminal arrangement for straightforward replacement

• Disconnect power to the appliance before starting any repair
• Verify wire colors and terminal positions match the original connector before cutting or mating
• Use proper crimping or secure push-fit technique; ensure terminals are fully seated
• If corrosion or wire damage extends beyond the connector, replace or repair affected wiring as needed

This small plastic cable clamp secures a wire harness or electrical cable to the appliance chassis, keeping wiring routed and protected to reduce wear and movement. It helps maintain reliable electrical connections and prevents chafing. What it does

• Holds and routes wiring to keep harnesses from shifting during operation
• Reduces cable abrasion and contact with sharp edges or hot surfaces
• Helps prevent intermittent electrical issues caused by loose or pinched wires
• Replaces broken, cracked, or missing retainers that no longer secure cables

• Disconnect power before accessing wiring or performing any repair
• Inspect surrounding wiring and insulation for damage; replace any frayed wires
• Snap the clamp into the chassis slot and seat the harness fully in the clamp
• Do not force cracked or deformed retainers; replace with a matching part
