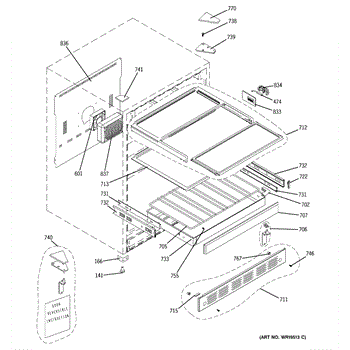

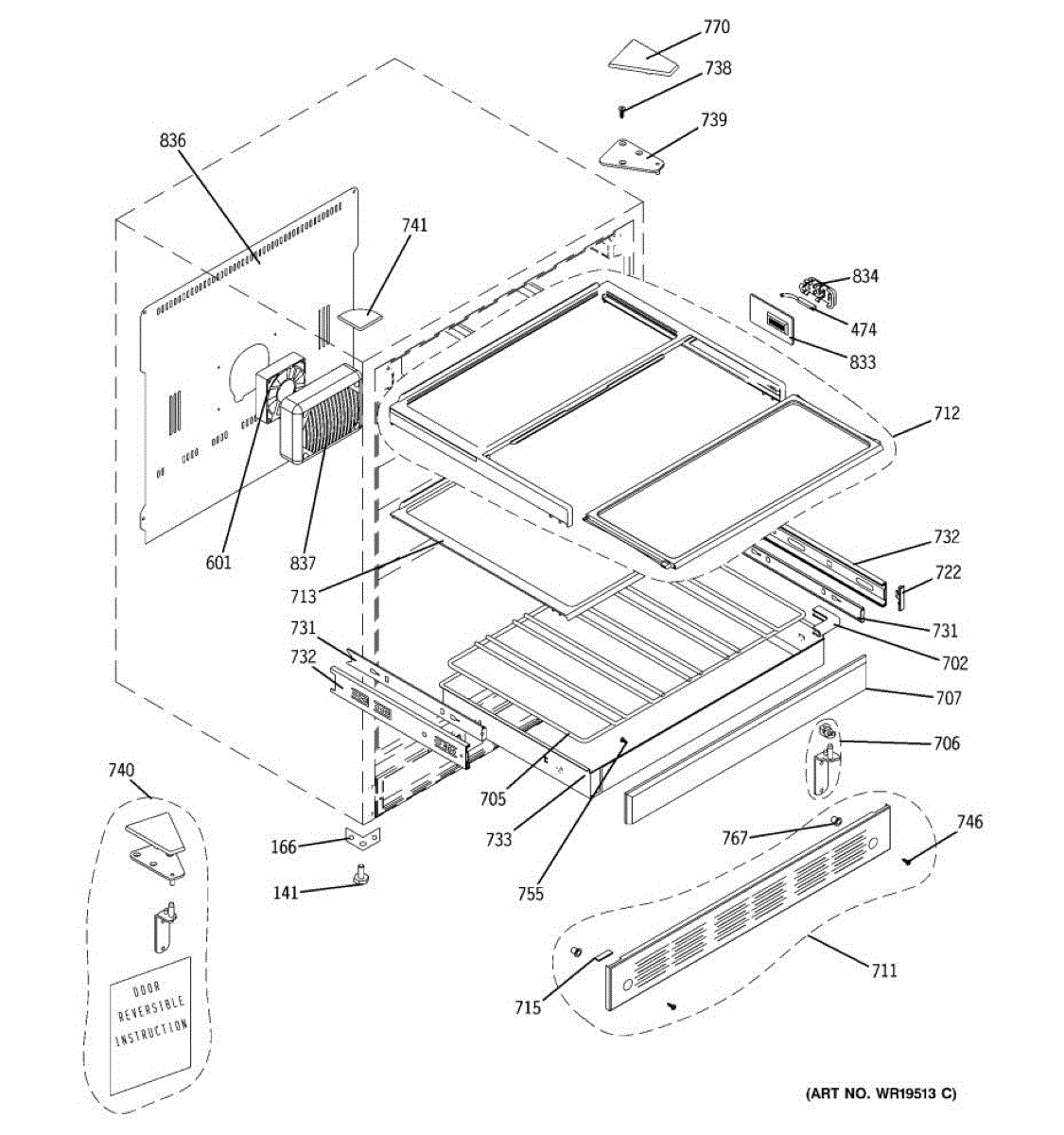

Parts for Ge ZDBR240PABS: 02 - Cabinet & Shelves Parts

This temperature sensor (thermistor) senses cabinet/evaporator temperature so the control can maintain proper cooling. Replaces a failed sensor to help restore accurate temperature readings and stable refrigerator operation. What it does:

• Measures internal temperature and sends readings to the control board
• Helps control compressor and fan cycling for consistent cooling
• Commonly associated with refrigerators that run continuously, cool inconsistently, or show incorrect temperature
• Can affect defrost cycles if the evaporator reading is incorrect

• Disconnect power before accessing components to avoid electrical shock
• Handle the sensor and lead carefully; avoid kinking or sharp bends in the wire
• Ensure the connector is fully seated and any mounting clip is snug but not overtightened
• Some models require removing interior panels or the evaporator cover for access

This short bottle rack replaces a broken or cracked door-mounted bottle holder to keep bottles and tall items organized and secure on the refrigerator door. Durable replacement that restores proper door storage and prevents bottles from tipping or sliding. What it does:

• Replaces damaged or missing short bottle rack on the refrigerator door
• Secures bottles, beverage containers and tall items so they stay upright during door use
• Prevents items from sliding or falling when the door is opened or closed
• Helps restore organized, usable door storage

• One short bottle rack

• Remove all items from the door shelf area before beginning
• Inspect door rail/clips and mounting points; align rack and press or fasten into place per original mounting method
• If clips or fasteners are damaged, replace them before installing the rack
• Refer to the refrigerator's service or owner's manual for model-specific installation guidance and safety precautions

This hinge and cam riser assembly replaces the upper hinge support that helps properly position and pivot the refrigerator door for smooth opening and a correct seal. It restores door alignment and stable hinge operation. What it does:

• Supports the top door hinge and provides the cam surface the hinge pin rides on
• Restores proper door alignment and helps prevent door sag or uneven gaps
• Reduces rubbing, binding, or noisy hinge movement caused by a worn riser
• Helps the door close fully so the gasket can seal properly

• One hinge and cam riser assembly

• Disconnect power or follow appliance safety guidance; support or brace the door before removing the hinge
• Loosen and remove top hinge fasteners to replace the riser; keep hardware for reinstallation
• Verify correct orientation and alignment before fully tightening fasteners; do not overtighten

This is a replacement glass shelf designed for compatible refrigerators to restore a flat, stable storage surface and keep items organized. Replaces a cracked, chipped, or missing shelf to help maintain usable interior space. What it does:

• Provides a stable, flat surface for storing food and containers
• Helps contain spills and keeps items organized on a dedicated shelf level
• Restores proper spacing and usable storage when an existing shelf is damaged or missing
• Matches OEM fit and form for intended refrigerator shelf supports

• One (1) glass shelf

• Remove all items from the refrigerator before installing the shelf
• Slide shelf into the existing support rails or brackets until seated; do not force
• Handle the glass with care and wear cut-resistant gloves to avoid injury
• Replace damaged shelf clips or supports to ensure a secure fit

This front guide helps align and support a refrigerator drawer, restoring smooth opening and stable positioning. It replaces a worn or damaged guide to reduce sticking, slipping, or drawer misalignment for reliable daily use. What it does:

• Holds the front edge of the drawer in place and keeps the drawer track aligned
• Guides the drawer during opening and closing for smoother travel
• Prevents the drawer from binding, catching, or falling out of the track
• Helps reduce noise and uneven operation caused by a damaged guide

• Disconnect power to the appliance before beginning any service
• Remove the drawer and existing guide per the appliance service instructions
• Install the new guide in the same orientation; secure with the original fasteners or clips
• Test drawer movement after installation; do not force components or overtighten fasteners

This short frame guide helps support and guide the refrigerator drawer or bin for smooth opening and stable operation. It replaces a worn or broken guide to restore proper alignment and reduce drawer sticking or wobble. What it does:

• Guides and supports the drawer/bin along its track for consistent movement
• Helps prevent drawer misalignment, binding, and uneven wear
• Restores secure seating and reduces rattling or shifting during use
• Works as the short/secondary guide where appliances use paired guides

• Disconnect power to the appliance before servicing to avoid shock or injury
• Typical installation requires removing the drawer/bin and fastening the guide with original screws or clips
• Retain and reuse any original hardware unless replacement is explicitly supplied

This right-side upper door hinge secures the refrigerator door at the top and helps it swing smoothly while keeping alignment. A direct-fit hinge designed to restore proper door operation and prevent sagging or gaps that let cold air escape. What it does:

• Provides a durable pivot point for the refrigerator door to open and close reliably
• Restores correct door alignment to prevent rubbing, uneven sealing, or floor contact
• Helps maintain a tight door seal to preserve internal temperature and efficiency
• Replaces worn or damaged hinge that causes door sag, binding, or noisy operation

• One upper hinge, right side

• Disconnect power and empty door contents before starting
• Retain original mounting hardware if undamaged; replace hardware only if explicitly supplied
• Support the door while removing/installing the hinge to prevent injury or damage
• Check door alignment and seal after installation; adjust per manufacturer instructions

This reverse door hinge kit lets you change the swing direction of a compatible refrigerator door, restoring proper alignment and sealing after a hinge-side change. It's a direct replacement designed for straightforward door reversal. What it does:

• Reverses the door swing so the door opens from the opposite side
• Restores proper door alignment and helps seal the gasket for consistent cooling
• Replaces worn or bent hinge components that cause sagging or sticking
• Useful when relocating the refrigerator or changing kitchen layout

• Disconnect power and remove food from door area before starting
• Follow the refrigerator's service manual for hinge removal and reinstallation steps
• Use appropriate tools and support the door while removing/installing hinges to avoid injury or damage
• If screws or trim pieces are missing from the kit, verify kit contents against the appliance parts list before installation

This hinge fill plug covers and seals the fridge/freezer door hinge opening to keep the hinge area tidy and reduce dirt and moisture entry. It restores the finished look and helps protect hinge hardware from debris. What it does:

• Covers the hinge opening or bolt for a clean appearance
• Helps keep dirt, dust and moisture out of the hinge cavity
• Protects hinge hardware from contamination that can affect movement
• Useful when a factory hinge cap is missing or damaged

• Typically snaps or presses into place; minimal tooling required.
• Support the door if removing hinge hardware; follow the appliance manufacturer's safety instructions.
• Disconnect power before working on electrical components nearby.
• If the old plug is brittle or stuck, gently pry with a plastic tool to avoid cosmetic damage.

This temperature control bulb cover protects the refrigerator/freezer sensing bulb for reliable temperature readings and helps maintain consistent cooling. It replaces a damaged or missing bulb cover to restore proper sensor protection. What it does

• Shields the thermostat sensing bulb from contact, vibration, and accidental damage
• Helps the temperature control sense actual internal temperature for more consistent operation
• Commonly used when a cracked, missing, or deteriorated cover causes temperature fluctuations or inaccurate readings
• Compatible with thermostats that use an external sensing bulb and capillary tube design

• Disconnect power before servicing the appliance to avoid shock or injury
• Handle the sensing bulb and capillary tube gently; do not bend or kink the tube
• Install into the location of the original cover; may require removing interior panels or shelving for access
