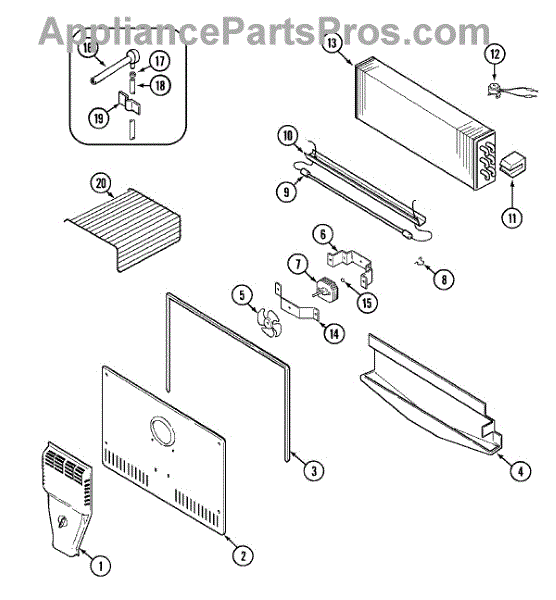

Parts for Admiral GT1521FEDW: 02 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

Size: 8-32 x .312 inch.

This heater clip secures the defrost heater in your refrigerator. Keeping the element properly positioned helps the defrost system work as designed and reduces rattling or damage from a loose or misaligned heater.

• Holds the defrost heater securely in place on its mounting point
• Helps maintain correct heater placement for consistent frost removal
• Replace if the clip is missing, broken, bent, or corroded
• Common symptoms include a loose/dangling heater, rattling noises, or recurring frost/ice around the evaporator area

• Disconnect power before servicing the appliance
• Access the defrost heater behind the freezer's rear panel; note the original clip orientation
• Install the new clip so the heater is seated and not contacting wiring or plastic; do not deform the element or coils
• Restore power and verify the heater is secured in place

This defrost thermostat senses the evaporator coil temperature and controls the defrost heater. Replacing a failed thermostat restores proper defrosting to prevent heavy frost buildup and helps your refrigerator keep consistent, reliable cooling.

• Monitors evaporator temperature to allow the defrost heater to energize and to terminate the cycle as the coil warms
• Protects against overheating in the evaporator area during defrost
• Failure symptoms include frost/ice buildup on the evaporator cover, reduced airflow, fresh food section warming, or the unit not defrosting
• Typically mounts clipped to the evaporator tubing inside the freezer

• Disconnect power before servicing and remove the freezer's rear panel to access the evaporator
• Transfer the clip/bracket if present and mount the new thermostat in the same location, ensuring firm metal-to-metal contact with the evaporator tubing
• Route wires away from the heater and moving parts; secure connections and reassemble panels before restoring power
• Wear cut-resistant gloves—sheet-metal edges can be sharp

Size: 8-32 x .312 inch.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

Ice maker water line: 1/4x 8ft.
