Parts for Admiral GT1721NDFW: 02 - Freezer Compartment Parts

02 - Freezer Compartment
Refrigerator

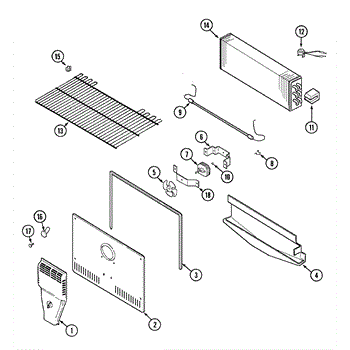

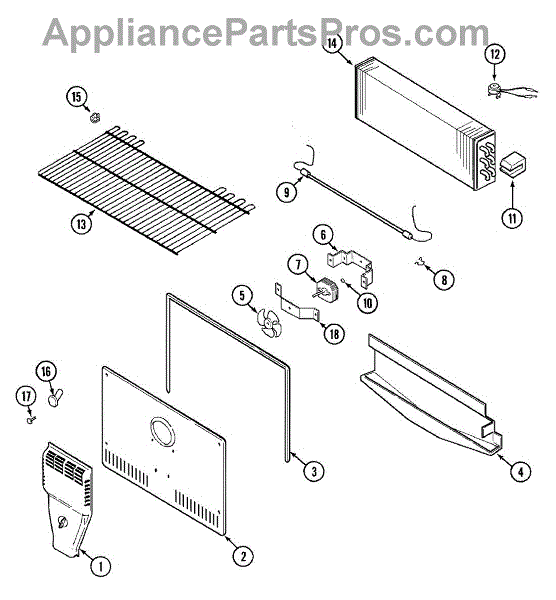

Parts for Admiral GT1721NDFW: 02 - Freezer Compartment Parts

Location on Diagram
Part Description
Price & Availability
1

Tunnel, Air

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Cover, Evaporator

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo

Screw

By: Whirlpool

Size: 8 x 1-1/4 inch.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3

Seal, Foam (Ctr.)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Seal, Evaporator Cover

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Tray- Drip

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Barrier- F

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo

Blade, Evaporator Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo

Bracket, Evap. Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo

Screw

By: Whirlpool

Size: 8-32 x .312 inch.

More
$5.95
Compare At:
$7.02
You Save:
$1.07

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo

Motor, Evaporator Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo

Clip, Defrost Heater

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Heater, Defrost

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo

Bushing, Evaporator Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Support, Evaporator (Lt)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Support, Evaporator (Rt)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
Product photo

Defrost Thermostat (Bi-Metal)

4.7 (3)
By: Whirlpool

This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

  • Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
  • Opens as the coil warms to terminate defrost and protect components from overheating
  • Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
  • Can also lead to long run times or cooling that returns only briefly after a manual defrost
Includes: One defrost thermostat Install notes:
  • Unplug the refrigerator or disconnect power before servicing
  • Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
  • Reinstall in the same position/clip for firm contact with the coil or tubing
  • Make secure, insulated wire connections and route wiring away from sharp edges and moving parts
Troubleshooting tip: At room temperature the thermostat should read open (no continuity); when chilled below freezing, it should read closed (continuity).

More
$65.27
Compare At:
$77.67
You Save:
$12.40

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
13
Product photo

Shelf, Frez

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
Product photo

Evap/Heat Exchange Assembly 15 & 17

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
Product photo

Support, Freezer Shelf

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
Product photo

Shelf Support Ff

5.0 (1)
By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Cap, Fill Tube

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Plug Button, Ice Maker

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Retainer, Evaporator Fan

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
Product photo

Screw

By: Whirlpool

Size: 8-32 x .312 inch.

More
$5.95
Compare At:
$7.02
You Save:
$1.07

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
19

Wire Harness, Frz.

By: Whirlpool

More
$9.64
Compare At:
$10.60
You Save:
$0.96

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
