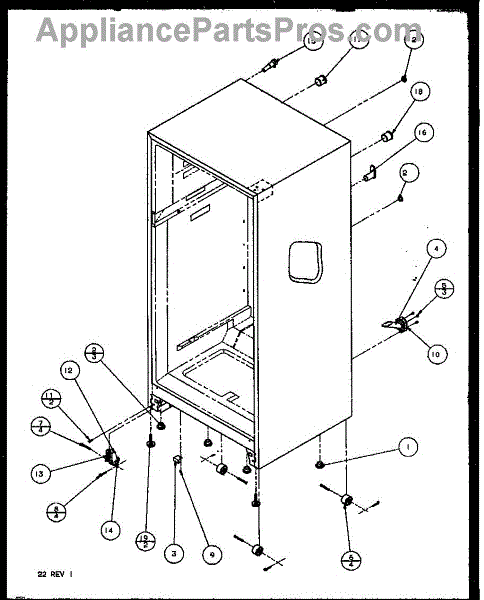

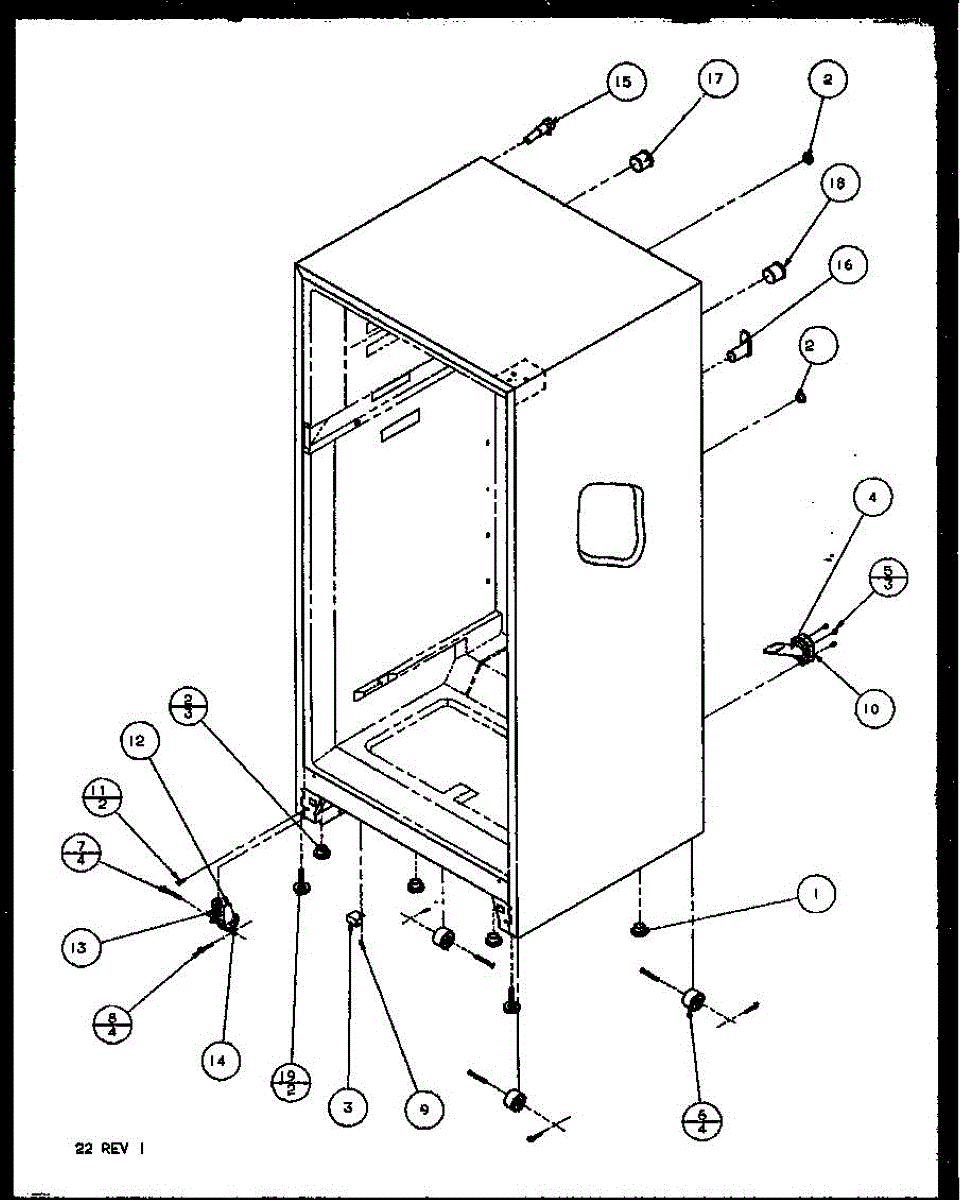

Parts for Amana 85178L / P1117103W L: 02 - Page 10 Parts

This elbow drain tube redirects drain water through a tight 90° turn to the appliance drain path, restoring proper drainage and preventing leaks from cracked or damaged tubing. A direct-fit replacement for worn or broken drain elbows. What it does

• Guides wastewater from the pump or internal drain outlet into the drain hose or drain channel
• Restores a secure, leak-free connection when the original elbow is cracked, split or deformed
• Helps maintain proper flow by providing a smooth, angled transition that reduces kinking
• Commonly replaced when you see leaks, visible damage, or poor drainage

• One elbow drain tube

• Disconnect power and water before starting any repair
• Remove access panels as needed to reach the original elbow; replace with the new elbow in the same orientation
• Ensure all clamps or retaining tabs are secured to prevent leaks; test with a short water/run cycle

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Hex head screw for trash compactor assembly. Replaces lost, stripped, or damaged screws during repairs. Essential hardware for securing components.

Replaces damaged or missing speed nuts on your refrigerator. This fastener secures panels and components. Order a new speed nut if yours is stripped or lost.

This part has been discontinued by the manufacturer and is no longer available.

Adjustable leveling foot that supports and stabilizes your refrigerator. Replace if worn, broken, or missing to eliminate wobbling and vibration.
