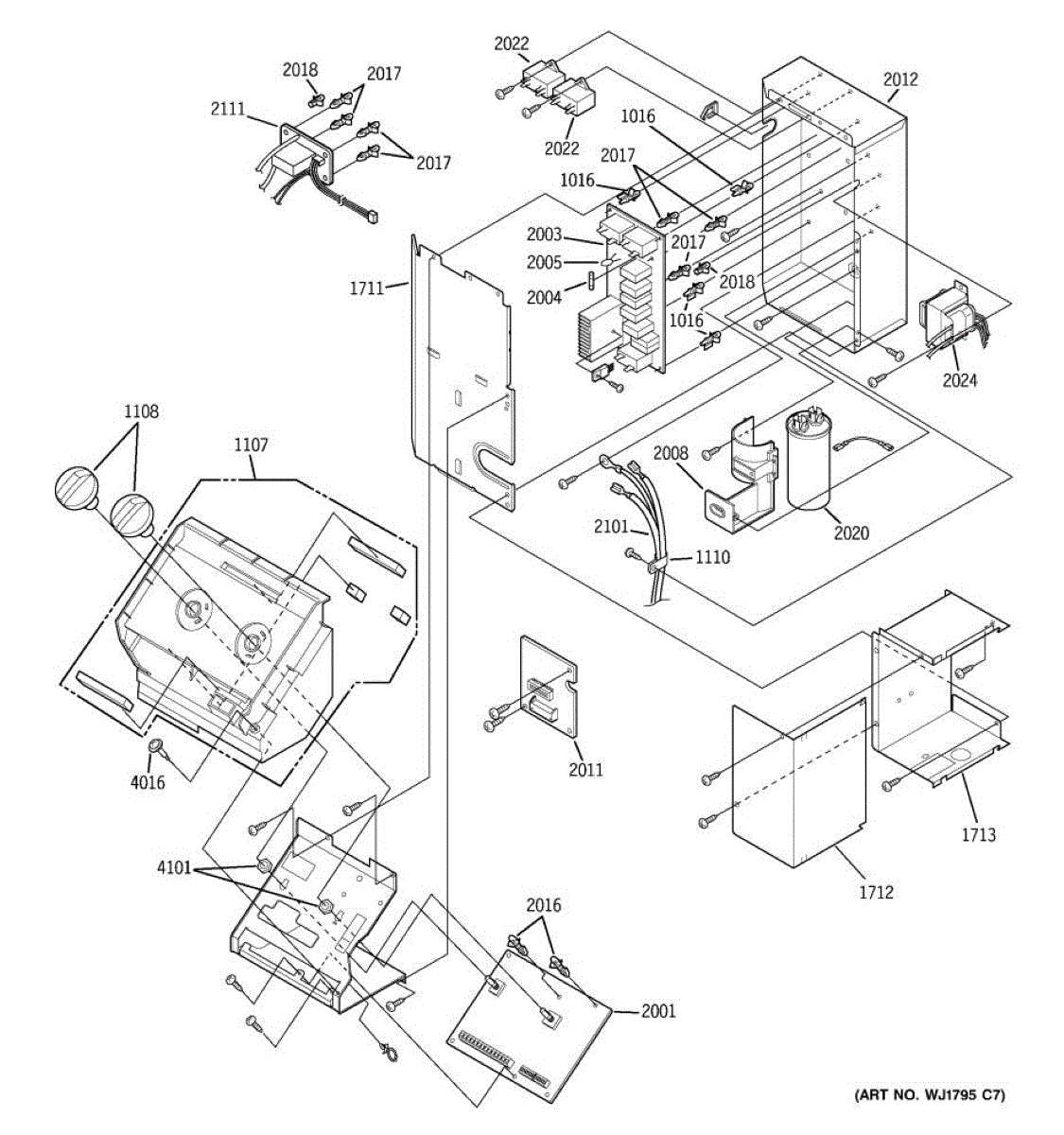

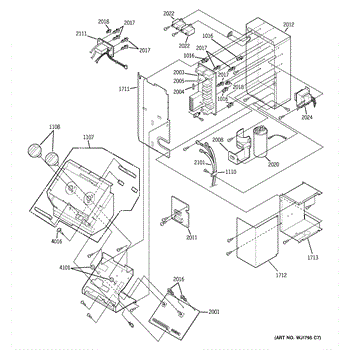

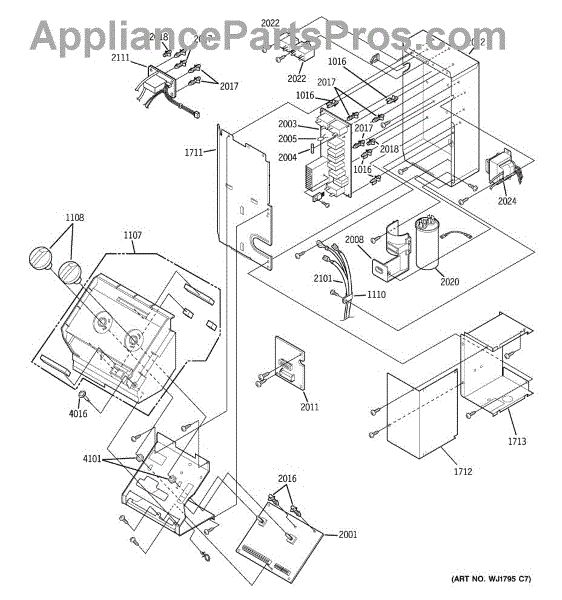

Parts for Ge AZ35H09E3DM1: 03 - Control Parts

Color: tan. Measures about 1-1/2 inches in diameter.

This capacitor clamp secures the appliance's run or start capacitor to the cabinet or mounting bracket, keeping the capacitor stable and preventing vibration-related wire stress. A simple replacement that helps keep the electrical assembly neat and secure. What it does:

• Holds the capacitor firmly in place to prevent movement and rattling
• Reduces stress on capacitor terminals and wiring that can cause intermittent contact
• Helps prevent vibration-related wear or chafing of nearby components
• Restores proper mounting when the original clamp is cracked, broken, or missing

• One capacitor clamp / mounting bracket

• Always disconnect power to the appliance before servicing electrical components
• Discharge the capacitor per manufacturer instructions before handling
• Replace with the same style clamp and secure without over-tightening
• Replace hardware to ensure a secure fit

This transformer converts incoming household voltage to the specific levels needed by your appliance's circuits and components. Replacing a failed unit restores stable power delivery so controls and critical loads operate correctly and safely. What it does

• Steps line voltage up or down to supply connected circuits
• Provides isolated, stable power for control or heating components
• Failure symptoms include: unit won't power on or run, internal fuse repeatedly blows, loud humming/buzzing, or signs of overheating near the transformer

• 1 transformer assembly

• Disconnect power at the breaker and before servicing
• Label or photograph wire locations and move leads one at a time to matching terminals
• Inspect related fuses, wiring, and connectors before reapplying power

This power supply cord is the main electrical lead that delivers power to your appliance, restoring safe, reliable power connection when the original cord is damaged or fails. It replaces a worn or frayed power lead to help appliances power on and run normally. What it does:

• Carries mains electrical power from the wall outlet to the appliance's internal components
• Replaces damaged, cracked, or frayed cords that can cause intermittent power or no power
• Helps prevent electrical arcing and poor connections caused by worn conductors
• Restores a secure connection where the cord or connector has been compromised

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Inspect the cord routing and strain relief; install the cord without pinching or sharp bends.
• Tighten connections securely and verify polarity/ground continuity per appliance instructions.
