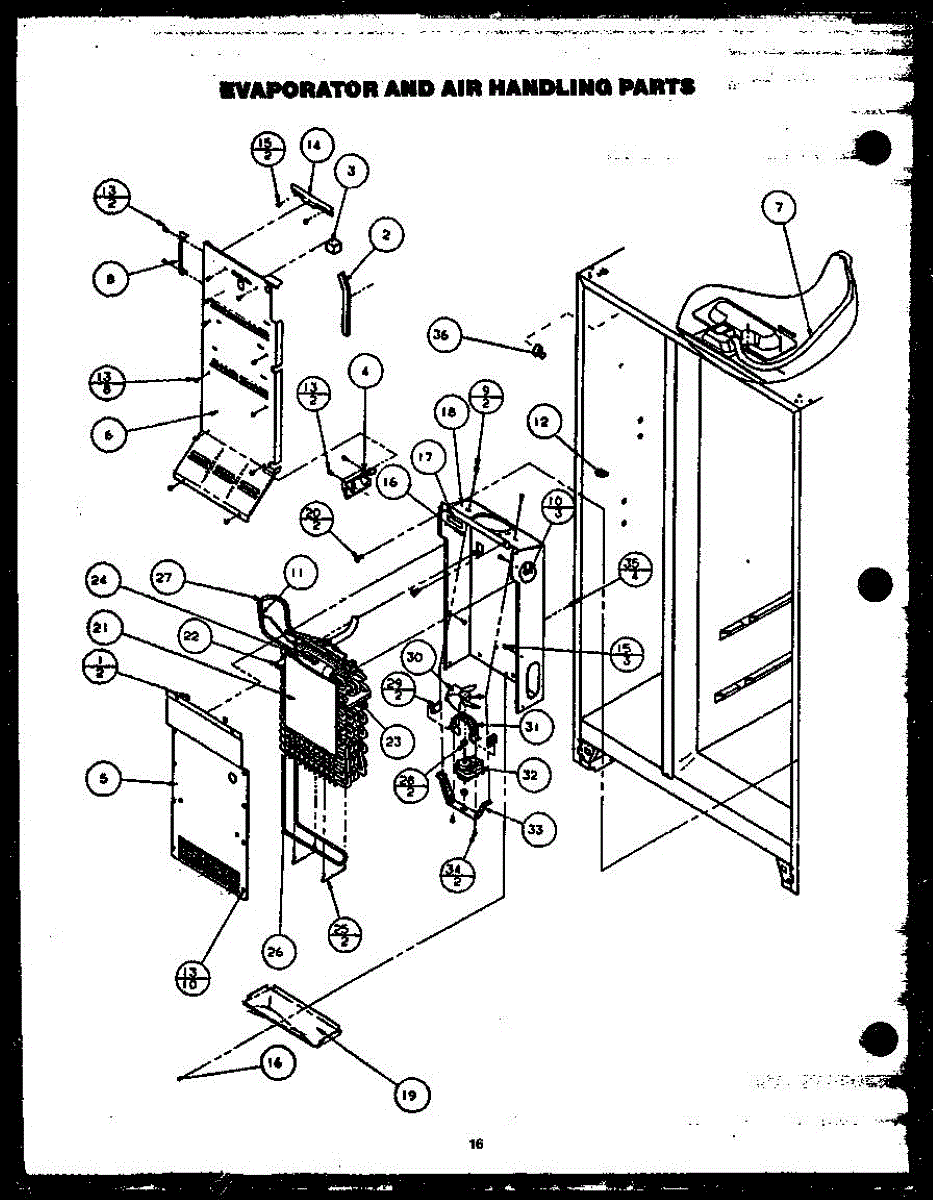

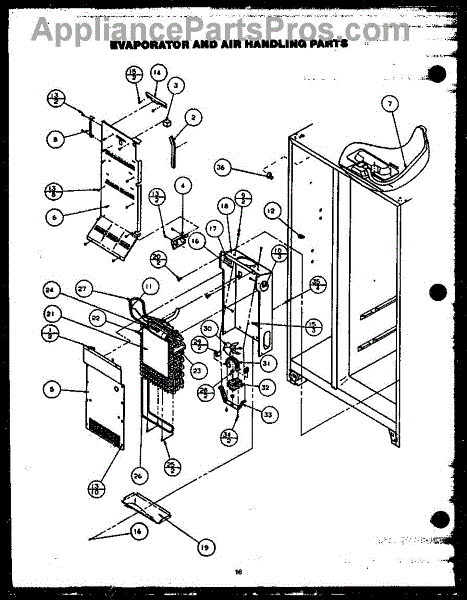

Parts for Amana GRH220-1D / GRH22001D: 03 - Evap And Air Handling Parts

Size: 8-32 x .312 inch.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This defrost thermostat senses freezer temperature and opens/closes to stop the heater during normal cooling cycles, helping keep your freezer from over-defrosting and protecting stored food. Replaces a failed or intermittent defrost control sensor. What it does:

• Opens or closes at its preset temperature to stop the defrost heater when the evaporator is warm enough
• Prevents the heater from staying on continuously, reducing risk of frozen or water-leaking evaporator issues
• Commonly replaced when defrost cycles fail or frost builds on the evaporator
• Works with the refrigerator's defrost system to maintain proper ice buildup control

• Disconnect power before inspecting or replacing the thermostat to avoid shock
• Mount the thermostat on the evaporator or bracket exactly as the original; improper placement can cause incorrect operation
• Handle the sensor gently and avoid bending or kinking capillary/tubing if present

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator fan motor drives airflow across the evaporator coils and circulates chilled air throughout the cabinet. Replacing a weak or noisy motor restores proper air circulation, helping stabilize temperatures and overall cooling performance.

• Circulates air across the evaporator and distributes it between the freezer and fresh-food sections
• Helps maintain even temperatures and consistent cooling
• Common symptoms: fan not running or intermittent, loud humming/squealing/rattling from the freezer area
• Presents as weak airflow from vents or a warm refrigerator section while the freezer seems colder

• Disconnect power before servicing to avoid electrical shock
• Access the motor behind the rear freezer panel; remove shelves/bins and panel as needed
• Transfer the existing fan blade, bracket, grommets, and wiring connectors from the old motor if required
• Match wire orientation, secure the motor, ensure the blade spins freely and blows the correct direction before reassembly

This part has been discontinued and is no longer available.
