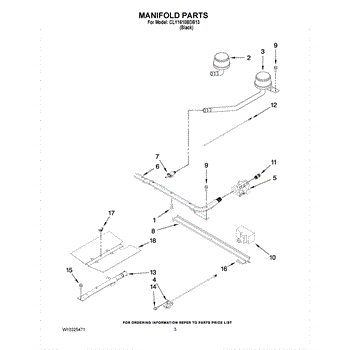

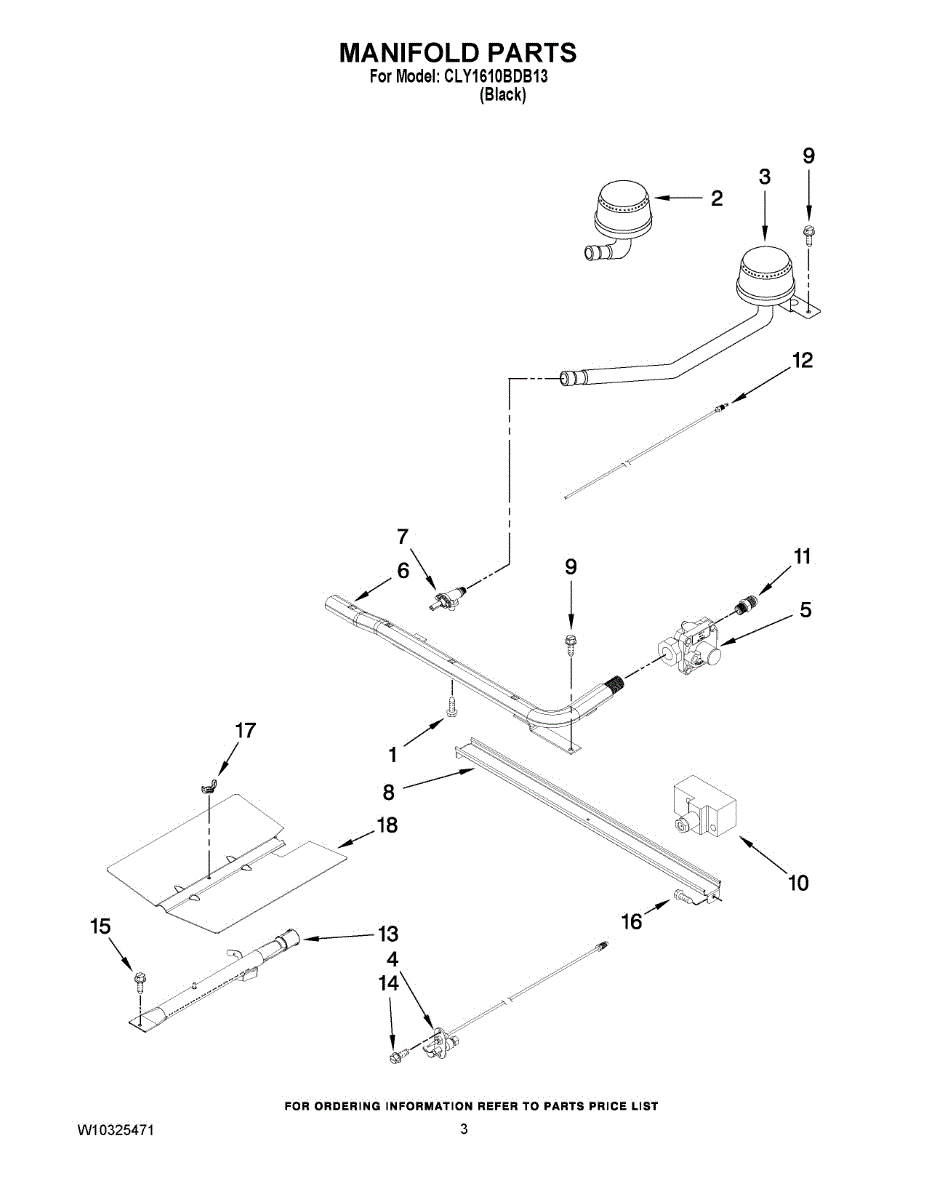

Parts for Maytag CLY1610BDB13: 03 - Manifold Parts

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This pilot burner assembly ignites the oven's main burner and restores reliable pilot flame control for gas ranges and ovens. Use to replace a worn or malfunctioning pilot that won't hold a steady flame. What it does:

• Provides the small, continuous pilot flame required to light the main burner
• Helps resolve symptoms like a weak or out pilot flame, intermittent ignition, or oven that won't light
• Direct replacement for the OEM pilot burner assembly designed for compatible gas ovens
• Works with factory gas control and ignition components when installed correctly

• Turn off gas supply and electrical power to the appliance before servicing
• Inspect the gas orifice and pilot tube for debris; clean gently if needed
• Use appropriate hand tools and tighten fittings to manufacturer torque specs — do not overtighten

This top burner valve controls gas flow to a single surface burner, restoring reliable ignition and adjustable flame control for gas cooktops. Replaces a worn or leaking burner valve to help stop uneven flames and gas smell. What it does:

• Regulates gas delivery to the top/surface burner for normal ignition and flame adjustment
• Commonly replaced for symptoms like weak or inconsistent flame, gas odor from the cooktop area, or a valve that won't turn smoothly
• Works with the cooktop's control knob and orifice to provide steady, adjustable heat

• One top burner valve (single valve only)

• Turn off gas supply and power to the appliance before inspecting or replacing the valve
• Check for proper gas connections and leaks after installation using an approved leak-detection method

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
