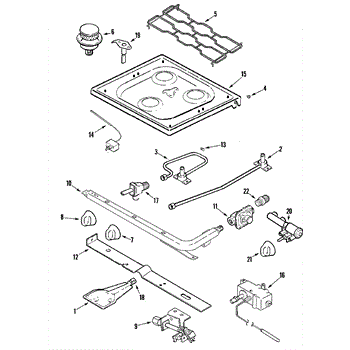

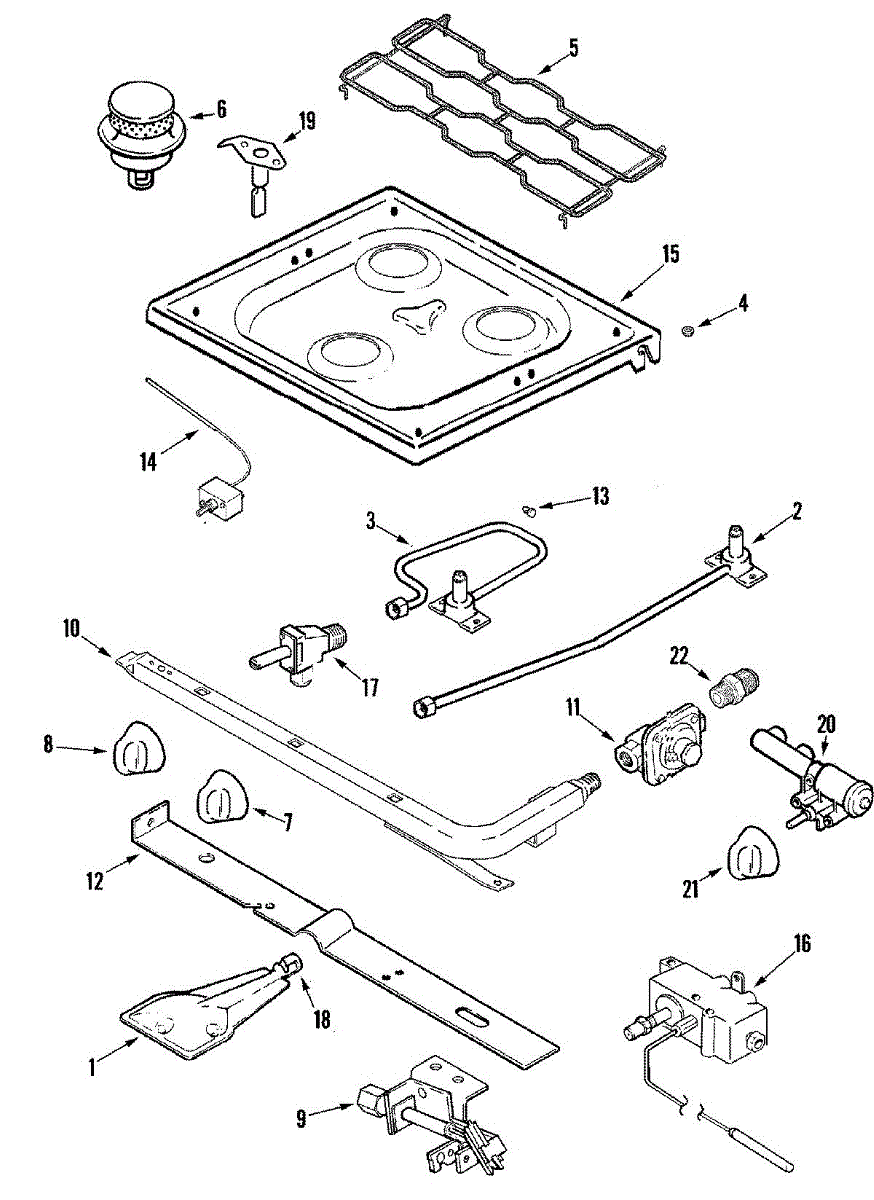

Parts for Amana ALY2280ADB: 03 - Top & Gas Controls Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This burner seal assembly replaces the cooktop burner gasket that sits between the burner and the cooktop surface to help keep spills and debris out of the burner opening and keep the burner seated correctly. What it does:

• Seals the gap around a surface burner to help prevent food and liquid from getting under the cooktop
• Helps the burner sit flush and stable on the cooktop surface
• Reduces the need to lift burners when cleaning by containing spills at the cooktop level
• Can help prevent ignition issues caused by debris buildup around the burner area

• Disconnect power and turn off the gas supply before starting any service
• Remove the burner head and clean the mounting area before installing the new seal to ensure a proper fit
• Press the seal into place around the burner opening so it sits flat and even; avoid stretching or twisting the gasket

Replace a worn, cracked, or missing surface burner knob to restore smooth, precise heat control on your cooktop. This direct-fit knob brings back easy ON/OFF operation and clear setting alignment for everyday cooking.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame or heat level
• Common symptoms: knob cracked or stripped, spins freely or falls off, melted/discolored, or missing
• Restores proper pointer alignment and a clean, finished look
• Designed for the surface burner position; match style and shaft orientation to your original

• Allow the appliance to cool completely before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the stem orientation with the new knob and press straight on until fully seated
• Disconnect power or shut off gas before any work near controls

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: black. Measures about 2 inches in diameter.

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations
