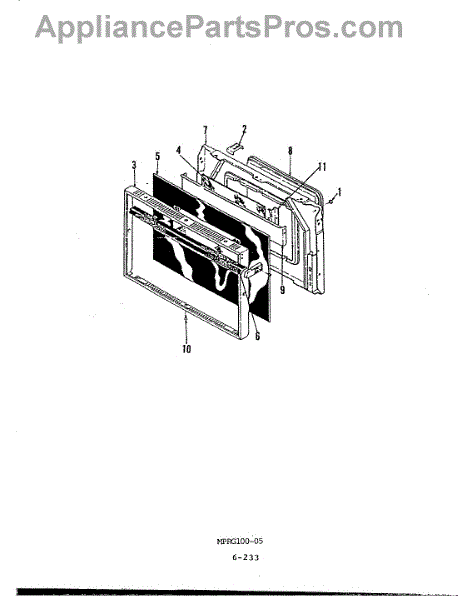

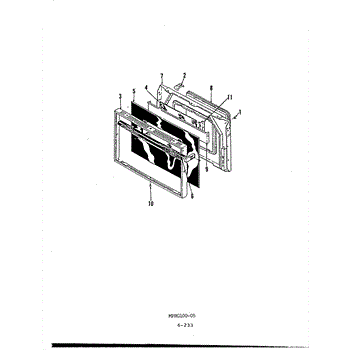

Parts for Admiral 687AF-CKVW: 04 - Door Parts

This genuine pin hinge secures and guides the appliance door, restoring smooth pivoting and proper alignment for reliable opening and closing. It's a direct-fit replacement designed to help stop door sag, binding, or uneven gaps. What it does:

• Provides the pivot point that lets the door swing open and closed
• Keeps the door aligned to the cabinet for a proper seal and even gap
• Replaces worn or bent pins that cause door sag, scraping, or noisy operation
• Helps restore smooth, wobble-free door motion

• Disconnect power (and water for dishwashers) before starting work
• Support the door during removal to prevent dropping or damage
• Simple hand tools typically required; reuse original screws unless damaged
• If the door has glass or heavy panels, get a helper to hold weight during installation

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This oven door spring restores the door's counterbalance so it opens smoothly and closes firmly. Replacing a fatigued spring helps prevent heat loss and supports consistent baking by ensuring the door seals properly. What it does:

• Provides tension to counterbalance the oven door through the hinge mechanism
• Helps the door close fully against the gasket to retain heat
• Restores smooth, controlled opening and closing action
• Common symptoms of a worn spring: door drops or feels heavy, won't stay closed, heat escaping/uneven temperatures

• One oven door spring

• Disconnect electrical power; turn off gas supply to the range if applicable
• Springs and hinges are under tension—support the door/hinge and use caution
• Note spring hook positions/orientation before removal; reinstall in the same locations
• After replacement, verify the door closes fully and the seal is even
