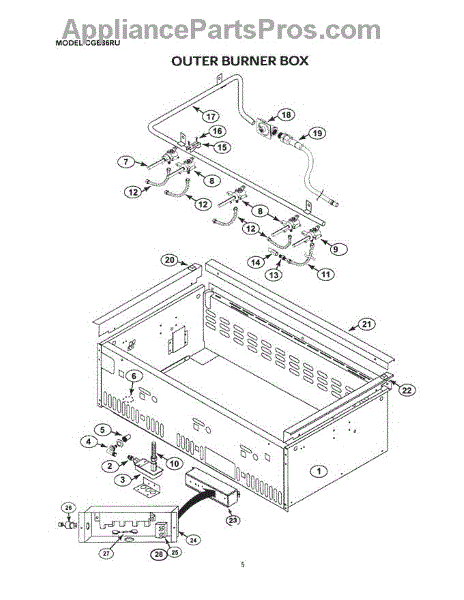

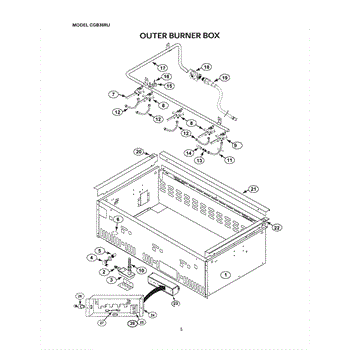

Parts for Thermador CGB36RU: 04 - Outer Burner Box Parts

This replacement gas orifice (#54 drill) meters fuel to a burner for correct flame size and heat output. It restores proper burner performance when the jet is clogged, worn or the flame is weak or uneven. What it does:

• Precisely meters gas flow to a burner to maintain correct flame characteristics
• Helps correct weak, flickering, low or uneven flames
• Useful when a burner has restricted flow from debris or corrosion
• Compatible with applications that use a #54 drill-sized jet

• Turn off the gas supply and electrical power before servicing; follow local codes
• Use appropriate tools to remove the old orifice; avoid overtightening the replacement
• Check all connections for leaks with a gas leak detector or soapy water before use

This 48-inch gas supply tube routes fuel from the appliance inlet to the internal gas valve, providing a direct replacement for damaged, corroded or bent factory tubing. Restores safe gas flow when the original tube is compromised. What it does:

• Directs gas from the inlet to the appliance gas valve for ignition and burner operation.
• Replaces tubing that is cracked, bent, corroded or otherwise leaking.
• Addresses symptoms like a persistent gas odor near the appliance, burners that won't light, or visible damage to the original tube.
• Provides the correct length and routing to match the appliance's original configuration.

• Turn off the gas supply and electrical power to the appliance before beginning work.
• After installation, test all connections for leaks with a soap-and-water solution or a calibrated gas leak tester; do not use an open flame.
• Do not modify or shorten the tube; use the correct routed length and fittings for a proper seal.

A 9-inch gas supply tube that routes fuel from the appliance inlet to the control valve/manifold, restoring proper gas delivery for safe, consistent burner operation when tubing is damaged or leaking. What it does:

• Channels gas to the control valve/manifold so burners can ignite and maintain a steady flame.
• Replaces bent, punctured, corroded, or leaking tubing that can interrupt fuel flow.
• Helps address common symptoms such as a gas odor near the appliance, burners that won't light, or low/uneven flames.
• OEM-style replacement designed for the corresponding Bosch gas appliance configurations.

• Shut off the gas supply and electrical power to the appliance before starting any work.
• Use correct fittings and approved thread sealant or gasketing; tighten to OEM-recommended torque if specified.
• After installation, perform a soap-and-water or approved leak test; if you detect a leak, shut off gas.

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation
