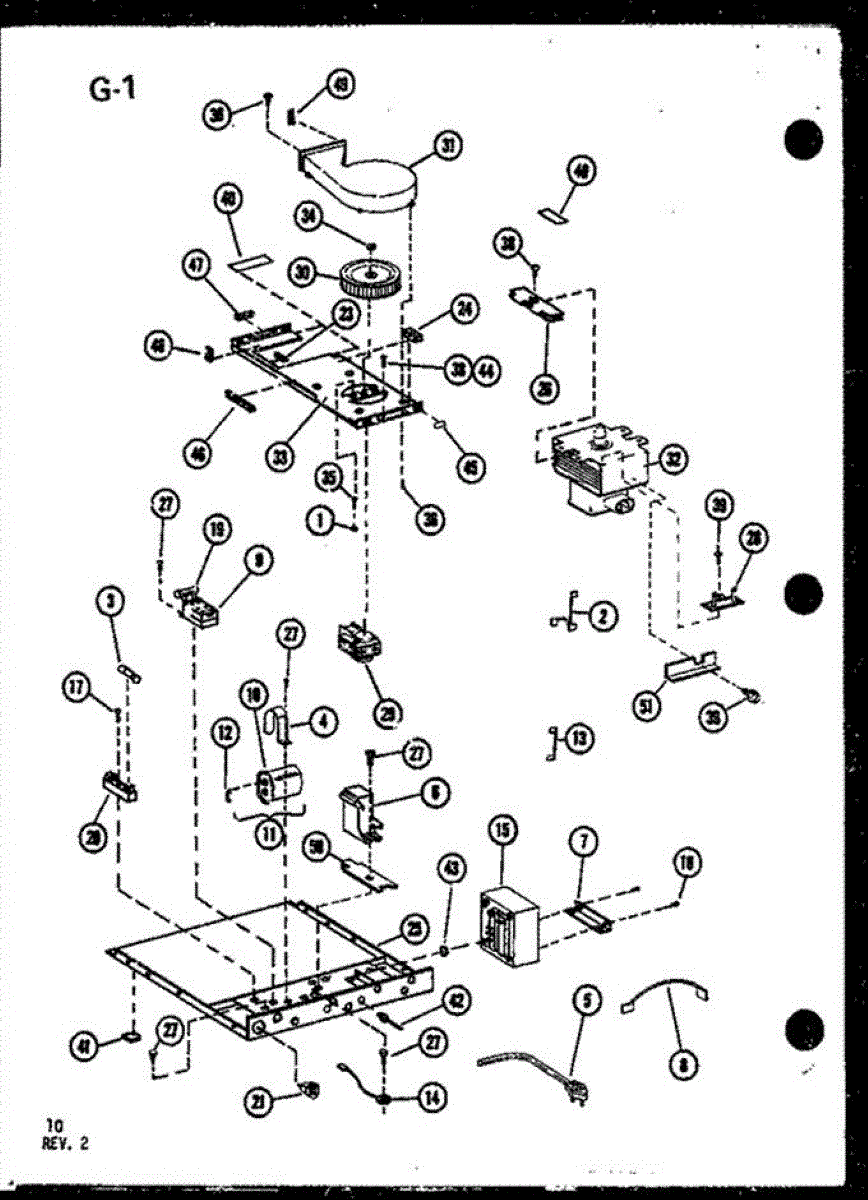

Parts for Amana RC6D / P7386007M: 04 - Page 4 Parts

Ceramic

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
