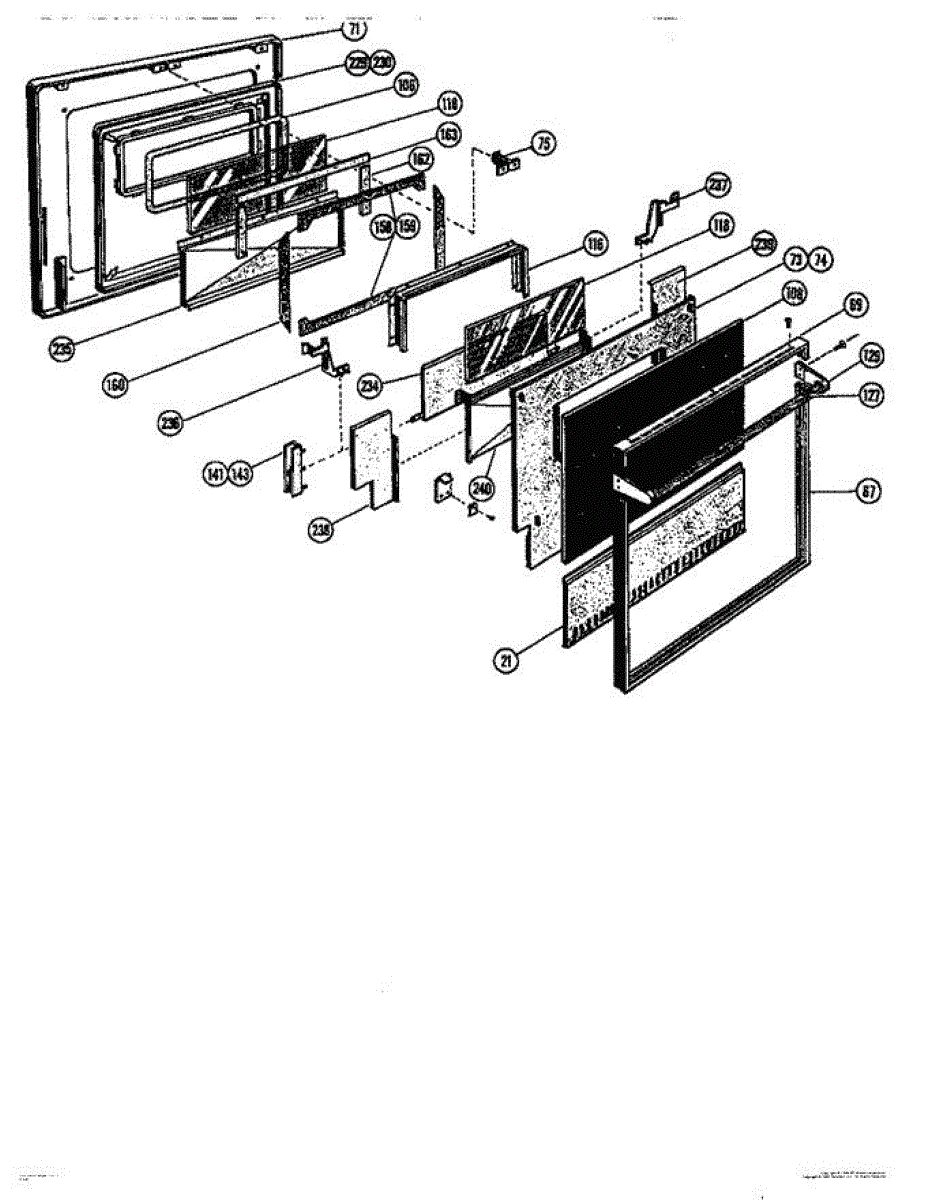

Parts for Thermador ESC-31: 05 - Door Parts

This lock washer secures fasteners by biting into the mating surface to resist loosening from vibration and thermal cycling. It's a small but critical retaining part used on appliance assemblies where a secure, vibration-resistant connection is required. What it does

• Provides a spring clamp action that helps keep bolts and screws from backing out under vibration
• Maintains tension on threaded connections during thermal expansion and contraction
• Commonly used on motor mounts, pump assemblies, and panels that experience movement
• Can reduce intermittent electrical/grounding issues caused by loose hardware

• One lock washer

• Inspect threads and mating surfaces; replace any damaged fasteners before installing the washer
• Install with the correct-sized bolt or screw; washer must fit snugly to function properly
• Tighten to manufacturer torque specifications when available; avoid over-tightening
• Disconnect power and follow all safety precautions before servicing the appliance

This glass spacer secures and positions the oven or appliance door glass, keeping the glass aligned and preventing contact with metal trim. Replacing a worn spacer restores a firm, rattle-free fit and helps protect the glass from chipping. What it does:

• Cushions and spaces the door glass from the frame to prevent rubbing and vibration
• Keeps glass properly aligned for a tight, even seal
• Stops rattling or vibration noises caused by a missing or damaged spacer
• Reduces wear on adjacent trim and glass edges

• Disconnect power to the appliance before starting any repair
• Handle glass carefully and wear cut-resistant gloves and eye protection
• May require partial door or trim removal for access; keep screws and fasteners organized
• If glass is cracked or damaged, replace the damaged glass per manufacturer instructions rather than relying on the spacer alone

This inner door glass panel replaces the interior glass pane in the door assembly. It restores a clear, heat-resistant barrier so your appliance can retain heat and operate safely after the original pane cracks or shatters.

• Serves as the interior glass pane of the door facing the cavity
• Helps insulate the cavity to maintain stable cooking temperatures
• Direct replacement for cracked, shattered, or missing inner glass
• Can help address heat loss and unsafe door conditions

• Disconnect power at the breaker and allow the appliance to cool completely before starting
• Remove the door per your model's service instructions and place it on a padded work surface
• Wear cut-resistant gloves and eye protection; handle glass by the edges
• Transfer any brackets/clips in the original order and tighten fasteners snugly without overtightening

This right-side shutter handle replaces a damaged or worn handle to restore smooth opening and secure closing of a shutter or access cover. Fits the factory right-hand shutter location for a clean finish. What it does

• Provides a sturdy grip for opening and closing the right-side shutter or access cover
• Restores proper alignment and prevents snagging from a broken or cracked handle
• Helps maintain a finished exterior appearance where the shutter mounts
• Useful when handle is loose, broken, or cosmetically damaged

• Disconnect power and water (if applicable) and follow before starting
• Remove any retaining clips or screws and replace the handle with the OEM part number to ensure fit
• Do not force parts; inspect mounting points and clips for damage and replace if needed
