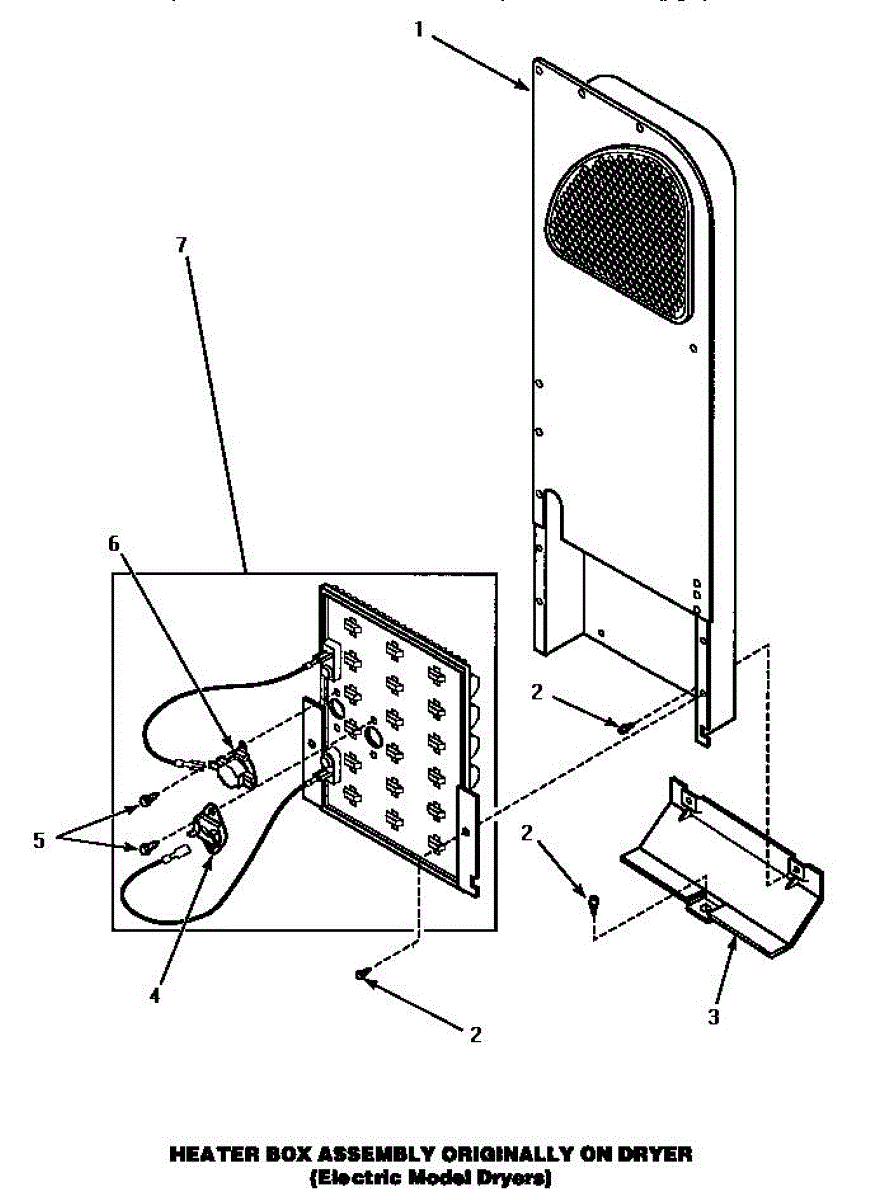

Parts for Amana CE8427W / PCE8427W: 06 - Heater Box Assy (Original) Parts

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

10 - 16 x 1/2

The High Limit Thermal Fuse is an OEM replacement part for Whirlpool dryers that prevents overheating. It is a one-time use use part that must be replaced if it is tripped. Its designed to respond to excessively high temperatures, safeguarding both the appliance and the home.

Causes of a bad High Limit Thermal Fuse can include blocked ventilation in the dryer or exhaust vent, overloading the dryer, or component failure within the heating system leading to overheating.

Symptoms of a bad High Limit Thermal Fuse include:

• The dryer not starting or abruptly stopping during a cycle.
• No heat being produced during cycles, leading to damp clothes.
• A blown thermal fuse detected during a continuity test.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It serves as a safety device that prevents the dryer from overheating by cutting off the power to the heating element if the temperature exceeds a certain limit.

You should replace the hi-limit thermostat if it malfunctions or fails. Causes of a bad hi-limit thermostat can include normal wear and tear, exposure to excessively high temperatures, or electrical issues that affect its functionality.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating properly
• The dryer shutting off unexpectedly during a cycle
• Long drying times or clothes not drying completely
• The dryer becoming excessively hot to the touch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 240-volt heater assembly restores the appliance's ability to generate and maintain heat during operation, helping cycles reach designed temperatures for proper performance and results. What it does:

• Converts electrical energy into heat for the appliance's heating circuit
• Helps the unit reach and hold target temperatures during heat-required portions of the cycle
• Replaces a damaged, shorted, or open heating element
• Symptoms can include no heat when expected, longer-than-normal cycles, tripped breakers, or heater-related error codes

• 1 heater assembly

• Disconnect power at the breaker before servicing; 240V circuits can be hazardous
• Document wire locations and move connectors one at a time to the new assembly
• Avoid bending or striking the element; ensure secure mounting and proper clearances
• After installation, check related safety devices (high-limit, thermostats, fuses) and verify the circuit has correct voltage and continuity
