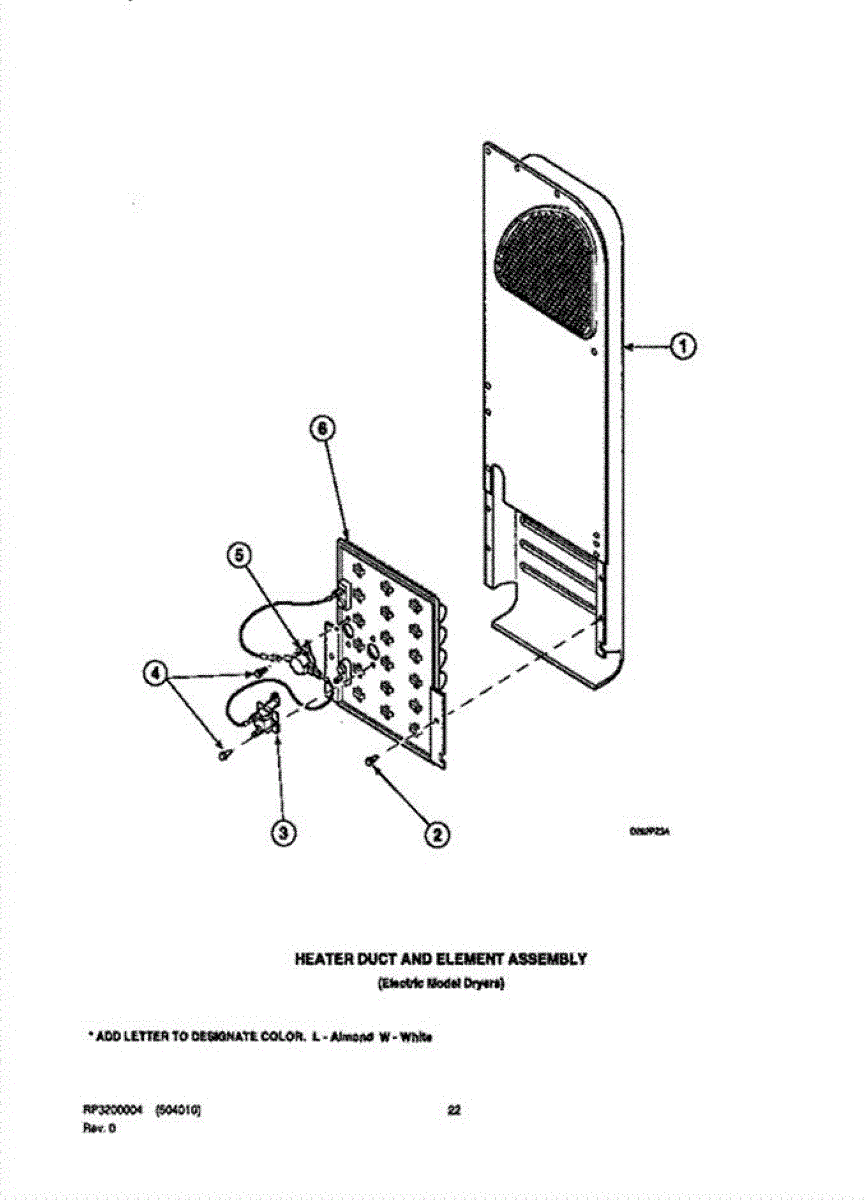

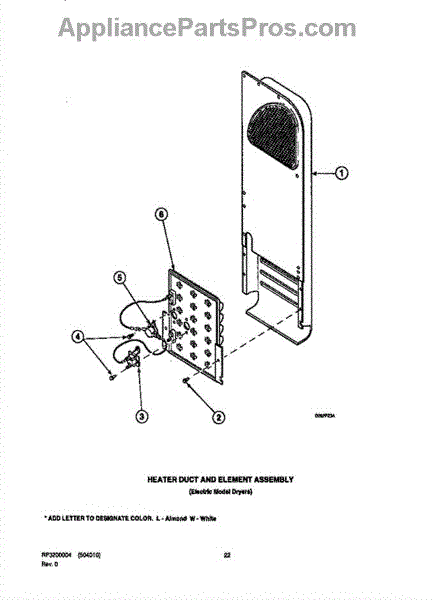

Parts for Amana LES33AW / PLES33AW: 09 - Heater Duct And Element Assy Parts

10 - 16 x 1/2

The High Limit Thermal Fuse is an OEM replacement part for Whirlpool dryers that prevents overheating. It is a one-time use use part that must be replaced if it is tripped. Its designed to respond to excessively high temperatures, safeguarding both the appliance and the home.

Causes of a bad High Limit Thermal Fuse can include blocked ventilation in the dryer or exhaust vent, overloading the dryer, or component failure within the heating system leading to overheating.

Symptoms of a bad High Limit Thermal Fuse include:

• The dryer not starting or abruptly stopping during a cycle.
• No heat being produced during cycles, leading to damp clothes.
• A blown thermal fuse detected during a continuity test.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Heating Element is an OEM part for Whirlpool dryers. It generates the heat necessary to dry clothes by converting electrical energy into thermal energy, ensuring efficient and effective drying performance. This heater measures approximately 11.7 x 10.7 inches.

You should replace the heating element if it becomes faulty or damaged. Causes of a bad heating element can include prolonged usage, electrical issues, or physical damage due to overheating. Over time, the element can burn out or break, leading to insufficient heat production.

Symptoms of a bad heating element include:

• The dryer not producing heat
• Clothes taking longer than usual to dry
• The dryer not reaching the desired temperature
• Unusual noises or a burning smell during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
