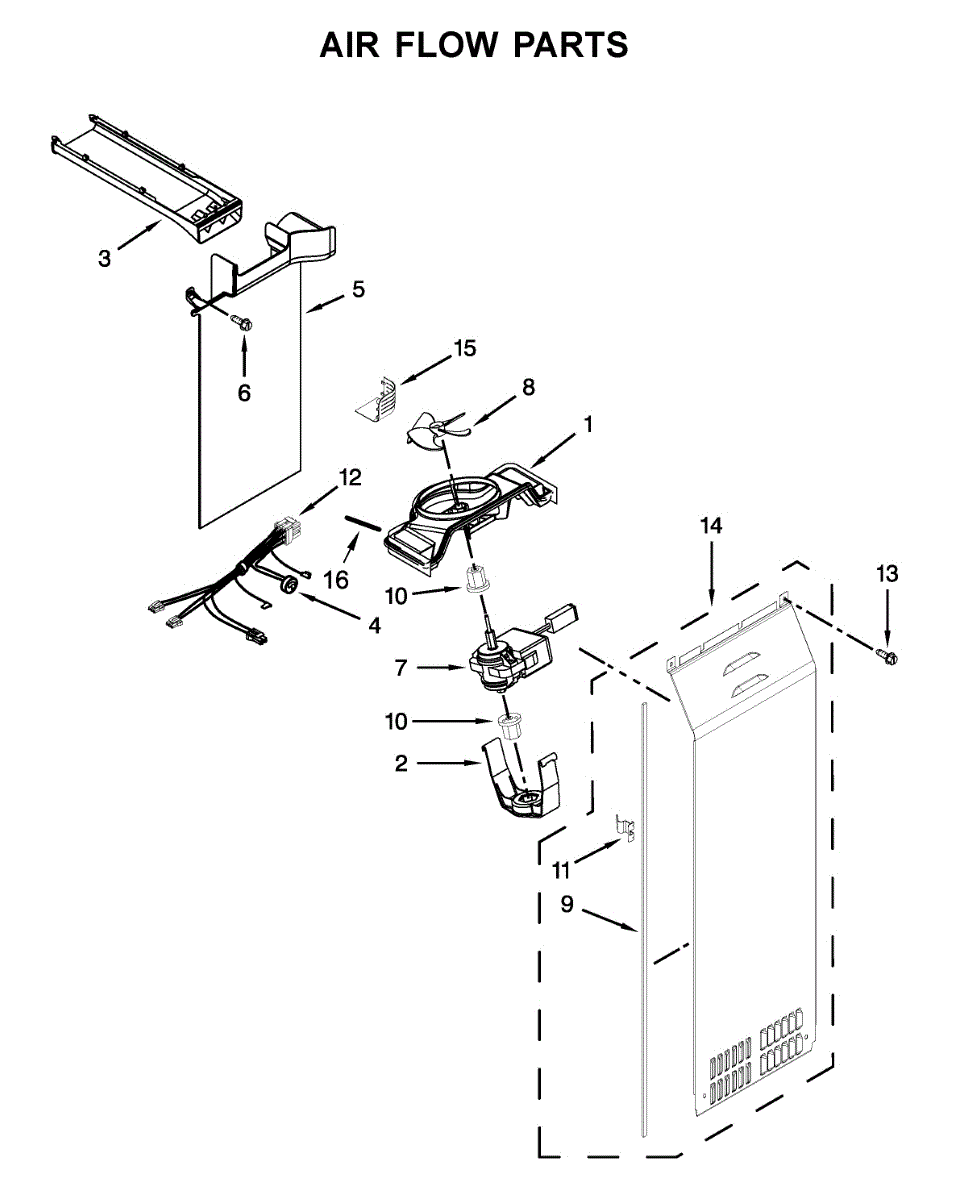

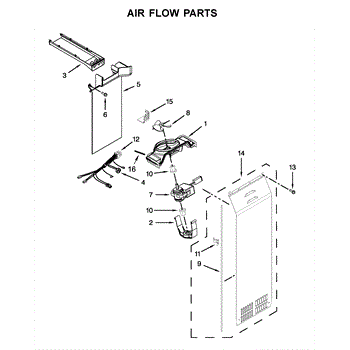

Parts for Kitchenaid KRSC703HPS00: Air Flow Parts

Instruction sheet included.

Size: 8 x 1/2 ab.

This motor grommet cushions and secures the appliance motor to the cabinet, helping reduce vibration and noise for smoother operation. It's a direct-fit rubber mounting grommet used where the motor meets the frame. What it does:

• Absorbs motor vibration to reduce noise and movement
• Protects the motor mounting studs and surrounding sheet metal from wear
• Helps maintain proper motor alignment for reliable operation
• Commonly replaced when rubber is cracked, torn, or deteriorated

• Disconnect power before beginning any service.
• Access and remove the motor mounting hardware or panel to reach the old grommet.
• Replace with the new grommet, ensuring it is fully seated on the motor stud and in the mounting hole.
• Reinstall hardware, restore panels, and test the appliance for secure, quiet operation.

The Wire Harness is an OEM part for Whirlpool refrigerators. It is made up of bundled electrical wires that connect and transmit signals between different refrigerator components like lights, temperature controls, fans, and more.

Causes of a bad wire harness include short circuits due to damaged insulation, loose or disconnected wires, or wires breaking due to normal wear and tear over time.

Symptoms of a bad wire harness include:

• Lights or temperature displays not working properly
• Fans or other mechanical parts failing to run
• Strange electrical smells or sounds coming from the refrigerator
• Components like icemakers or water dispensers malfunctioning

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed
