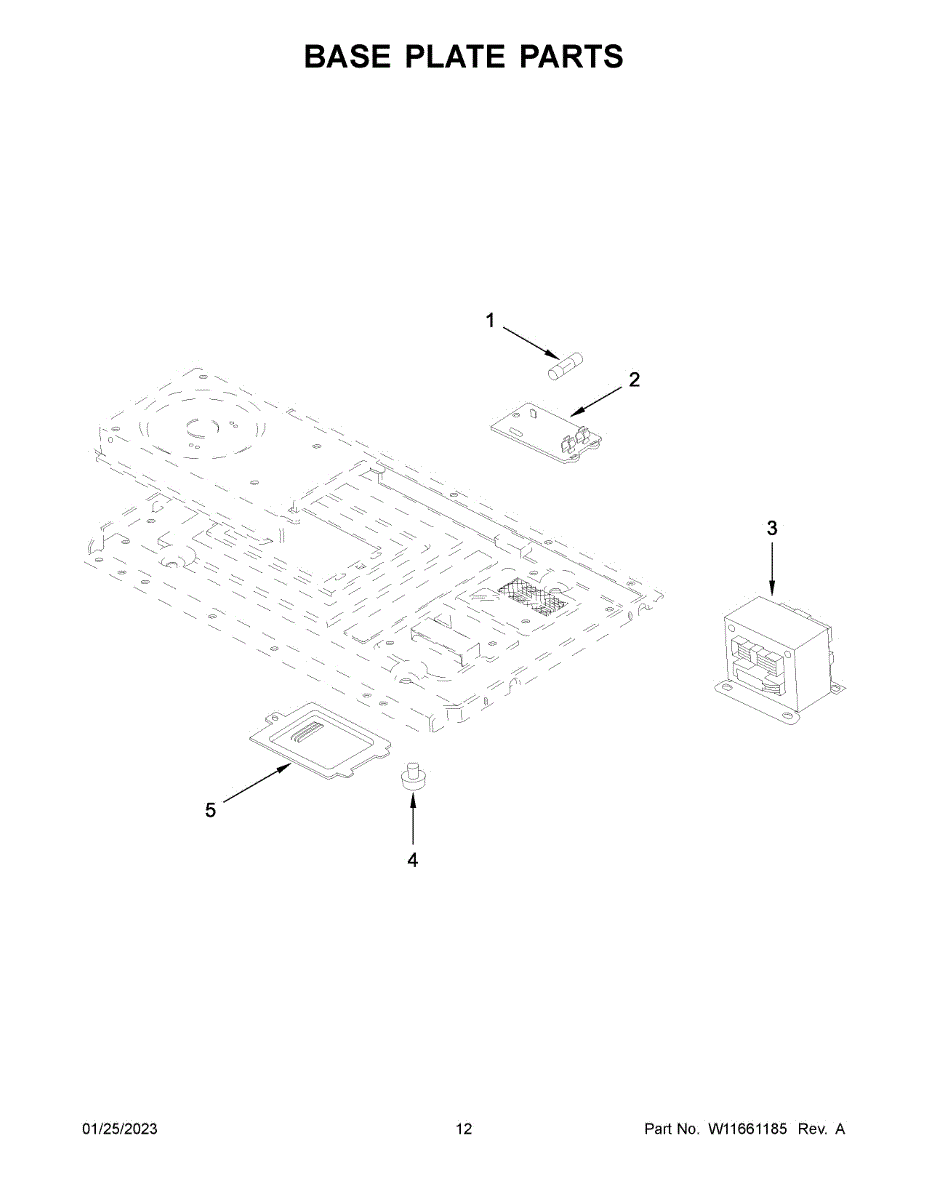

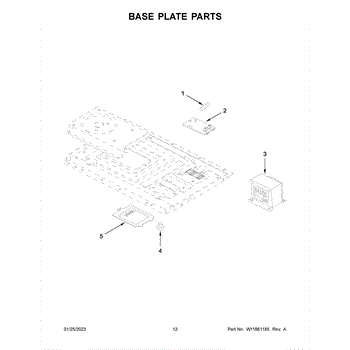

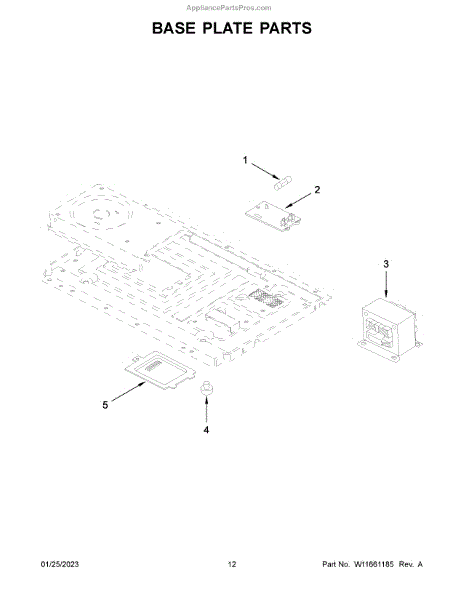

Parts for Jenn-Air JMC3415ES02: Base Plate Parts

This transformer converts incoming power for the appliance's control electronics so the user interface and control board operate reliably. Replacing a failing transformer restores proper control function and display responsiveness. What it does:

• Steps down or isolates line voltage for the control board and low-voltage circuits
• Enables consistent power to timers, displays, and relays
• Commonly fails when control functions are intermittent or the display dims/flickers
• Can prevent the appliance from powering on if the control board receives no usable voltage

• One replacement transformer

• Disconnect power at the breaker or unplug the appliance before beginning work
• Verify wiring and mounting orientation match the original part; secure all connectors
• Handle the part carefully to avoid damage to terminals and insulation
