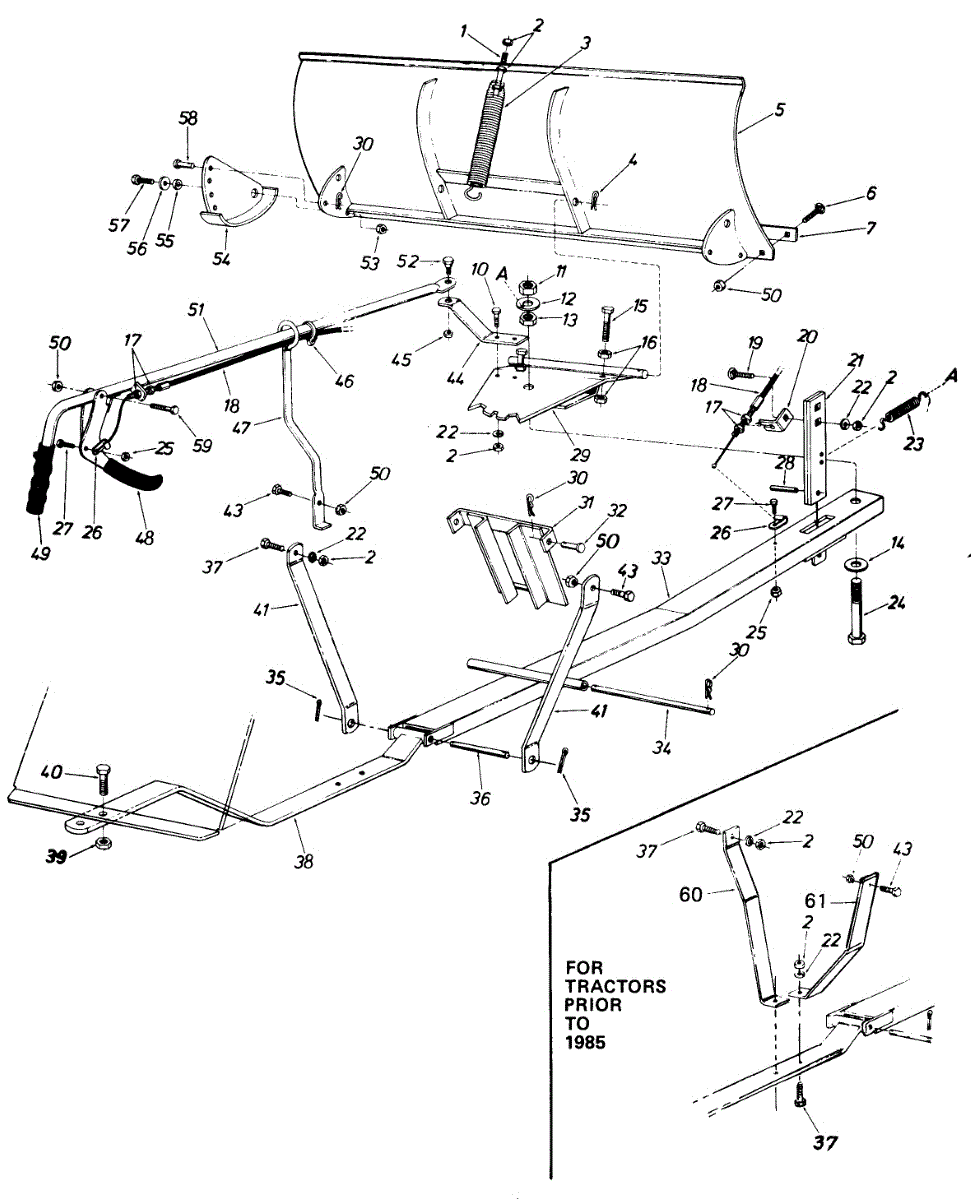

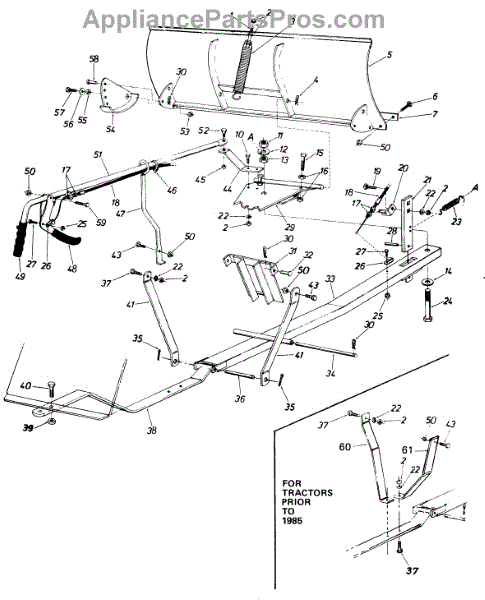

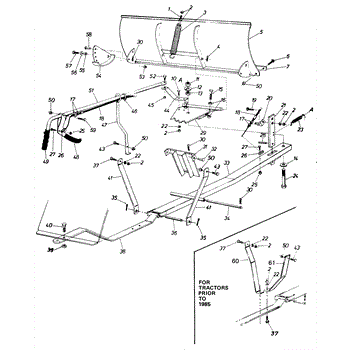

Parts for White Outdoor 190-940-190 / 1987: Blade Assembly Parts

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This hex nut is a genuine MTD part, sold individually. This hex nut can be used as a replacement part in lawnmowers, snowblowers, tillers, string trimmers, leaf blowers, log splitters, and wood chippers. The purpose of a hex nut for one of these outdoor appliances is to serve as a fastening component in conjunction with a bolt so that two or more components are affixed to one another.The hex nut in an outdoor appliance might have to be replaced if the hex nut is lost, misplaced, or stripped from general wear and tear with long-term use. If the hex nut is damaged, the hex nut should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Broan, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

The roll pin, also called a shear pin, is a slender metal piece that fastens the driveshaft to the auger of a snowblower. This pin actually does double duty as a safety device. When moving through the snow-covered ground where objects cannot be seen, sometimes the snow-moving auger will come into contact with something other than snow. Since the driveshaft of the blower will continue to turn regardless of the mobility of the auger, the auger would be destroyed or significantly damaged upon encountering such an object. The roll pin is designed to shear off when the auger suddenly stops so the working parts of the blower are not damaged. Most blowers are designed so that the pins are easily accessible. By rolling the blower so the belly plate is up, it is easy to remove the belly plate and see where the shear pin goes through the driveshaft and connects with the auger. The broken piece of the old pin can be forced through by the new pin by gently tapping it with a hammer. This OEM genuine replacement part is compatible with a number of snowblowers, including Craftsman, Troy-Bilt, MTD, Yard Machines, and Yard-Man.

This hex screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in many different applications in lawn and garden equipment and can be used on many different machines. If the hex screw is missing or loose due to deterioration, a new hex screw should be installed. Hex head screws are removed and replaced using a hex wrench. Screws are used to secure one part of a machine to another part. This hex head screw is not self-tapping, it is designed for pre-drilled holes. Most applications will require a washer and bolt to secure the screw, but there are applications where the screw is inserted into parts that do not have an opening on the other side and so the screw does not need to bolt. Wear gloves when working with screws and outdoor equipment. This hex head screw is made of hardened metal and is sold as an individual unit. This hex head screw can be used on many different model machines manufactured by MTD, Ryobi, Murray, YardMan, Bolens, Cub Cadet, and Husky.

This genuine OEM replacement jam nut attaches to the idler bracket on a tiller. Jam nuts are a special type of nut designed to not unthread or strip out over time. Jam nuts are usually fastened on with another standard nut and then the two nuts are tightened against each other. Jam nuts can be easily identified from a standard nut because they are roughly half the size. Jam nuts can be lost while making repairs because of their small size. If lost, it might not affect the idler bracket immediately, but over time the standard nut may begin to slip or unthread. Therefore, the jam nut should be replaced as soon as possible. When making this replacement, be sure to unthread the standard nut as well and then tighten them both together using a wrench. This replacement jam nut is a high-quality part sourced from its original manufacturer. It is compatible with Troy-Bilt, Yard Man, Huskee, MTD, Ryobi, Yard Machines, and Cub Cadet tillers. This part does not ship with any additional hardware.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This center hex nut is a genuine MTD part, sold individually. This center hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, edgers, log splitters, and wood chippers. The purpose of the center hex nut for one of these small engine outdoor appliances is to work in conjunction with a bolt to provide a fastening component for one or more parts within the internal mechanisms of the appliance.The center hex nut might need to be replaced if the small fastening component is lost, misplaced, or damaged within the typical lifespan of the small engine outdoor appliance in which it has been installed.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This center hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in lawn mowers, snowblowers, tillers, edgers, chainsaws, log splitters, and wood chippers. The purpose of a flat washer for one of these small engine outdoor appliances is to serve as a fastening component, spacing internal parts out to reduce friction.The flat washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced, in which case it should be replaced as soon as the operator notices its absence. The flat washer can also be stripped away over time, in which case it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, MasterCut, Yard Man, Turf King, Montgomery Wards, Husky, and Murray.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.
