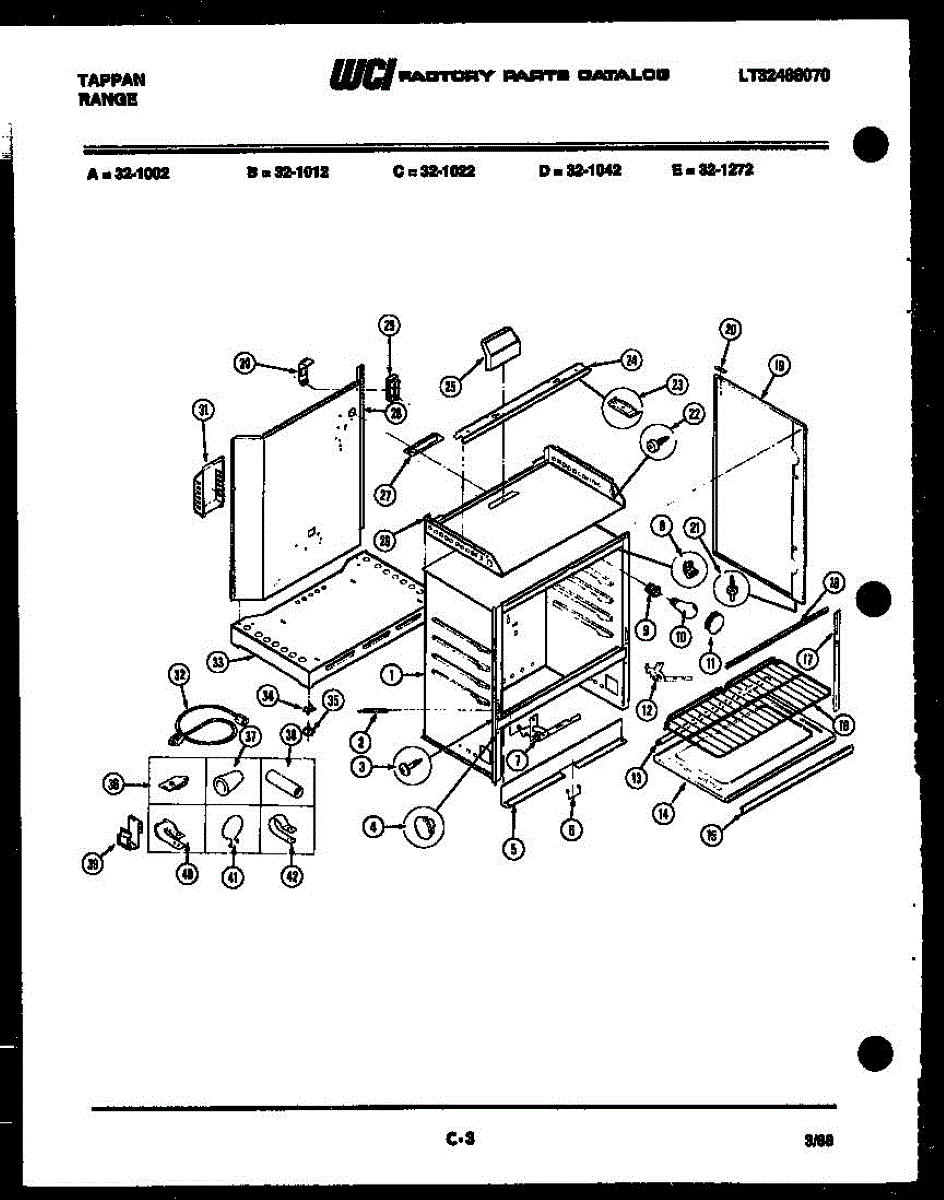

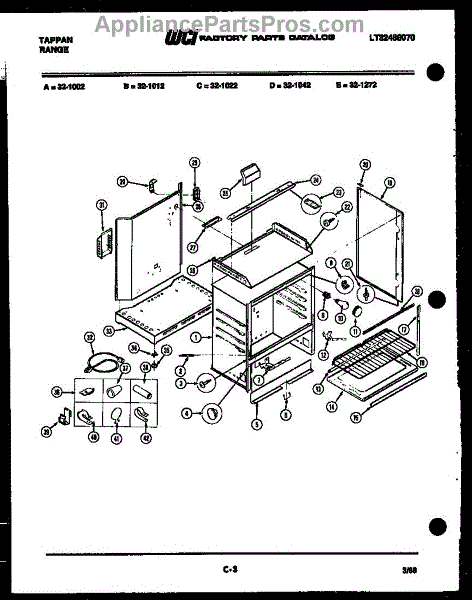

Parts for Frigidaire 32-1272-32-01: 17 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

This insulator sleeve protects wiring or tubing from abrasion and heat where lines pass through chassis openings, helping prevent leaks and electrical wear. It's a small but important protective part for refrigerator service and repairs. What it does:

• Shields wires or refrigerant tubing from rubbing against sharp edges
• Helps reduce heat transfer and abrasion at cabinet penetration points
• Prevents premature wear that can lead to leaks or electrical shorts
• Commonly replaced when cut, cracked, or missing around line penetrations

• Inspect surrounding wiring/tubing and replace sleeve if damaged or brittle
• Use basic hand tools; position sleeve so it fully covers the exposed area
• Disconnect power to the appliance before working near electrical components
• Avoid bending or stressing the lines.

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation
