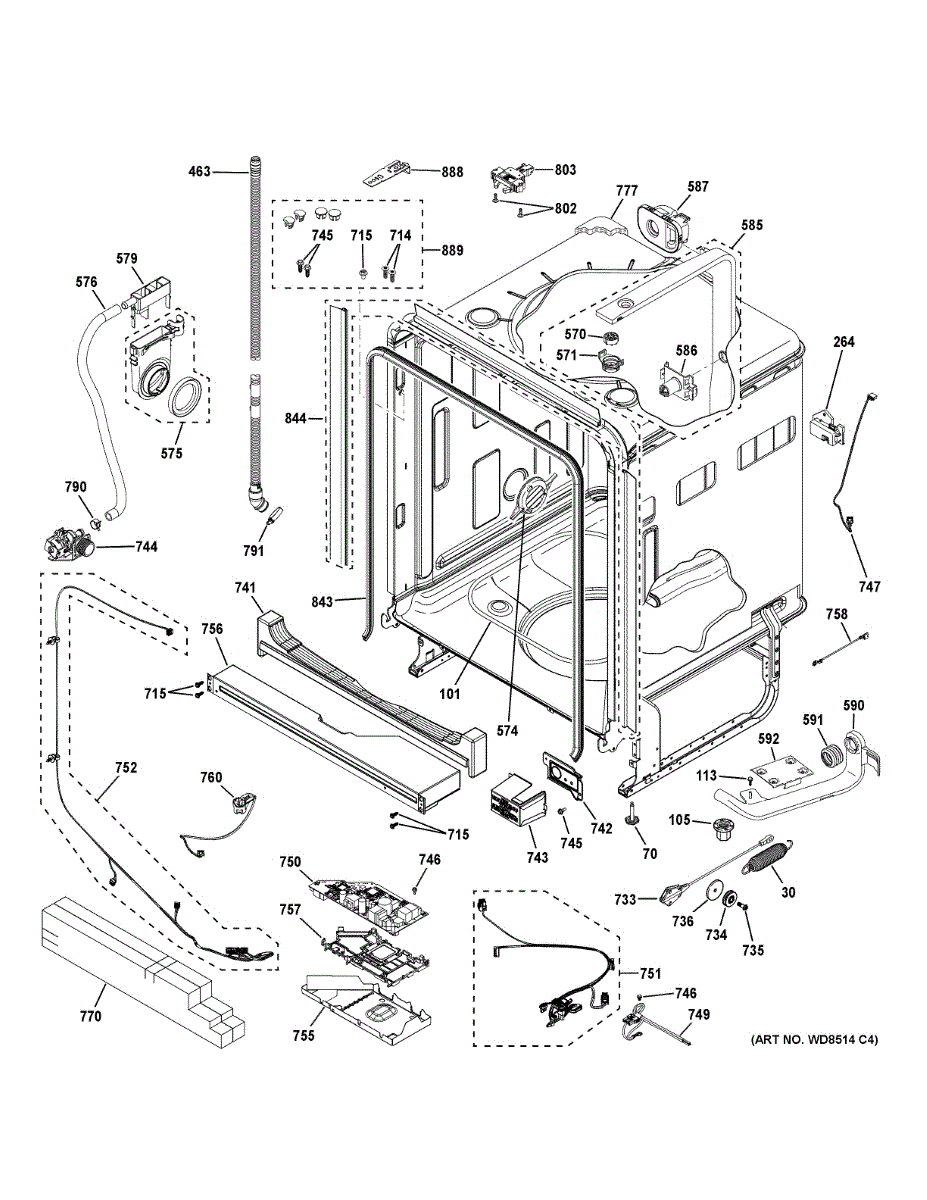

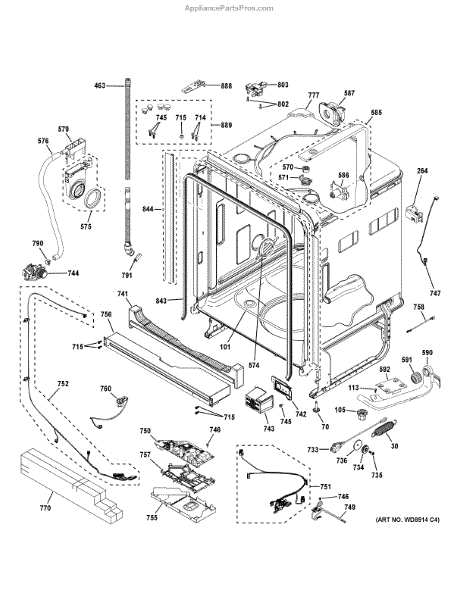

Parts for Ge PDP755SBV1TS: Body Parts (1) Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Spring is an OEM part for GE dishwashers. This part provides the necessary tension to the dishwasher door, allowing it to open and close smoothly and securely. The door spring helps balance the door’s weight, preventing it from falling open too quickly or slamming shut.

Causes of a bad door spring can include wear and tear from frequent use, stretching or breaking due to overloading the door, or damage from improper handling.

Symptoms of a bad Door Spring include:

• The door falling open quickly without resistance
• Difficulty in keeping the door open at a desired angle
• The door slamming shut instead of closing gently
• Unusual noises when opening or closing the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

This upper wash impeller circulates water to the upper spray system during the wash cycle, helping deliver thorough cleaning across dishes on the upper rack and throughout the tub.

• Drives water flow to the upper spray arm/manifold
• Worn or damaged impeller can cause weak spray, poor cleaning, or longer cycle times
• Physical damage (warping, cracks, stripped splines) warrants replacement

• Disconnect power and water before servicing
• Access is typically through the sump/pump area; note impeller orientation during removal
• Inspect mating parts (seal, hub, shaft/splines) and replace if worn
• Hand-tighten fasteners to OEM guidance and verify free rotation before reassembly

The Hub is an OEM replacement part for GE dishwashers. It is the central mechanism which attaches to the tub and facilitates rotation of the upper spray arm above dishes.

Causes of a bad hub include wear from years of repeated rotation, accumulation of hard water scale deposits inside moving parts, or accidental impact damage. This reduces proper function over time.

Symptoms of a bad hub include:

• Loud clunking or grinding noises from the center mechanism
• Reduced cleaning performance on upper racks or portions of dishes
• Dishes showing water spots or soil in sections not adequately rinsed
• Inability to attach or move the upper spray arm assembly smoothly

This OEM GE hub replacement is also compatible with Crosley, and KitchenAid models.

This fill funnel hose directs incoming water from the inlet area into the washer tub to prevent splashing and misdirected flow. It helps maintain proper water routing for reliable fills and reduces chances of internal leaks. What it does:

• Guides incoming water from the fill/inlet area into the tub to avoid spraying or pooling
• Helps prevent water from entering cabinet areas or dripping onto components
• Can resolve symptoms like water spraying near the top of the tub, water pooling under the washer, or irregular fill routing
• Works with the washer's inlet/fill assembly to keep fill flow focused and controlled

• One fill funnel hose

• Disconnect power and shut off water supply before starting any repair
• Replace only with the exact part number shown;
• Inspect nearby fittings, clamps, and seals and replace if damaged to ensure a watertight connection

The Fill Funnel Cap seals the dishwasher's water inlet funnel at the rear of the tub. It creates a tight docking point for the upper rack feed tube, helping prevent leaks and maintain spray pressure for effective upper-rack cleaning.

• Seals the water inlet funnel and helps guide water into the upper wash system
• Helps maintain spray pressure to the upper rack for better cleaning results
• Reduces splashing and potential leaks at the funnel connection
• Symptoms include a cracked/missing cap, water dripping near the rear funnel, or weak cleaning on the upper rack

• Disconnect power and shut off the water supply before servicing
• Pull the upper rack forward to access the rear funnel area
• Release and remove the old cap; clean the sealing surface
• Align and snap/secure the new cap; verify the rack feed tube docks smoothly

This silverware basket conduit is the replacement channel that helps secure and guide the dishwasher silverware basket, restoring proper fit and reducing movement during cycles. It brings back stable basket positioning for safer cleaning. What it does:

• Replaces a worn, cracked, or missing conduit that holds or guides the silverware basket
• Prevents the basket from shifting, rattling, or catching on the rack during wash cycles
• Restores correct basket alignment so utensils are held securely for effective cleaning
• Fits and functions as the OEM-designed support channel for the silverware basket assembly

• Disconnect power and water supply before beginning any repair
• Remove the dishwasher rack to access the conduit; handle racks carefully to avoid damage
• Inspect mounting clips or tabs and remove any broken pieces before installing the new conduit

This flexible silverware bellow seals and guides water flow around the dishwasher silverware basket, helping maintain proper spray circulation and keeping utensils contained for more consistent cleaning results. What it does:

• Replaces a torn or worn bellow that can allow utensils to block spray or shift during a cycle
• Helps direct wash water into the silverware area for more even cleaning
• Prevents small items from falling through gaps beneath the basket
• Reduces the chance of debris collecting where the basket meets the tub

• Disconnect power to the appliance before attempting any service.
• Typically snaps or slides into place; remove the silverware basket for access.
• Inspect surrounding gaskets and the basket for damage; replace if worn.

This heat shield protects the appliance cabinet and nearby components from excessive heat, helping prevent heat damage and maintaining safe operation. It's a direct-replacement metal shield used where high temperatures are present. What it does:

• Deflects and disperses heat away from cabinet panels and internal parts
• Helps prevent scorched paint, melted components, and heat-related wear
• Supports safe oven/dryer operation by controlling heat flow around openings
• Often replaced when shield is warped, rusted, or shows burn marks

• One heat shield

• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding fasteners and insulation; replace any damaged hardware or insulation
• Secure shield with the correct screws/clips; do not force or bend the shield to fit

Size: 10-32 GXTT FLP.595 S

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

The Pulley Cable is an OEM part for GE dishwashers. As a component for proper door operation, the pulley cable works with internal springs to balance the door during opening and closing movements.

Symptoms of a bad door pulley cable include:

• The door lacks proper closing assistance and slams shut
• Difficulty opening or requiring extra force to move the door
• Door unable to fully latch or lock into position

Causes can be fractures in wire strands weakening cable strength over thousands of uses. Extreme bends also damage internal wiring over time.

This OEM part is compatible with select Hotpoint, RCA, and Kenmore models,

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

The Friction Washer is an OEM component specifically designed for GE dishwashers. This friction washer is a thin circular part that creates resistance through surfaces rubbing together. It is often used beneath a mounting nut to prevent components from loosening during operation.

Symptoms of a bad friction washer include loose or separating connections where the washer is installed, such as:

• Drain pump mounting fittings that become detached
• Water connections that leak at the threaded joints
• Door handle mounts that allow play in the mechanism

Causes of failure can be cracks, wear or deformities in the washer that reduce its friction capabilities over time. Vibrations from use may also cause premature wear.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front tub spacer cushions and positions the washer tub to reduce vibration and keep the inner and outer tubs properly aligned during operation. It helps maintain smooth spin cycles and prevents metal-to-metal contact. What it does:

• Centers and supports the front of the washer tub to maintain proper drum alignment
• Absorbs movement to reduce vibration and noise during spin
• Prevents rubbing or contact between the tub and cabinet components
• Can be associated with symptoms like excessive vibration, rubbing sounds, or off-center spins

• Designed for direct replacement; inspect surrounding seals and mounts during service
• Use basic hand tools; follow the washer's service manual for safe disassembly and reassembly
• Disconnect power and water supply before beginning any repair

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Valve Assembly is an OEM replacement part for GE dishwashers. This valve assembly controls the flow of water into the dishwasher during each cycle stage. It regulates water temperature and volume to the desired wash and rinse settings.

Causes of a bad water valve can include mineral buildup interfering with valve function, worn internal seals, or obstruction in the valve inlet or outlet ports.

Symptoms of a bad water valve include:

• Incorrect or inadequate water levels during the cycle
• Inability to reach proper wash or rinse temperatures
• Water not shutting off fully between cycles
• Leaks from the water inlet area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 8-32 t. Includes 12 screws.

This AC harness is the wiring assembly that connects the air conditioning system's electrical components, providing organized power and signal routing for reliable operation. Replaces worn or damaged harnesses to restore proper electrical connections. What it does:

• Routes power and low-voltage signals between A/C components (compressor, fan, controls) for coordinated operation
• Helps prevent intermittent faults caused by loose, frayed, or corroded wires
• Can resolve symptoms such as the A/C not starting, intermittent compressor or fan operation, or blown fuses
• Maintains correct connector fit and wire routing to reduce stress on terminals

• One AC wire harness

• Turn off power at the breaker and confirm zero voltage before servicing
• Match connectors and wire colors; secure harness along original routing to avoid heat or moving-part damage
• Inspect connector terminals and mating components for corrosion—clean or replace as needed

This DC harness is a factory-style replacement wire harness that connects control and power circuits to the appliance's DC motor/control assembly, restoring reliable electrical connection and component operation. What it does:

• Carries power and signal between the control board and the DC motor/control assembly
• Replaces damaged or broken wiring that can cause intermittent operation or loss of function
• Helps eliminate issues like unresponsive controls or motor that won't run when wiring is the cause
• Maintains correct connector fit and circuit routing when installed as intended

• Disconnect power to the appliance before beginning any repair to avoid shock hazard
• Compare connectors and wire routing to the original harness to ensure proper fit and length
• Handle connectors gently; do not force pins or terminals into misaligned sockets
• If the harness shows heat damage, exposed conductors, or melted insulation, replace the entire harness rather than attempting a partial repair

This control box top is the plastic cover that protects the appliance's control board and user controls while keeping the front of the console finished and safe. It helps prevent dust, moisture, and accidental contact with internal electronics. What it does

• Covers and protects the control board and internal wiring behind the console.
• Provides the mounting surface and openings for buttons, knobs or touch interfaces.
• Prevents dirt, lint, and moisture from reaching sensitive electronics.
• Restores a secure, finished appearance to a damaged or cracked console area.

• Always disconnect power to the appliance before beginning work to avoid electrical shock.
• Remove any bezel, screws or clips securing the old top and transfer any required mounting hardware or trim pieces.
• Handle the control board and connectors with care; avoid touching circuit components or bending contact pins.

This tub insulation is the replacement foam/fiber wrap that lines the dryer drum area to help retain heat, reduce exterior cabinet temperature, and dampen operation noise for more efficient, quieter drying. What it does:

• Wraps around the dryer drum/tub to help limit heat loss during cycles
• Helps reduce cabinet surface temperature for safer operation
• Dampens vibration and operating noise from the rotating drum
• Supports consistent drying performance by improving heat retention
• Useful when original insulation is damaged, torn, or missing

• Disconnect power (and gas supply for gas dryers) before servicing
• Access requires removing the dryer cabinet or drum per OEM instructions
• Handle carefully—use gloves and eye protection; avoid breathing any loose fibers
• Reinstall with original fasteners and seal as needed to maintain drum clearance

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Screw is an OEM part for GE dishwashers. This screw is designed for various applications, including securing and fastening components in your GE appliance.

A bad screw can result in issues such as loose or unstable components, improper functioning, or even potential damage to other parts. Causes of a bad screw can include wear and tear over time, improper installation, or exposure to extreme conditions.

Symptoms of a bad Screw include:

• Components becoming loose or detached
• Parts not securely fastened
• Unusual noises or vibrations during operation
• Visible signs of damage or wear on the screw

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch is an OEM replacement part for GE dishwashers. This component not only secures the dishwasher door during operation but also contains the door switch that detects if the door is shut. This dual function ensures the door is both securely locked to prevent water leaks and communicates to the appliance that it's safe to begin operation.

Symptoms of a bad door latch include:

• The dishwasher door not closing or locking securely
• The appliance not starting, attributed to the door switch not detecting a closed door
• Water leaks resulting from an unsecured door
• Visible wear or damage to the latch or switch

Common causes for a malfunctioning door latch can be wear and tear from regular use, mechanical failures that impact the latch’s ability to hold the door closed, or issues with the door switch not accurately detecting the door’s position.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This flexible door gasket seals the dishwasher tub opening to keep wash water inside the cabinet. Replace a worn or flattened gasket to stop leaks and restore a tight, quiet door seal.

• Compresses between the door and tub to prevent water from escaping during wash and rinse cycles
• Helps reduce moisture at the front corners and under the door
• Common failure signs: water leaking at the bottom/front of the door, visible tears, cracks, or permanent flattening of the seal
• Can also help if the door feels loose or doesn't seal evenly

• Disconnect power and turn off water before service
• Open the door and pull the old gasket straight out of the groove; clean the channel of debris and buildup
• To ease installation, warm the new gasket to relax it, then press it into the channel starting at the top center and work evenly down both sides
• Close the door for several minutes to help seat the new seal, then run a short cycle to check for leaks

This tub trims kit replaces the plastic trim around the dryer's drum opening to restore a smooth, finished edge and help prevent clothes snags. It refreshes the dryer opening after wear or minor damage. What it does

• Replaces cracked, broken, or missing trim around the dryer drum opening
• Restores a smooth edge to reduce fabric snags and wear on clothing
• Improves the appearance of the appliance front where the drum meets the cabinet
• Helps maintain proper clearance between the drum and cabinet trim

• One tub trims kit

• Disconnect power before starting any repair
• Removal of the dryer door or front panel may be required depending on model
• Use common hand tools; handle trim pieces carefully to avoid scratches
• Inspect surrounding seals and parts during replacement and replace if damaged

The Countertop Mounting Bracket is an OEM part for GE dishwashers. It is used to secure the dishwasher to the underside of the countertop, ensuring stability and preventing movement during operation. This bracket is essential for maintaining the dishwasher's position and preventing it from tipping or shifting.

Over time, mounting brackets can become damaged or loose due to repeated vibrations, improper installation, or wear and tear. A compromised bracket may fail to hold the dishwasher securely, leading to potential operational issues and safety hazards.

Symptoms of a bad mounting bracket include:

• The dishwasher wobbling or moving during cycles
• Visible damage or bending of the bracket
• The dishwasher not being level or properly aligned with the countertop
• Increased noise or vibrations during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
