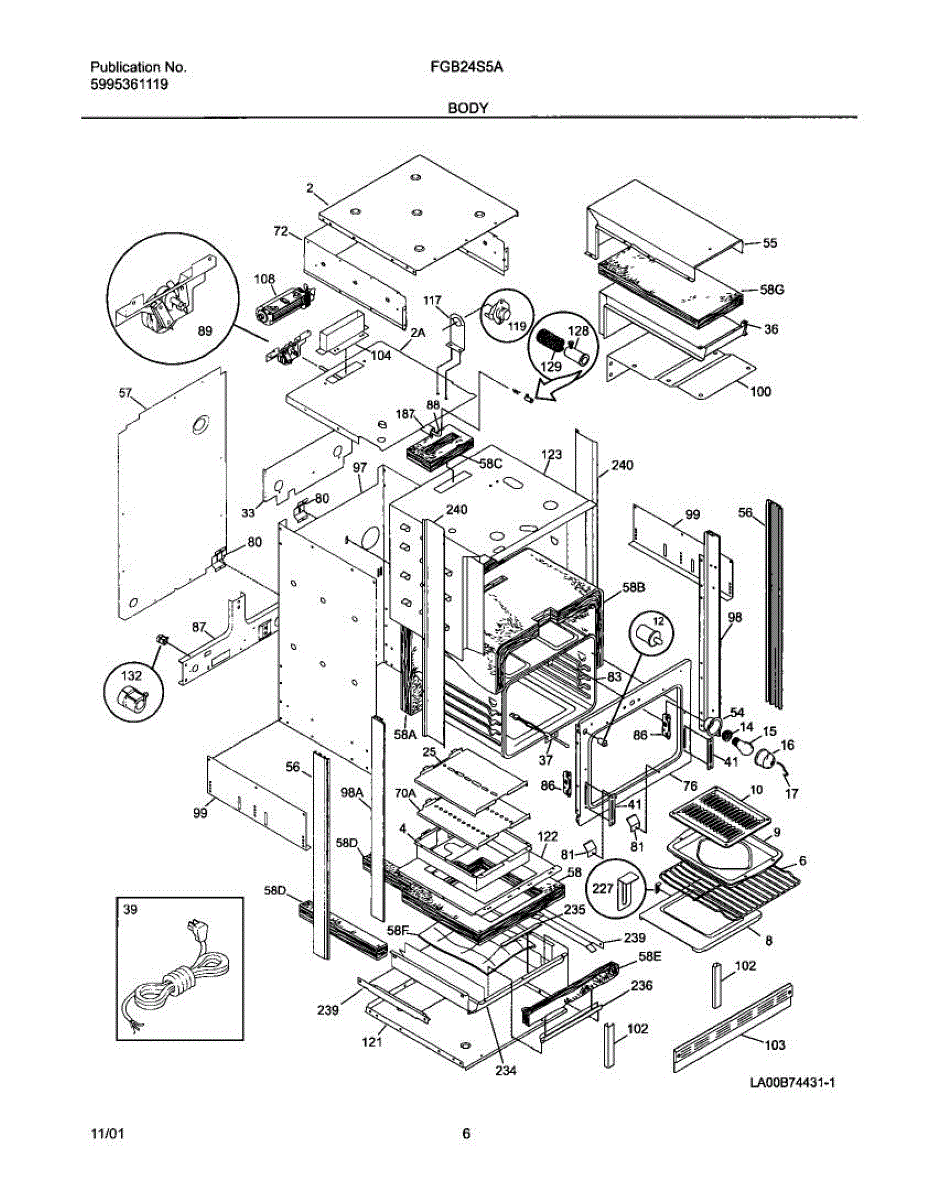

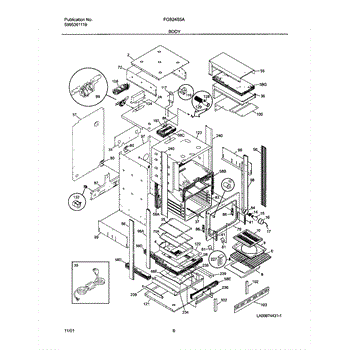

Parts for Frigidaire FGB24S5ASA: 07 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light won't turn off when door closes? This door-mounted light switch is often the culprit. Easy 5-minute fix—just unplug power and swap it out.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Insulation shield that protects oven components from heat damage. Replace this guard if cracked, deteriorated, or missing to restore thermal protection.

Fixes oven door won't unlock or F9 error codes. This door lock catch restores proper latching when the door stays locked after cleaning cycles.

Insulation shield that installs at the base of your oven cavity. Replace this guard if cracked, damaged, or missing to maintain proper insulation coverage.

Rubber or plastic bushing that cushions and supports the oven door. Replace if cracked, worn, missing, or causing door misalignment or rattling.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This angle bracket secures the range's burner box assembly to the cooktop frame, keeping the gas burner and components aligned for safe, reliable operation. Fits into the burner box mounting points to stabilize the assembly. What it does:

• Holds the burner box in place to prevent movement and misalignment
• Helps maintain proper burner positioning for consistent ignition and flame
• Reduces vibration and rattling from the cooktop assembly
• Resolves symptoms like a loose or shifted burner box, unusual noises, or intermittent burner misalignment

• One angle burner box mounting bracket

• Turn off all power and gas to the appliance before beginning work
• Basic hand tools are typically required; tighten mounting fasteners to secure the bracket
• Inspect surrounding gaskets and hardware, and replace any damaged fasteners for a secure fit

This 10-16 x 1-1/4 screw secures appliance panels and components, restoring proper fit and preventing loose parts. Use it when fasteners are missing, stripped, or causing rattle and misalignment. What it does:

• Fastens trim, brackets, or interior panels to restore secure attachment
• Stops rattling or vibration caused by loose hardware
• Replaces missing or damaged screws to maintain safe operation
• Matches OEM thread and length for correct fit in specified locations

• Disconnect power and empty appliance as needed before servicing
• Use the correct screwdriver or bit to avoid cam-out or head damage
• Do not overtighten; snug until parts seat to prevent striping or cracking
• Replace all matching screws for consistent fit

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement mounting screw secures refrigerator panels, brackets, and trim to the chassis. Needed when original fasteners are stripped, missing, or damaged.
