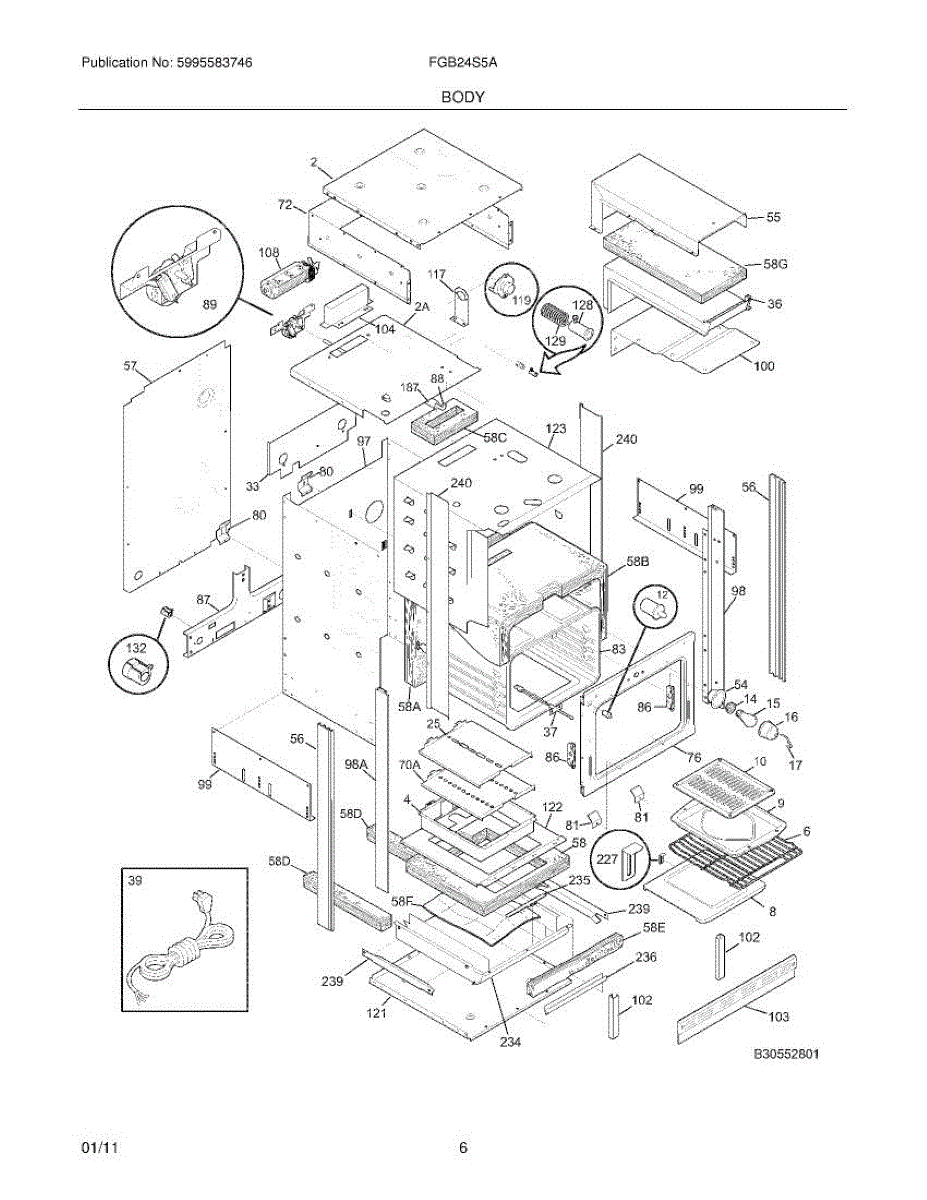

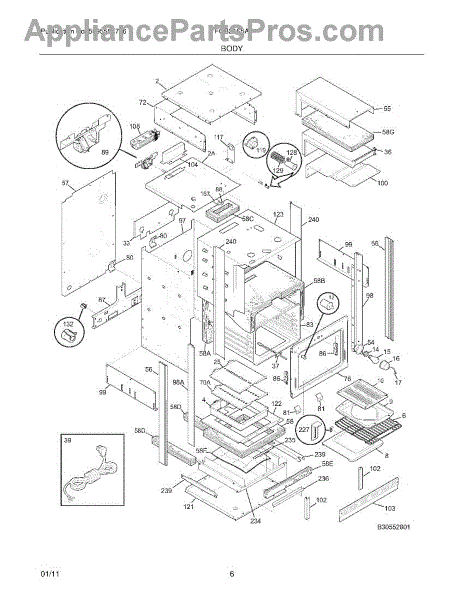

Parts for Frigidaire FGB24S5ASE: 07 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light won't turn off when door closes? This door-mounted light switch is often the culprit. Easy 5-minute fix—just unplug power and swap it out.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Insulation shield that installs at the base of your oven cavity. Replace this guard if cracked, damaged, or missing to maintain proper insulation coverage.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Replacement door insulation for wall ovens. Installs between door panels to improve heat retention. Replace if torn, compressed, or missing.

Insulation pad for ovens and wall ovens. Installs between outer cabinet and oven cavity. Replace if worn, damaged, missing, or deteriorating.

Insulation shield that protects oven components from heat damage. Replace this guard if cracked, deteriorated, or missing to restore thermal protection.

This outer front panel replaces a damaged or dented cabinet front to restore the appliance's appearance and provide support for the door and front-mounted components. Durable sheet-metal construction keeps internal parts protected. What it does

• Restores the appliance's exterior appearance after dents, cracks, or corrosion.
• Provides structural support and mounting surface for the door, latch, and lower trim.
• Protects internal components from dust, debris, and accidental contact.
• Helps ensure proper door alignment and sealing when installed correctly.

• One outer front panel (quantity: 1)

• Disconnect power (and gas/water if applicable) before beginning any repair.
• Installation typically requires removing the door, trim, and/or control console to access mounting fasteners.
• Handle the panel carefully to avoid sharp edges and to prevent further cosmetic damage.
• Verify all mounting tabs and screws are secure and that the door aligns and closes properly after installation.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix an oven door that won't lock or unlock during self-clean with this door latch motor. Common fix for lock assembly failures. Moderate DIY repair.

Rubber or plastic bushing that cushions and supports the oven door. Replace if cracked, worn, missing, or causing door misalignment or rattling.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This angle bracket secures the range's burner box assembly to the cooktop frame, keeping the gas burner and components aligned for safe, reliable operation. Fits into the burner box mounting points to stabilize the assembly. What it does:

• Holds the burner box in place to prevent movement and misalignment
• Helps maintain proper burner positioning for consistent ignition and flame
• Reduces vibration and rattling from the cooktop assembly
• Resolves symptoms like a loose or shifted burner box, unusual noises, or intermittent burner misalignment

• One angle burner box mounting bracket

• Turn off all power and gas to the appliance before beginning work
• Basic hand tools are typically required; tighten mounting fasteners to secure the bracket
• Inspect surrounding gaskets and hardware, and replace any damaged fasteners for a secure fit

This shield is a protective cover that helps guard internal fridge components and direct airflow inside the cabinet for reliable operation. It replaces a worn, damaged, or missing shield to help maintain proper airflow and component clearance. What it does:

• Covers and protects internal components from contact, debris, and incidental damage
• Helps direct airflow for consistent cooling and efficient evaporator performance
• Prevents ice buildup and interference with moving parts when installed correctly
• Commonly replaced when cracked, warped, or missing after service or impact

• One replacement shield

• Disconnect power to the appliance before starting any repair
• Installation generally requires removing interior panels or shelving to access mounting points
• Keep track of any screws or clips and reuse original hardware

This wiring harness connects key electrical components to the appliance's control system, restoring reliable power and signal routing so controls and features operate correctly. What it does:

• Routes power and signal between the control board and components (motors, lights, sensors)
• Replaces damaged or faulty wiring that can cause intermittent operation or failure
• Restores consistent electrical connections for proper feature function
• Helps eliminate issues caused by frayed, corroded, or broken connector leads

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the original harness before installation
• Route harness clear of sharp edges and moving parts; secure connectors firmly

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Replacement mounting screw for ovens and ranges. Secures internal components and panels. Order a new screw if the original is stripped, missing, or damaged.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement mounting screw secures refrigerator panels, brackets, and trim to the chassis. Needed when original fasteners are stripped, missing, or damaged.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't heat after self-clean cycle? This safety thermostat protects control components by shutting off power when temperatures exceed safe limits.
