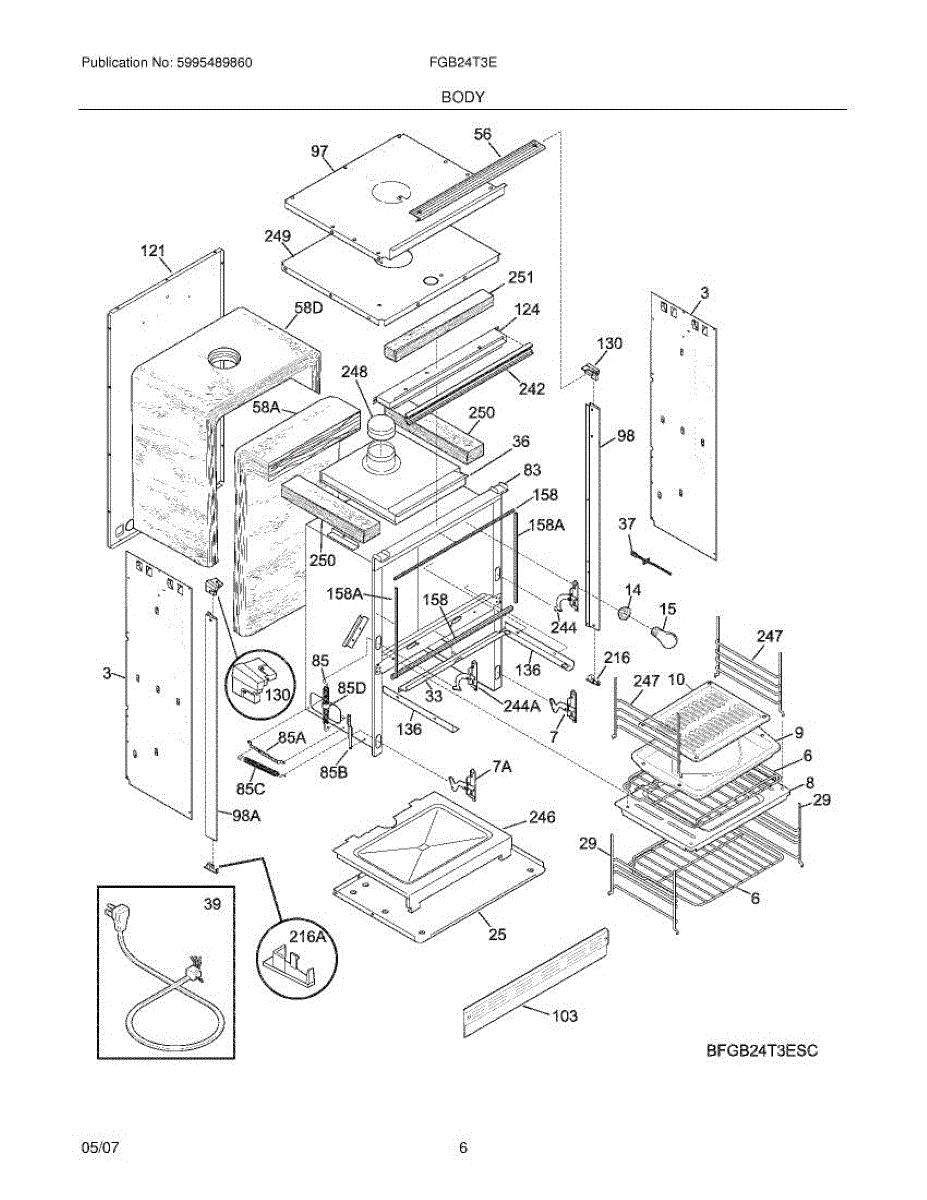

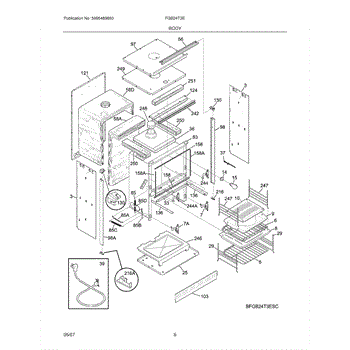

Parts for Frigidaire FGB24T3EBD: 07 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

A lower heat shield that protects nearby components from excess heat and helps maintain safe operation. Fits where a metal shield is required beneath heating elements or burners to deflect heat and reduce heat transfer. What it does:

• Protects surrounding parts and insulation from direct heat exposure
• Helps prevent heat-related damage to wiring, panels, and hoses
• Maintains safer operating temperatures around the heating assembly
• Can reduce heat transfer that may cause discoloration or premature wear

• High-level replacement only; refer to your model's service manual or parts diagram for exact location and fastener details
• Power/gas must be turned off and appliance fully cooled before beginning any work
• Use appropriate tools and retain all screws/fasteners; replace any damaged fasteners with OEM-specified parts

This heat shield is a sheet-metal protector that blocks and redirects oven or broiler heat to protect nearby components and cabinet surfaces. It helps prevent heat damage and keeps the oven's internal parts functioning safely. What it does:

• Shields wiring, insulation, and adjacent parts from direct broil/upper-oven heat
• Helps maintain proper airflow around oven components to reduce hot spots
• Reduces risk of heat-related component failure and discoloration of surrounding surfaces
• Commonly used behind the broil element or on the oven cavity wall where heat exposure is highest

• One oven heat shield

• Disconnect power (or unplug) and shut off gas supply before servicing
• Wear gloves and eye protection; sheet metal edges can be sharp
• Remove oven racks and any panels indicated to access the shield
• Reinstall fasteners snugly; do not overtighten. Test oven function after reassembly

This oven temperature probe detects the oven's internal temperature and delivers readings to the control board so the oven can regulate heat more accurately for consistent cooking results. Ideal when your oven is giving incorrect temperature feedback. What it does:

• Measures internal oven temperature and sends the signal to the oven control or thermostat.
• Helps the control board maintain set temperatures for even baking and roasting.
• Common symptoms that indicate a failing probe: oven runs too long, doesn't reach set temperature, or produces uneven cooking.
• Replaces a damaged or erratic probe that causes incorrect temperature readings.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Access typically requires removing the oven access panel or control panel; handle the connector and wiring gently.
• Verify connector orientation before installation; secure wiring away from heating elements.

This angle rack guide is the support bracket that secures and helps a cookware or storage rack slide smoothly and stay aligned. It restores proper rack movement and prevents the rack from catching or tilting during use. What it does:

• Guides and supports a sliding rack so it moves in and out smoothly
• Keeps the rack aligned to prevent tipping or binding
• Replaces worn or damaged guides that cause uneven rack travel
• Helps reduce noise from a loose or misaligned rack

• One angle rack guide as shown

• Verify correct side and orientation before installation; part may be left- or right-side specific
• Remove power (or disconnect appliance) and empty racks before starting work
• Use common hand tools; avoid forcing the guide to prevent cabinet or rail damage
• If fasteners are stripped or damaged, replace them with OEM-equivalent hardware

Left hand side. For right hand use 5303205940

Right hand side. For left hand use 5303205939

This replacement oven bottom panel restores the lower interior surface of the oven cavity, covering insulation and providing a durable surface for the bake area. It helps maintain proper airflow and protects internal components from spills and debris. What it does:

• Covers and protects the oven's lower cavity, shielding insulation and components from spills and food debris
• Helps direct heat and air flow across the oven floor for more consistent baking
• Replaces panels that are rusted, warped, dented, cracked, or missing
• Reduces risk of debris falling into lower compartments that can cause smoking or burning odors

• One oven bottom panel

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Remove oven racks and any mounting screws or clips securing the old panel; save hardware
• Handle edges carefully—metal panels can be sharp; wear gloves and eye protection

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
