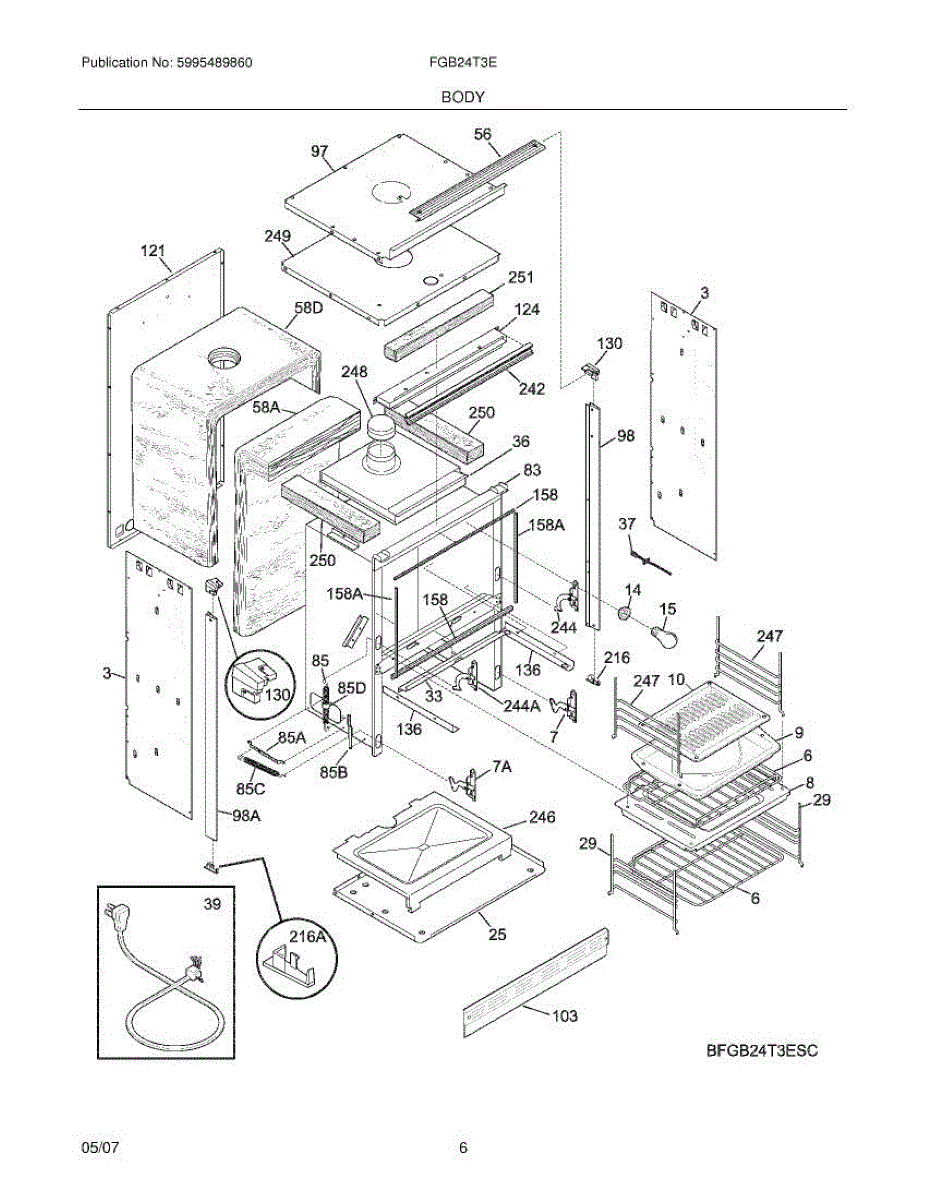

Parts for Frigidaire FGB24T3ESD: 07 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

A lower heat shield that protects nearby components from excess heat and helps maintain safe operation. Fits where a metal shield is required beneath heating elements or burners to deflect heat and reduce heat transfer. What it does:

• Protects surrounding parts and insulation from direct heat exposure
• Helps prevent heat-related damage to wiring, panels, and hoses
• Maintains safer operating temperatures around the heating assembly
• Can reduce heat transfer that may cause discoloration or premature wear

• High-level replacement only; refer to your model's service manual or parts diagram for exact location and fastener details
• Power/gas must be turned off and appliance fully cooled before beginning any work
• Use appropriate tools and retain all screws/fasteners; replace any damaged fasteners with OEM-specified parts

This heat shield is a sheet-metal protector that blocks and redirects oven or broiler heat to protect nearby components and cabinet surfaces. It helps prevent heat damage and keeps the oven's internal parts functioning safely. What it does:

• Shields wiring, insulation, and adjacent parts from direct broil/upper-oven heat
• Helps maintain proper airflow around oven components to reduce hot spots
• Reduces risk of heat-related component failure and discoloration of surrounding surfaces
• Commonly used behind the broil element or on the oven cavity wall where heat exposure is highest

• One oven heat shield

• Disconnect power (or unplug) and shut off gas supply before servicing
• Wear gloves and eye protection; sheet metal edges can be sharp
• Remove oven racks and any panels indicated to access the shield
• Reinstall fasteners snugly; do not overtighten. Test oven function after reassembly

Fix F10 or F30 error codes and inaccurate oven temperatures with this internal temperature sensor. Monitors heat levels for consistent cooking.

Replacement power cord for gas ranges and ovens. Connects appliance to wall outlet. Needed when original cord is damaged, chewed, cracked, or missing.

White plastic end cap for oven control panel. Covers the exposed edge of the control console for a finished look. Replace if cracked, broken, or missing.

Support bracket that secures and guides your oven rack for smooth sliding. Replaces cracked, bent, or missing guides that cause racks to catch or tilt.

Left hand side. For right hand use 5303205940

Right hand side. For left hand use 5303205939

This replacement oven bottom panel restores the lower interior surface of the oven cavity, covering insulation and providing a durable surface for the bake area. It helps maintain proper airflow and protects internal components from spills and debris. What it does:

• Covers and protects the oven's lower cavity, shielding insulation and components from spills and food debris
• Helps direct heat and air flow across the oven floor for more consistent baking
• Replaces panels that are rusted, warped, dented, cracked, or missing
• Reduces risk of debris falling into lower compartments that can cause smoking or burning odors

• One oven bottom panel

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Remove oven racks and any mounting screws or clips securing the old panel; save hardware
• Handle edges carefully—metal panels can be sharp; wear gloves and eye protection

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Secures panels, brackets, and internal components in your refrigerator. Replace when the original fastener is missing, stripped, or corroded for proper fit.
