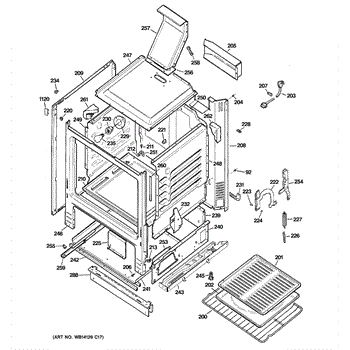

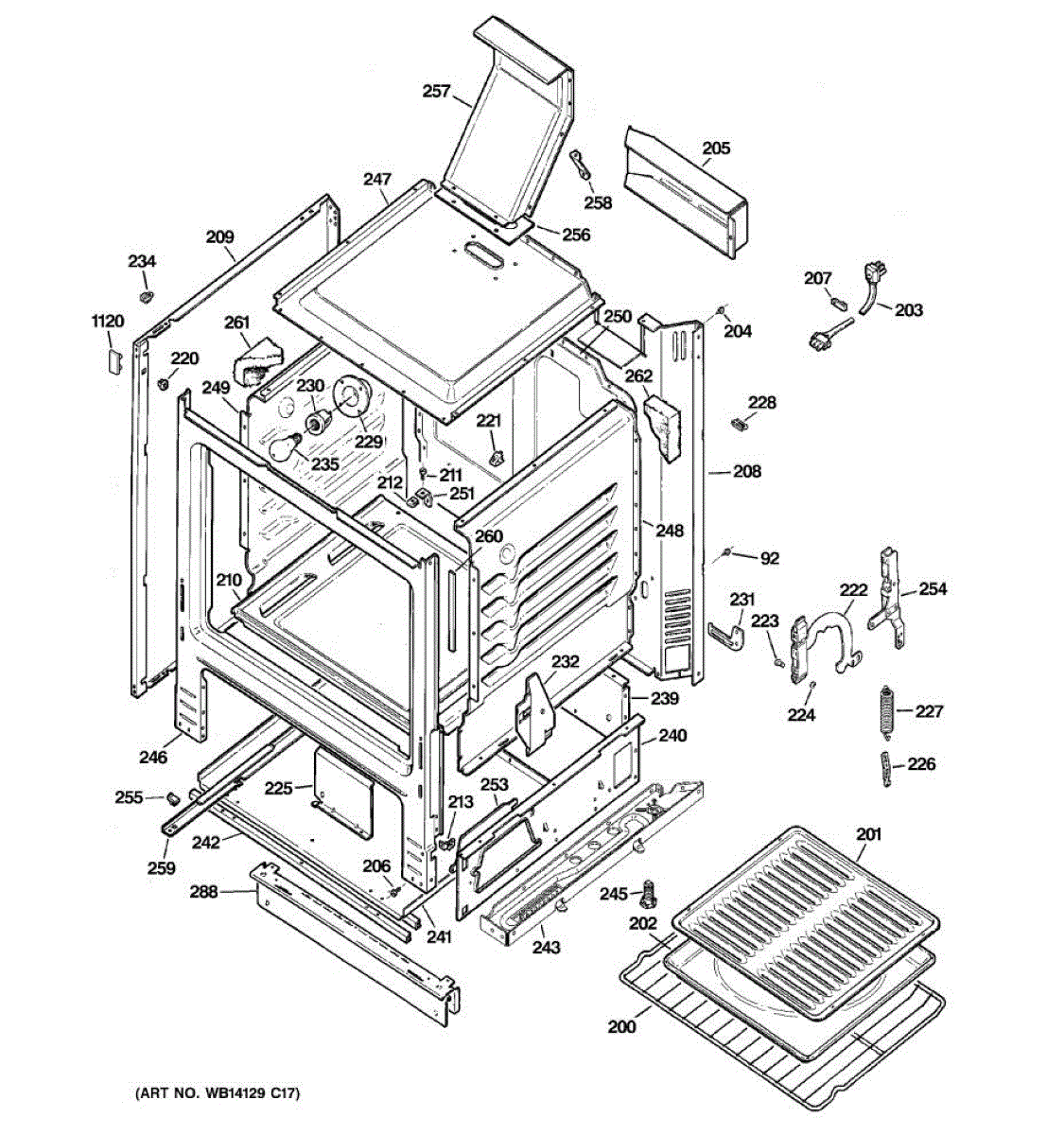

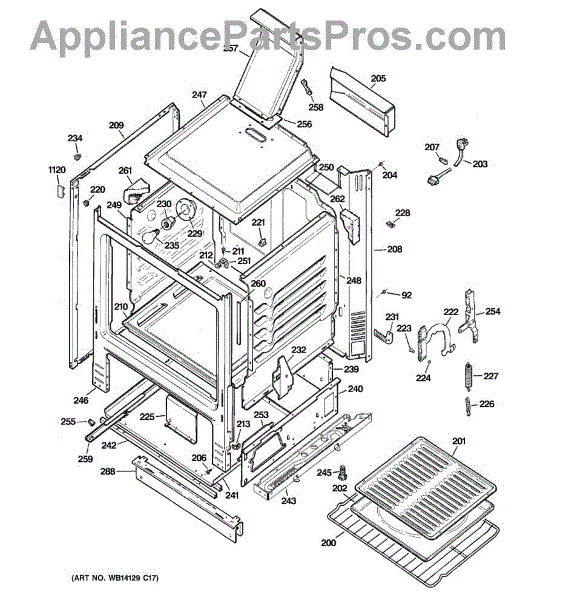

Parts for Hot Point RGB530DEP2WW: 03 - Body Parts

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replacement power cord for gas ranges. Connects your unit to the wall outlet. Replace if cord is worn, cut, heat-damaged, or causing burning smells.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Back panel for gas ranges. Installs on the rear exterior of the unit. Replace if the original panel is cracked, dented, rusted, or missing.

Side panel for gas ranges. Covers and protects the exterior side of your range. Order a replacement if your panel is cracked, damaged, or discolored.

8-18 x 1/2 inch screw for gas range assembly. Replace when missing, stripped, or corroded during oven repairs or maintenance work.

Speed nut clip secures your range oven bottom panel. Replace when missing or damaged to prevent panel rattling. Verify fit with your model number.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

This rubber grommet cushions and seals a panel opening to protect wires, hoses or tubing from chafing and vibration. It helps prevent wear and keeps wiring routed cleanly through metal or plastic panels. What it does:

• Provides a protective, vibration-dampening barrier where wiring or tubing passes through a hole
• Helps stop chafing that can cause exposed insulation or hose damage
• Reduces noise from vibration where parts contact a cabinet or chassis
• Keeps the opening sealed against debris and light moisture intrusion

• One rubber grommet as shown

• Disconnect power and water before accessing panels
• Inspect the opening and mating surfaces; remove rust or sharp edges before installing
• Press grommet into the hole until fully seated; ensure wiring or tubing is routed without pinching
• Replace grommet if torn, hardened, or deformed; use only the specified size for a secure fit

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

This is the left side hinge guard. For right side use WB34K3.

This is the right side hinge guard. For left side use WB34K4.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Left hand side

Right hand side

Replaces cracked or damaged lower oven floor panel. Restores heat protection and support for cookware. Needed when panel is warped, sagging, or broken.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

Size: 24 inches.

Metal angle support bracket that secures interior panels, shelves, or trim inside your range. Replace if cracked, bent, or missing to maintain proper alignment.

Replace your range's access spring cover if it's cracked, broken, or missing. This protective housing installs over the spring mechanism for a complete look.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Broiler stop bumper for gas ranges. Installs on the broiler drawer to prevent overtravel and cushion closure. Replace if cracked, broken, or missing.

Oven vent assembly for gas ranges. Mounts inside the oven cavity to channel heat and steam. Replace if cracked, damaged, or missing for proper ventilation.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Bottom left range slide.

Bottom right oven rack slide for gas ranges. Guides and supports oven racks for smooth gliding. Replace if cracked, bent, or missing for proper rack operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap that fits around your gas range oven cavity. Replace this part if the original insulation is torn, compressed, missing, or degraded.

Insulation panel that installs on the back of your gas range oven cavity. Replace if damaged, deteriorated, missing, or no longer providing heat retention.

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.

Replacement door bumper for electric and gas ranges. Prevents door from slamming and protects cabinet finish. Replace if worn, cracked, or missing.
