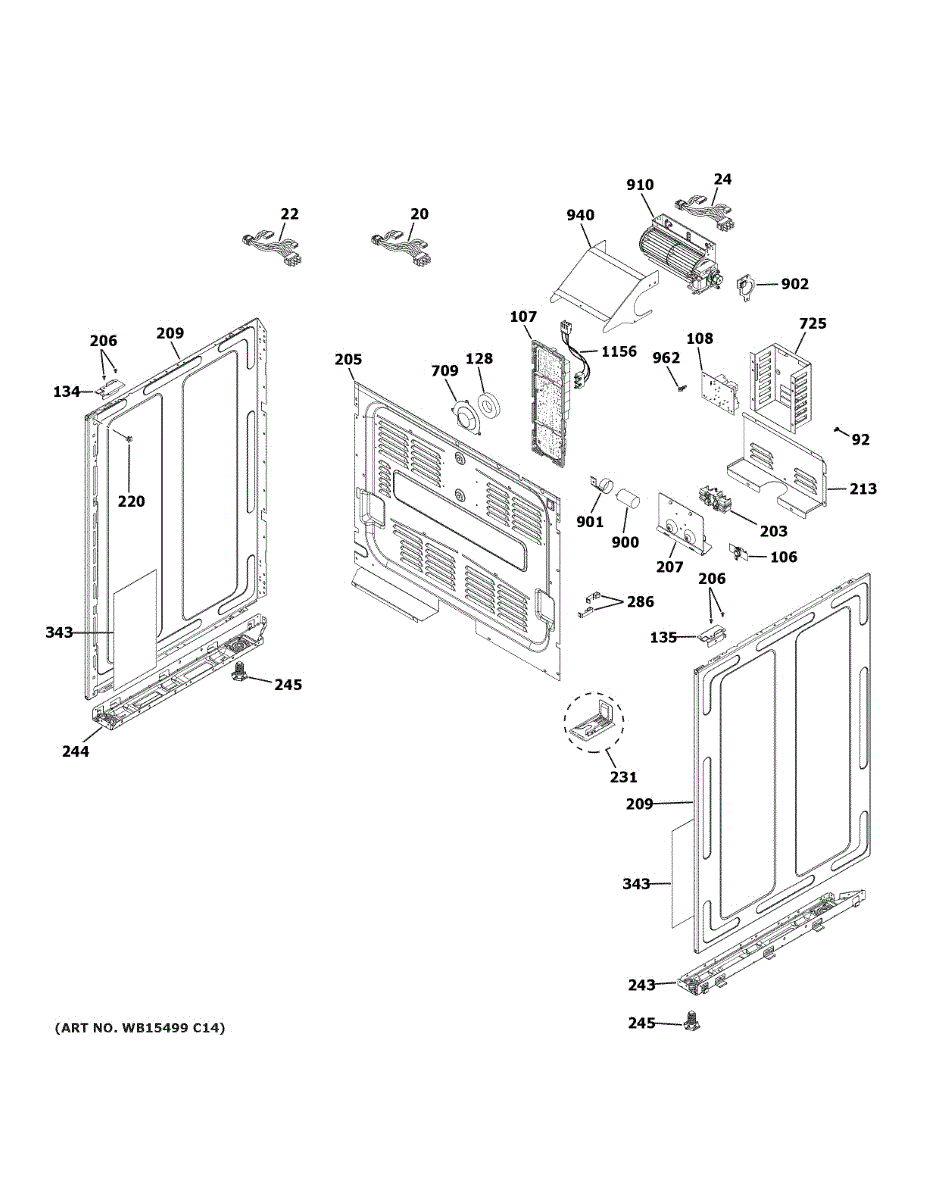

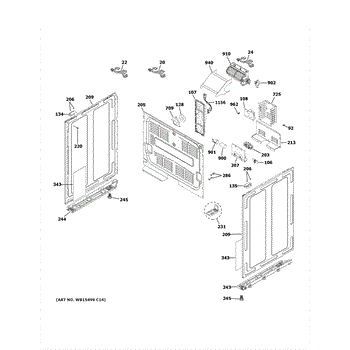

Parts for Ge CES750P3M2D1: Body Parts

This high-limit thermostat cuts power when oven temperatures climb above safe limits, protecting the appliance from overheating. Replacing a failed limit switch restores normal heating control and safety. What it does

• Opens the heating circuit when internal temperatures exceed the safe threshold to prevent overheating.
• Acts as a safety cutoff in the oven's temperature control system.
• Common symptoms of a failing part: no heat, intermittent heating, or the oven shutting off unexpectedly.
• Replaces the appliance's factory high-limit/limit switch to restore proper safety operation.

• Always disconnect power at the breaker before diagnosing or replacing the part.
• Avoid bending the thermostat or stressing terminals; secure the part to the mounting bracket per service literature.

This is the RC17 machine control assembly with relay and mounting frame — a direct-replacement control used to restore proper control and switching functions in compatible GE appliances. Replaces a failed control/relay assembly to help return the unit to normal operation. What it does:

• Houses the RC17 control board and relay to manage switching and control signals for the appliance
• Replaces a worn or failed control that causes intermittent operation or unresponsive controls
• Restores reliable relay switching that can prevent starters or motors from running incorrectly
• Helps address symptoms such as unit not starting, no response from control panel, or intermittent cycling

• One RC17 machine control assembly with relay and mounting frame

• Disconnect all power before starting; electrical shock hazard if not de-energized
• Transfer any existing wiring harnesses and follow wire colors/locations exactly; follow your wiring diagram
• Use basic hand tools for mounting; ensure the frame and connector are secured to prevent vibration

This daughter relay board is a small relay module that mounts to the main control board to switch heater and motor circuits. Replacing a failed relay board restores reliable control switching and helps resolve intermittent operation. What it does

• Contains one or more relay contacts that open and close high-current circuits under control-board command
• Used to switch components like the heating element, motor or compressor when the control signals are present
• May cause symptoms such as no heat, motors not starting, or intermittent operation when the relay contacts fail
• Designed to work with the matching main control board and connector harness for a direct replacement

• One daughter relay board

• High-level replacement only; disconnect power at the appliance breaker or unplug before servicing
• Handle the board by the edges and avoid static discharge—use a grounded wrist strap if available
• Verify matching connectors and orientation before securing the board; do not force connectors

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This terminal block bracket secures the oven/range terminal block to the appliance chassis, keeping power connections stable and reducing strain on wiring. It restores a firm mounting point for safe electrical connections. What it does:

• Holds the terminal block in place so power wires stay securely connected
• Helps prevent wire movement that can cause loose connections or arcing
• Restores proper alignment for terminal screws and wire routing
• Addresses issues like intermittent power, sparks at the terminal area, or a loose-feeling connection

• Disconnect all power at the breaker or unplug the appliance before starting
• Remove outer panels or access covers to reach the terminal area; keep hardware for reassembly
• Inspect terminal block and wiring for damage; replace any frayed or burnt wires before reassembly
• Tighten terminal screws to manufacturer torque and ensure bracket seats flush against the chassis

This support base replaces the left lower support used to stabilize and align the appliance's lower assembly, restoring proper fit and reducing vibration. It helps keep moving parts supported during normal operation. What it does

• Provides structural support for the appliance's lower assembly and related components.
• Restores proper alignment to reduce rubbing, vibration, or uneven movement.
• Helps prevent excessive wear on brackets, panels, and adjacent parts.
• Safe, commonly used when the left support is cracked, broken, or warped.

• Disconnect power (and gas, if applicable) before beginning any repairs.
• Handle sharp sheet-metal edges and wear gloves and eye protection.
• Require basic hand tools to remove panels and fasteners; keep hardware for re-use if undamaged.
• If other mounting hardware or adjacent parts are damaged, inspect and replace as needed for secure installation.

This support base secures and stabilizes the appliance cabinet/frame so doors and components align properly and operate smoothly. Replaces worn or broken right-side lower support to restore correct support and fit. What it does:

• Provides structural support for the appliance cabinet/frame on the right side
• Helps maintain proper door alignment and prevent sagging or uneven gaps
• Reduces vibration and rattling related to a compromised support
• Restores correct mounting for adjacent components or trim

• Disconnect power and empty doors/drawers before starting any repair
• Remove relevant trim or access panels to reach the support; keep fasteners for reuse
• Replace using the original mounting locations; do not force or bend surrounding panels

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This panel side foil is a decorative side trim that restores the appliance's finished appearance and helps protect the cabinet edge from everyday wear. It's a direct-replacement exterior trim piece. What it does

• Covers and protects the outer edge of the appliance panel or door to maintain a clean, finished look
• Hides scratches, nicks, or peeled paint along the panel edge
• Restores consistent appearance after panel or door repair or replacement
• Keeps the cabinet edge sealed from light contact and minor abrasion

• One panel side foil

• High-level replacement: remove the outer panel or door to access the existing foil before installing the new piece
• Use care to avoid scratching the new foil during installation; soft cloths and non-marring tools recommended
• If adhesive or fasteners are present on the original, remove old adhesive residue and follow OEM attachment method

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

This capacitor holder is the molded mounting retainer that secures a dryer/motor capacitor in place, preventing movement and ensuring stable connections for reliable motor and control operation. What it does

• Holds the capacitor firmly in the appliance cabinet to prevent vibration and contact with other components.
• Keeps capacitor terminals accessible and positioned for secure electrical connections.
• Helps stop intermittent motor starts or noise caused by a loose or shifting capacitor.
• Provides the correct fit and alignment for compatible OEM capacitors and wiring harnesses.

• One capacitor holder mounting retainer

• Disconnect power to the appliance before beginning work.
• Discharge the capacitor fully before handling to avoid shock.
• Use basic hand tools; inspect surrounding wiring and fasteners and replace any damaged components.

The Cooling Fan Sensor is an OEM replacement part for GE ovens and ranges. It is a critical component that monitors and regulates the operation of the cooling fan, ensuring proper ventilation and temperature control within the appliance.

Symptoms of a bad cooling fan sensor:

• Overheating issues, with the oven or range becoming excessively hot
• Failure of the cooling fan to turn on or operate correctly
• Error codes or warning lights related to temperature or ventilation problems
• Potential safety hazards due to inadequate cooling and heat buildup

Causes of a faulty cooling fan sensor can include exposure to high temperatures over time, electrical malfunctions, or physical damage to the sensor or its wiring.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ovens and ranges.

This tangential blower circulates air across oven/microwave components to help cool electronics and maintain proper airflow. Replaces a worn or failed blower to restore cooling and reduce overheating risks. What it does:

• Moves air along the appliance's internal components to help dissipate heat
• Helps prevent overheating of control electronics and nearby parts
• Can stop whining or rattling noises when a worn fan is replaced

• One tangential blower assembly

• Disconnect power to the appliance before starting any repair
• Follow the appliance manufacturer's service instructions and wiring diagrams
• Handle with care around sharp sheet metal and fragile components

This standoff secures and isolates the oven power control module from the range chassis, helping keep the control electronics stable and properly spaced for safe operation. Replaces worn or broken mounting standoffs. What it does:

• Provides a stable mounting point for the power control module or control board
• Maintains proper clearance and insulation between the control and metal chassis
• Prevents movement that can cause loose connections, arcing, or intermittent control faults
• Helps reduce vibration and stress on control board components

• Disconnect power to the appliance before inspecting or replacing the standoff
• Use only the exact replacement standoff to maintain insulation and spacing
• If the control board shows damage, inspect the electronic assembly and wiring for additional issues
