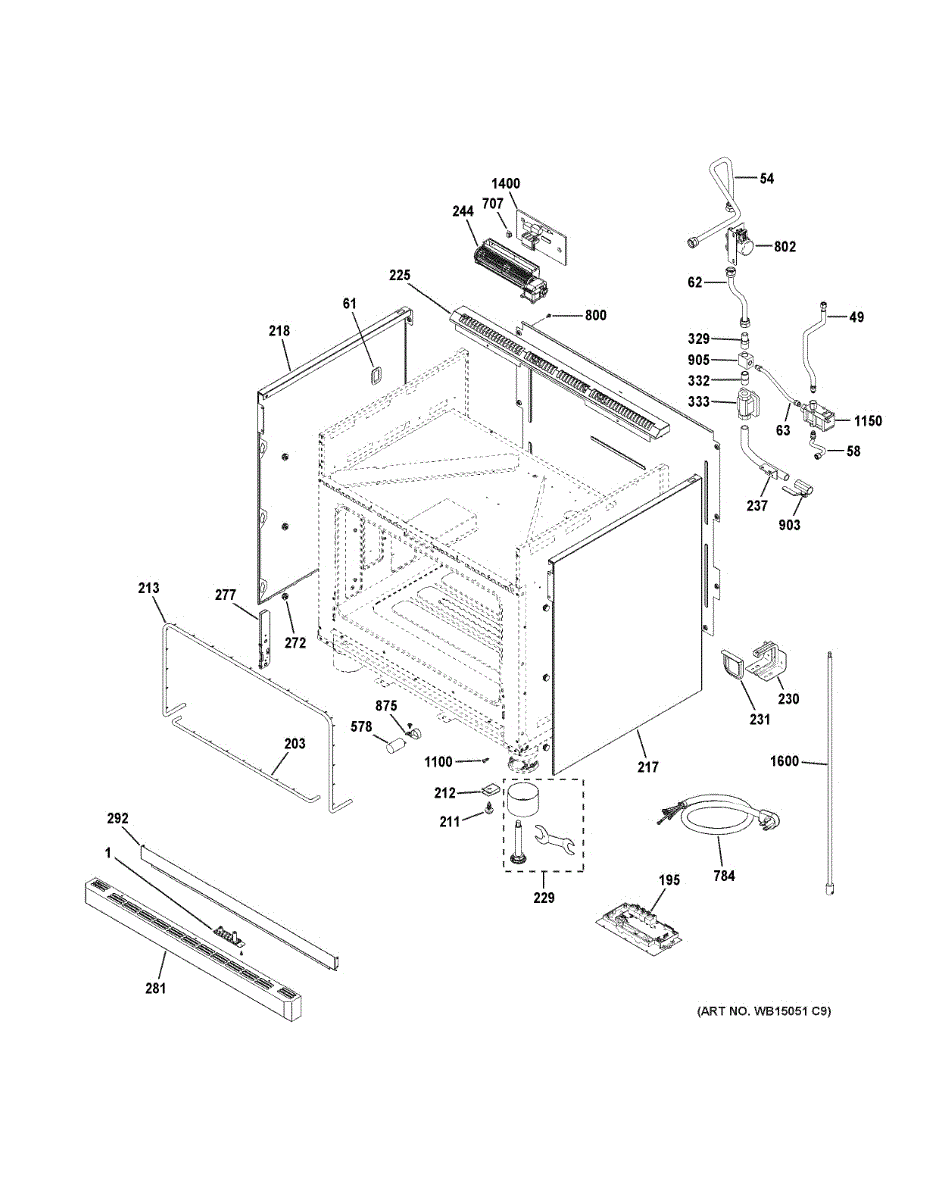

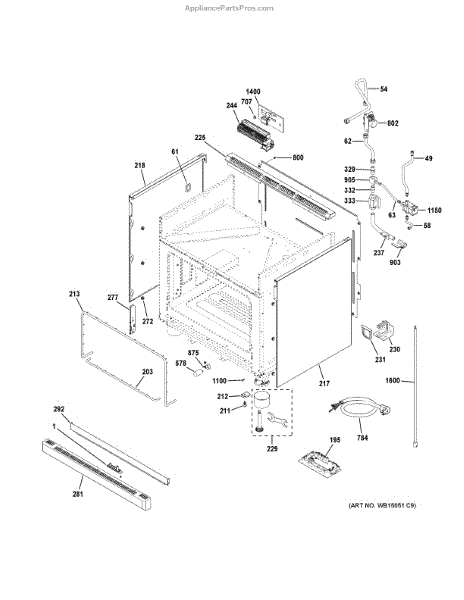

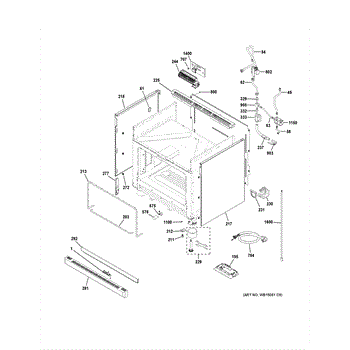

Parts for Ge CGY366SEL1SS: Body Parts

This wire bushing protects appliance wiring where wires pass through metal or plastic panels, helping prevent chafing and shorts. It restores a safe insulating barrier to wiring harnesses and terminals. What it does:

• Cushions and isolates wires where they pass through openings to prevent abrasion and wire damage
• Helps stop rubbing that can wear insulation and cause arcing or shorts
• Reduces risk of intermittent power, blown fuses, or burning smells from damaged wiring
• Restores proper routing and strain relief for affected harnesses

• Remove power to the appliance before accessing wiring; disconnect power at the breaker or unplug.
• Inspect surrounding wire insulation and harness for damage; replace any wires that show charring or exposed conductors.
• Push the bushing into the opening until seated, then route the wire through the bushing to ensure a snug fit.

This relay board assembly is the control relay module that routes power to a refrigerator's major components. Replacing a faulty relay board restores reliable starting and power distribution for cooling and related functions. What it does

• Directs electrical power to the compressor and other major components via relays
• Replaces a failed relay board that can cause a refrigerator not to start or run intermittently
• Can stop symptoms like repeated relay clicking, no cooling, or a compressor that won't engage
• Works as the electrical switching interface between the main control and high-current components

• One relay board assembly

• Disconnect power before servicing to avoid electrical shock
• Handle the board by the edges and avoid touching contacts or components
• Verify connectors are fully seated and routed away from moving parts before restoring power

Size: 8-18 x 1/2 inch.

This anti-tip bracket secures a freestanding range or oven to the floor or wall to help prevent tipping during normal use, improving safety and stability. Simple, durable bracket designed to restore the factory anchoring point. What it does:

• Anchors the rear/base of a freestanding range to help prevent the unit from tipping forward
• Reduces rocking or shifting when opening heavy oven doors or sliding cookware
• Restores the proper mounting point after damage or missing hardware
• Helps address symptoms like a range that tilts or moves when pressure is applied

• One anti-tip bracket

• Follow the appliance OEM installation instructions; bracket mounts to floor or wall framing—locate a stud or secure to recommended substrate
• Turn off and disconnect power (and gas if applicable) and remove access panels as required before beginning work
• Use proper fasteners for your floor/wall material; do not rely on adhesive or weak anchors

This anti-tip brace secures the range to the floor or wall to help prevent the appliance from tipping forward when a heavy load is on an open oven door or when pressure is applied to the top edge. It restores a key safety restraint and helps stabilize the appliance. What it does

• Anchors the range to reduce forward tipping when the oven door is open or heavy items are placed on the door
• Helps prevent accidents and appliance movement during normal use
• Works with the range's built-in leveling and mounting points to provide a secure attachment
• Commonly replaced after a move, installation, or if the original bracket is damaged or missing

• One anti-tip brace

• Follow the appliance installation manual for correct placement and mounting location
• Unplug the appliance (or shut off power) and remove access panels as needed before installing
• Use appropriate fasteners for your floor/wall material; secure to framing or floor as specified

A 45 mm tangential blower that restores directed airflow in heating and cooling cavities to help maintain even temperatures and protect internal components. Fits factory blower mounts and connects to existing wiring harnesses. What it does:

• Moves air along the oven/cabinet cavity to promote even heat distribution and help vent hot spots
• Cools nearby electronics and components to reduce overheating risk
• Replaces worn or noisy blowers to restore proper airflow and reduce unusual motor noise
• Helps maintain designed airflow for venting and exhaust paths

• Disconnect power at the breaker before starting any repair
• Handle with care; blower edges and surrounding sheet metal may be sharp
• Verify blower orientation and wiring match the original before securing
• Basic hand tools typically needed; follow for panel removal and reassembly

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This small metal nipple secures or connects appliance components, restoring proper alignment and a stable mechanical or fluid connection. It's a simple replacement that helps appliances function reliably. What it does:

• Provides a secure mounting point or connection between parts
• Restores proper alignment for linked components
• Replaces worn or damaged fittings that can cause rattling or instability
• Helps maintain a leak-free or stable mechanical joint when used as intended

• Disconnect power and/or gas and follow all safety procedures before starting work
• Install in the original orientation; hand-start fasteners to avoid cross-threading, then tighten to secure
• If the nipple interfaces with a fluid or gas line, inspect seals and replace gaskets or O-rings as needed and check for leaks after reassembly

This regulator controls gas pressure to the range/oven so burners and the oven heat consistently and safely. Replaces a failed regulator to restore proper flame behavior and reliable cooking performance. What it does:

• Regulates incoming gas pressure to the appliance's burner system
• Helps maintain steady, even flame height for consistent cooking
• Resolves symptoms like weak or uneven flames, burners that won't light, or poor oven heat
• Prevents over-pressurization that can cause unstable burner operation

• One regulator

• Turn off the gas supply and electrical power before beginning work
• Install using proper fittings and thread sealant rated for gas; tighten to OEM torque specs
• After installation, test all gas connections for leaks (do not use an open flame)

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement line cord provides the appliance's main power connection, restoring a safe, reliable electrical feed when the original cord is damaged or worn. Use it to replace frayed, cut, or non-functioning power leads. What it does:

• Carries household mains power to the appliance for normal operation
• Replaces damaged or frayed cords that can cause intermittent power or visible wear
• Helps eliminate loose connections, burning smell, or sparking at the cord entry
• Restores a secure grounded connection when used with the correct grounding configuration

• Disconnect power at the breaker or unplug the appliance before starting
• Verify cord type and grounding configuration match the appliance wiring and local code
• Inspect terminal connections for corrosion and tighten to manufacturer torque specs

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The Safety Valve Assembly is an OEM part for GE gas ranges. It automatically cuts off gas flow if excess pressure develops, providing critical safety protection.

Symptoms of a faulty safety valve include:

• The range does not ignite and burners fail to light
• Gas leaks occur even when burners are off
• Responsiveness issues adjusting burner flames

 Causes involve worn seals, dirt/debris blocking valve ports, or cracked componentry from shock over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Reed Switch Pcb is an OEM part for GE gas ranges. This component plays a crucial role in the burner control system by detecting the on/off position of the control knobs.

Causes of a bad reed switch pcb include circuitry failure, component degradation over time, damage from falls or impacts, or issues with the wiring connections.

Symptoms of a bad reed switch pcb include:

• Burners not igniting when turned on
• Ignition sparks but burners fail to light
• Unresponsive or intermittent control knob functionality
• Inability to turn burners off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
