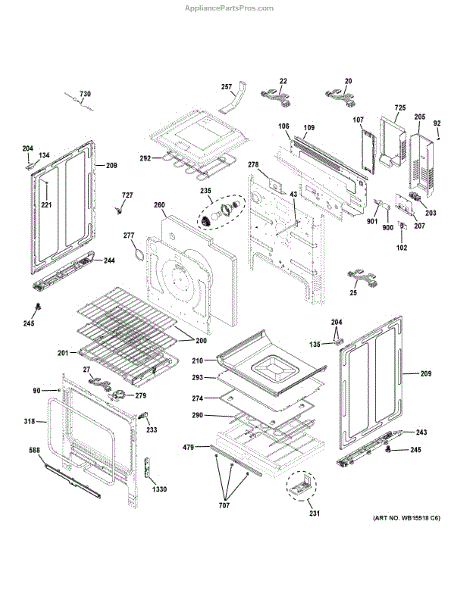

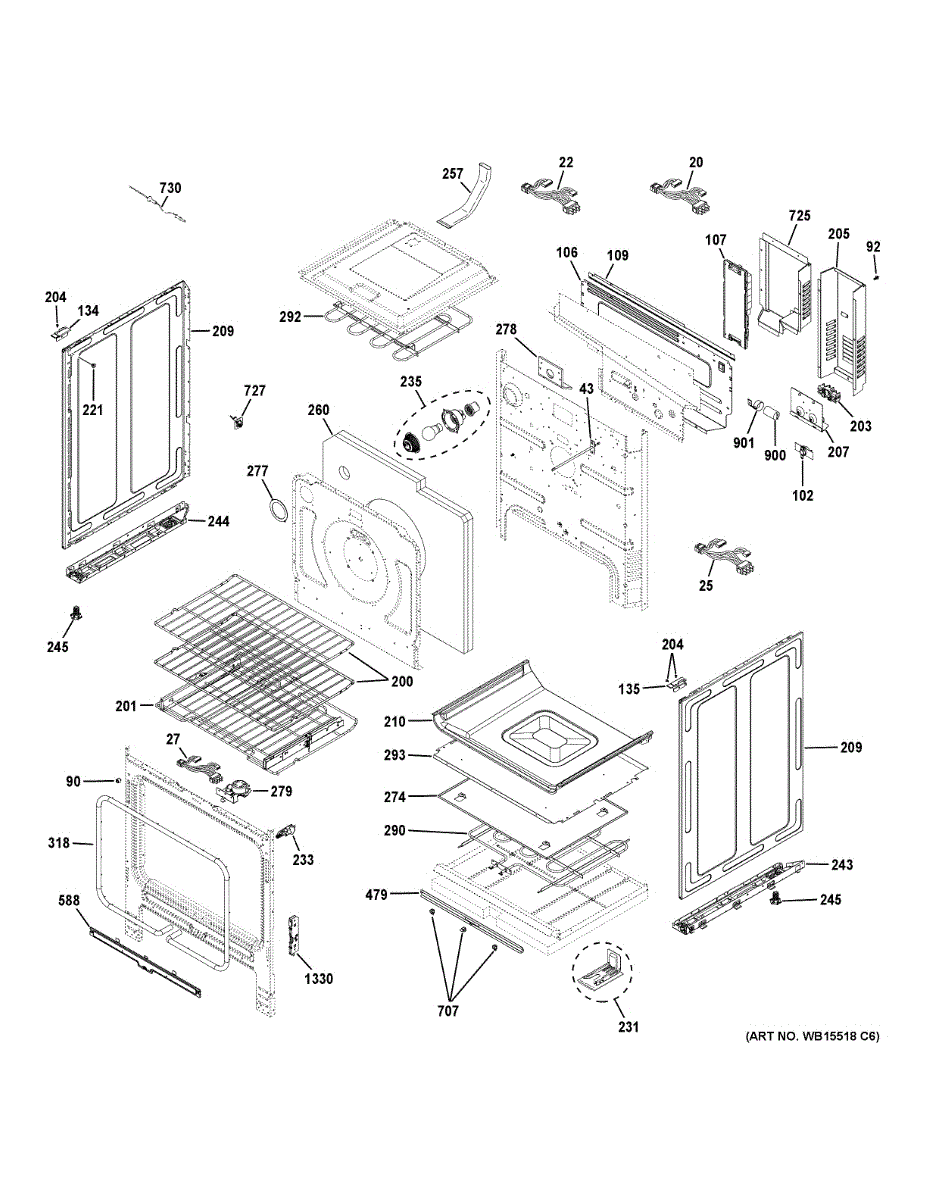

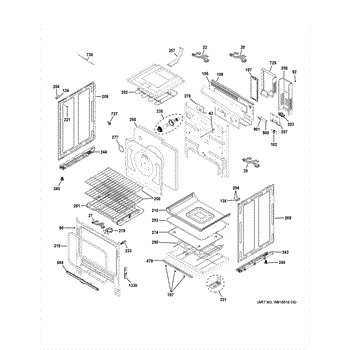

Parts for Ge CHS900P3M1D1: Body Parts

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Replacement front frame bumper that cushions and supports your range's door trim. Prevents metal-on-metal contact and reduces vibration. Needed when original is cracked, broken, or missing.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Oven overheating or won't heat? The high-limit thermostat cuts power when temperatures exceed safe limits. This common safety repair restores heating.

Replacement backguard complement trim panel for ranges. Installs behind cooktop to cover gaps and complete appearance. Needed when original is cracked or missing.

Flat wire shelf that slides into your oven's side supports to hold bakeware at the correct height. Replace if bent, warped, or missing a rack position.

Slide-out oven rack assembly for electric ranges. Installs inside the oven cavity. Replace if your rack is damaged, won't slide smoothly, or missing.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replacement 8-18 x 5/16 screw secures range panels, brackets, and components. Needed when original fastener is stripped, missing, or damaged.

Protective housing cover for your range's convection fan motor. Replace if cracked, damaged, or missing to shield internal motor components from debris.

This terminal block bracket secures the oven/range terminal block to the appliance chassis, keeping power connections stable and reducing strain on wiring. It restores a firm mounting point for safe electrical connections. What it does:

• Holds the terminal block in place so power wires stay securely connected
• Helps prevent wire movement that can cause loose connections or arcing
• Restores proper alignment for terminal screws and wire routing
• Addresses issues like intermittent power, sparks at the terminal area, or a loose-feeling connection

• Disconnect all power at the breaker or unplug the appliance before starting
• Remove outer panels or access covers to reach the terminal area; keep hardware for reassembly
• Inspect terminal block and wiring for damage; replace any frayed or burnt wires before reassembly
• Tighten terminal screws to manufacturer torque and ensure bracket seats flush against the chassis

Replace your range's side panel if it's cracked, dented, or damaged. This exterior panel installs on the side of your range to restore appearance.

This bottom oven cavity is the lower oven enclosure that holds racks, cookware, and heating components, restoring a sealed cooking chamber for reliable baking and roasting. It replaces damaged, dented, or corroded lower oven tubs. What it does

• Replaces the lower oven enclosure to restore a sealed cavity for even heating and safe cooking.
• Helps eliminate issues like heat loss, uneven cooking, or smoke from damaged inner surfaces.
• Supports oven racks and heating element mounting locations so accessories align correctly.
• Restores proper airflow and clearance inside the lower oven for consistent temperature performance.

• This part may require removal of surrounding panels and disconnecting electrical components.
• Always disconnect power to the appliance before starting work to avoid shock or injury.
• Check existing fasteners, gaskets, and insulation — replace any damaged items separately as needed.
• Handle carefully to avoid damaging finish or any attached mounting tabs during installation.

Fixes range oven that won't heat when door is closed. This door plunger switch activates burners and baking modes. Common DIY repair in 30 minutes.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Support base for electric and gas ranges. Installs at the bottom to provide structural stability. Replace if cracked, broken, or damaged over time.

Support base for range and wall oven. Provides stability and structural support for the appliance. Replace if cracked, broken, or damaged over time.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Range door won't stay closed or lock? This automatic door latch secures your oven door during self-clean cycles. Straightforward DIY replacement.

Oven not heating properly or baking unevenly? This bake element assembly restores bottom heat for normal baking. Moderate DIY repair for electric ranges.

Range won't power on or burners not heating? This terminal block receptacle connects power to your range. Moderate DIY repair for electric & gas ranges.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

If your range microwave isn't heating food, the magnetron may have failed. This critical component generates the microwaves that heat your meals.

A receiver hinge that secures and supports an oven door hinge pin to keep the door aligned and operating smoothly. Replaces a worn or broken receiver to restore proper door fit and movement. What it does

• Accepts and retains the oven door hinge pin so the door opens and closes correctly.
• Supports door weight to prevent sagging or uneven alignment.
• Helps the door latch and seal properly for safe, consistent operation.
• Commonly replaced when the door drops, rubs, or will not stay closed.

• One receiver hinge

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the oven door or access panel per the service manual for safer installation.
• Use basic hand tools; check hinge pins and mating hardware for wear and replace if needed.
