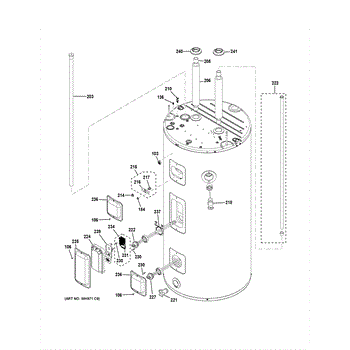

Parts for Ge GEH80DFEJSRA: Body Parts

This badge assembly is the exterior emblem that restores the original look of your appliance. It replaces a worn, missing, or damaged logo badge so the appliance front appears finished and professional. What it does:

• Replaces a missing or damaged exterior emblem to restore appearance
• Covers the brand/logo area on the appliance door or console
• Helps stop peeling or loose badge edges that catch dirt or look worn
• Matches the original part shape and attachment points for a clean fit

• High-level cosmetic replacement — follow your model service manual for removal/installation
• Clean and dry mounting surface before installing to ensure good adhesion or fit
• Use care to avoid scratching surrounding finish during installation
• Disconnect power only if removal requires working near electrical controls

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

This tube insulation sleeve protects appliance tubing from condensation, freezing, and heat transfer to keep systems running efficiently. It's a simple replacement that helps stop drips, freezing, and excess moisture on exposed pipes. What it does:

• Provides thermal insulation to reduce heat gain or loss through tubing
• Helps prevent condensation and water pooling on exterior pipe surfaces
• Reduces risk of freezing on cold lines in low-temperature areas
• Lowers vibration/noise where tubing rubs against panels or brackets
• Recommended when existing insulation is cracked, torn, or missing

• Disconnect power and shut off water supply before working on the appliance
• Slide the sleeve over the tube; trim to length with scissors if needed
• Ensure a snug fit and avoid compressing the material tightly over the tubing
• Secure with zip ties or approved tape only if specified by the manufacturer

This 1/4-20 locking hex nut secures threaded fasteners and resists loosening from vibration, keeping appliance panels and components firmly in place. It's a simple, durable fastener used where a reliable hold is needed. What it does:

• Threads onto 1/4-20 bolts or studs to hold parts together
• Locking feature helps prevent nuts from backing off under vibration
• Commonly used to secure panels, brackets, and internal components
• Symptoms of failure: loose panels, rattling, or parts that shift or separate

• Use the correct 1/4-20 bolt or stud and matching thread engagement
• Tighten with the appropriate wrench; avoid overtightening to prevent thread damage
• Inspect mating threads for wear or damage before reuse
• Disconnect power and follow appliance safety guidelines when accessing fasteners

This is a replacement 10-32 x 3/8" pan-head screw for fasteners used in appliances. It restores secure fastening for panels, brackets, and trim where the original screw has stripped or gone missing. What it does:

• Secures panels, brackets, or components where a 10-32 thread is required
• Restores proper fit when original screw is worn, damaged, or missing
• Helps eliminate rattles or movement from loose fasteners
• Small fastening solution for repairs on appliance interiors and exterior trim

• One 10-32 x 3/8" pan-head screw

• Use the correct size screwdriver or nut driver to avoid stripping the head
• Do not overtighten; torque gently until snug to prevent thread or component damage
• Replace like-for-like with the same thread size and length for proper fit
• Wear safety glasses when working near sharp sheet metal or springs

This clip spring secures the thermal cutoff (TCO) or thermal fuse in place to help maintain proper contact and reliable temperature sensing. It's a simple replacement that restores secure mounting for safe heater operation. What it does:

• Holds the TCO/thermal fuse firmly against the heater assembly or mounting bracket to ensure accurate temperature sensing
• Prevents the TCO from shifting or losing contact during normal operation
• Can resolve intermittent heating or safety trips caused by a loose or missing clip
• Small, durable metal clip designed for direct OEM fit and placement

• Always disconnect power to the appliance before starting any repair
• Install using appropriate small pliers; avoid overstressing the clip or surrounding components
• If the TCO or thermal fuse shows damage or has opened, replace the TCO/fuse rather than relying on the clip alone

This blue inlet grommet seals and cushions the appliance's water inlet connection to help prevent leaks and reduce vibration. It replaces a worn or damaged inlet seal to restore a proper watertight connection. What it does:

• Creates a watertight seal at the water inlet connection to help stop leaks
• Cushions and stabilizes the inlet hose/valve to reduce vibration and movement
• Prevents wear from metal-to-rubber contact at the inlet opening
• Commonly used when the inlet seal is cracked, torn, deformed, or leaking

• One blue inlet grommet

• Disconnect power and shut off the water supply before starting any repair
• Verify correct orientation and inspect mating surfaces for damage or debris
• Press the grommet fully into place by hand; replace if it will not seat correctly
• After installation, restore water and power and check the connection for leaks
