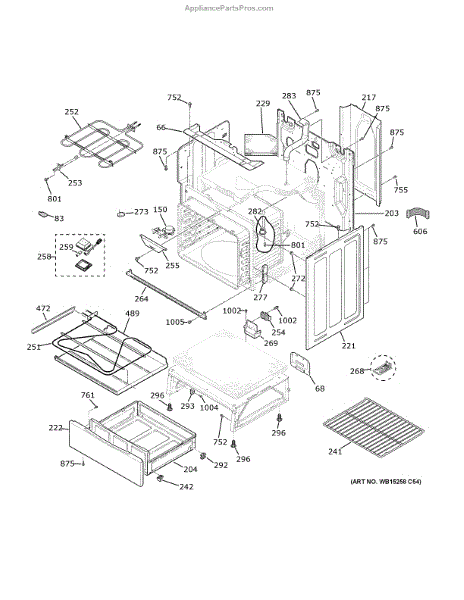

Parts for Ge JB735FP3DS: Body Parts

This latch assembly secures the appliance door and ensures the door closes and stays latched for normal operation. It replaces a worn or broken latch to restore reliable door closure and safe use. What it does:

• Replaces the door latch mechanism so the door stays firmly closed during operation
• Helps the appliance recognize a closed door and allows normal start/function
• Addresses symptoms such as a door that won't stay closed, a loose or broken latch, or an appliance that won't start because the door won't latch
• Restores proper alignment and engagement between the door and cabinet strike when installed correctly

• One latch assembly

• Disconnect power (and gas/water if applicable) before starting any repair
• Basic hand tools typically required; removal of the door or access panel may be necessary
• Align latch with strike and secure fasteners; test door operation and latching before reassembly
• If door-sensing or interlock switches are present, electrical connections are secure after installation

This replacement drawer-and-slide assembly restores smooth, stable operation of the lower drawer compartment. Swap out a bent, jammed, or missing assembly to regain easy access and proper alignment.

• Supports and guides the lower drawer as it opens and closes
• Helps the drawer travel smoothly and sit flush when closed
• Replaces damaged components causing sticking, wobbling, or misalignment
• Common symptoms: drawer difficult to move, falls off track, or won't close fully

• Disconnect power and allow the appliance to cool completely; shut off gas supply if applicable.
• Remove the existing drawer; retain any screws, brackets, or clips reused on your model.
• Engage the new assembly fully on the track/slide and verify proper alignment.
• Open and close the drawer several times to ensure smooth travel before returning to service.

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The drawer wedge aligns and stabilizes your range's lower storage/warming drawer so it slides smoothly and closes flush. Replacing a worn wedge restores proper fit and helps prevent rattling, scraping, and an uneven drawer gap.

• Keeps the lower drawer centered and level in the cabinet
• Provides a firm stop/spacing for a flush, consistent close
• Reduces side-to-side play and vibration during use
• Common symptoms: crooked drawer, uneven front gap, scraping noises, drawer not closing fully

• Disconnect power and allow the range to cool before servicing
• Remove the lower drawer to access the wedge location
• Note the wedge's orientation; install the new wedge in the same position
• Reinstall the drawer and verify smooth travel and proper alignment

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

The Broil Element Assembly is an OEM replacement part for GE electric ranges. As a dedicated upper heating element, it delivers intense radiant heat focused at the top of the oven cavity for broiling functions.

Causes of a bad broil element can include failure from extensive exposure to high temperatures during broiling cycles. Food debris and grease accumulation can also lead to premature wear over time.

Symptoms of a bad broil element assembly include:

• Inability to achieve or maintain high broiling heat levels near the top
• Incomplete or inconsistent browning/charring of broiled foods
• Safety hazards such as sparking or strange smells from damaged coils

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM part for GE electric ranges. It provides connections between internal wiring and the home's electrical supply.

Causes of failure can include corrosion of metal prongs from heat and moisture exposure over time, splitting insulation sheathing from continuous vibrations, or loosened mounting fasteners.

Symptoms of a faulty terminal block include:

• Intermittent or unstable power to heating elements surfaces
• Loose, frayed, or corroded wire attachments risking electrical faults
• Inability to maintain programmed cooking temperatures

This part is also compatible with Hotpoint and RCA electric range models.

A halogen lamp assembly that restores bright, focused light inside the oven cavity so you can monitor cooking without opening the door. Designed to replace a damaged or burned-out oven light quickly and cleanly. What it does:

• Provides bright, concentrated illumination for better visibility while baking, roasting, or broiling.
• Replaces a burned-out, dim, flickering, or broken oven light.
• Sits in the oven lamp housing and connects to the oven's existing wiring for direct, stable power.
• Uses a sealed halogen lamp suited for high-temperature appliance interiors.

• One halogen lamp assembly

• Disconnect power to the appliance before starting any work to prevent shock or injury.
• Allow the oven to cool fully; halogen bulbs and housing may be hot and can break if handled while hot.
• Handle glass components carefully; avoid touching the bulb glass with bare hands.

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This hinge receiver secures the appliance door hinge to the cabinet/frame so the door pivots and seals correctly. Replaces a worn or damaged receiver to restore proper door alignment and operation. What it does

• Mounts on the cabinet/frame to receive and support the door hinge pin
• Keeps the door aligned so it opens and closes smoothly
• Commonly replaced when a door sags, rubs, or won't seal fully
• Helps eliminate clicking, binding, or uneven gaps caused by a broken receiver

• Disconnect power (and water supply for appliances with water lines) and remove food/items from the door area as needed
• Use appropriate hand tools; support the door while removing or installing hinge components to prevent drops or injury
• If hardware is corroded or damaged, replace them—only re-use fasteners that are undamaged and appropriately rated

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

Size: 8-18 BA POR 3/4 SN
