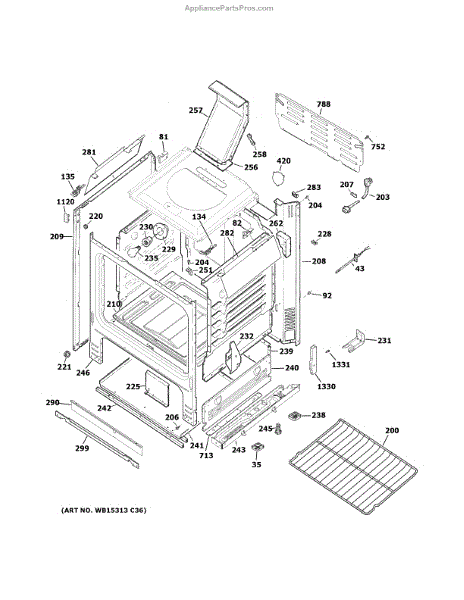

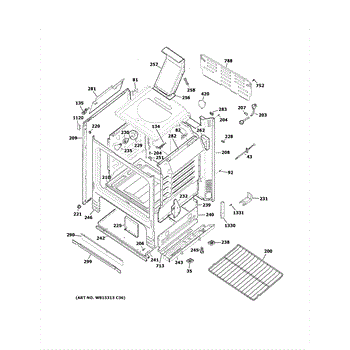

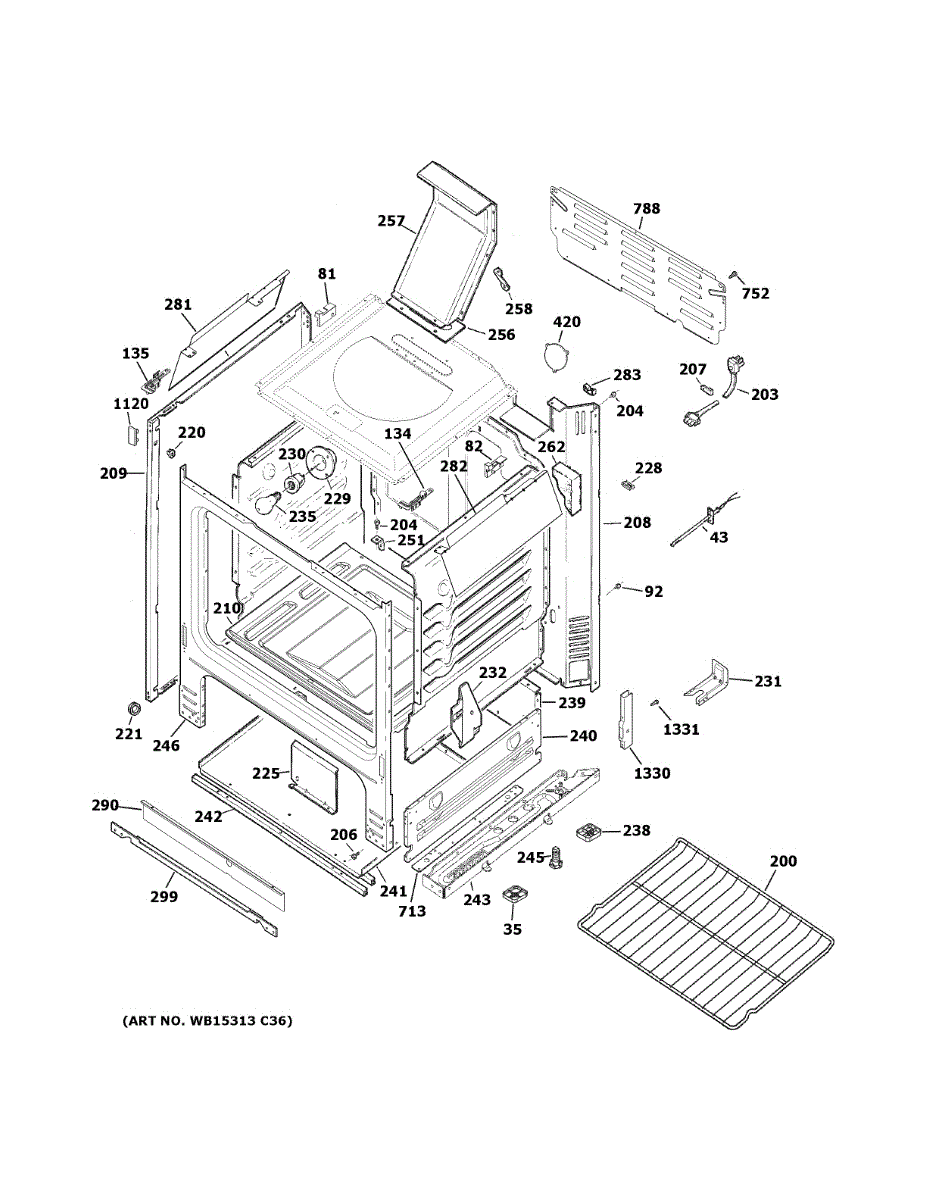

Parts for Ge JGBS66DEK5BB: Body Parts

The Temperature Sensor is an OEM part for GE ovens. This sensor plays a role in monitoring and regulating the oven's internal temperature during cooking. It ensures that the oven heats to the set temperature and maintains it consistently throughout the cooking process, resulting in evenly cooked meals.

Symptoms of a bad Temperature Sensor include:

• Oven overheating or not heating to the set temperature.
• Inconsistent cooking results or undercooked food.
•  Frequent error messages from the oven related to temperature issues.
• The oven cycling on and off too frequently.

Causes of a bad temperature sensor can include prolonged exposure to high temperatures which might degrade its responsiveness, electrical issues such as short circuits, or physical damage that affects its ability to measure temperature accurately.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop holder secures the cooktop/rangetop assembly to the range frame, helping keep the surface stable and properly aligned for safe cooking. Durable replacement for worn or missing mounting hardware. What it does:

• Secures the rangetop/cooktop to the range body to prevent movement or rocking
• Keeps the cooktop flush and aligned for consistent burner operation
• Helps eliminate rattling or vibration caused by a loose mount
• Often replaced when the holder is bent, broken, or missing

• Disconnect power (and turn off gas if applicable) before starting work
• Basic hand tools required; follow OEM disassembly steps for access
• Inspect surrounding mounting points and hardware; replace any damaged fasteners
• Do not overtighten mounting screws; secure snugly to avoid stress on the bracket

This rangetop holder is a small support bracket that secures the cooktop/rangetop assembly and helps keep burners and trim properly aligned for safe, even cooking. It replaces a worn or damaged holder to restore stable cooktop support. What it does:

• Supports and stabilizes the rangetop/cooktop assembly to prevent shifting or sagging
• Keeps burner components and trim aligned for proper burner placement and operation
• Helps eliminate rattling or movement under normal use
• Addresses symptoms such as a loose or misaligned cooktop, noisy operation, or uneven burner spacing

• One rangetop holder support bracket

• Disconnect power and gas supply before beginning any repair
• Remove cooktop trim or grates as needed to access the holder; hand tools such as screwdrivers may be required
• Handle edges carefully to avoid cuts and protect finished surfaces from scratches
• Test fit and reassemble components to ensure proper alignment before restoring power/gas

This manifold side bracket is a replacement mounting bracket that secures the gas manifold assembly in place, restoring proper alignment and reducing vibration for reliable burner performance. What it does:

• Supports and secures the gas manifold assembly to the range or cooktop frame
• Keeps manifold alignment for correct gas valve and burner positioning
• Prevents rattling or movement that can cause loose fittings or leaks
• Helps maintain consistent ignition and burner operation

• One manifold side mounting bracket

• Intended for users comfortable removing panels and working near gas components; turn off gas and power before starting
• Inspect manifold, fittings, and nearby components for damage or wear during replacement
• Use the OEM fasteners and torque to manufacturer recommendations; replace any damaged hardware

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The bottom oven and deflector assembly is an OEM part for GE ranges. It serves as the protective shield for the bottom of the oven, preventing any drips, spills, or food debris from falling into the internal part of the range.

A bad bottom oven and deflector assembly can result in issues such as increased smoke during cooking, difficulty in cleaning the oven, or potential damage to the heating elements. Causes of a bad part can include wear and tear over time, accidental spills or exposure to high heat.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive smoke or burning smell during cooking
• Difficulty in cleaning the oven due to accumulated debris
• Uneven heating or cooking results
• Visible damage or warping of the deflector

Replace your worn-out or damaged bottom oven and deflector assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This rubber grommet cushions and seals a panel opening to protect wires, hoses or tubing from chafing and vibration. It helps prevent wear and keeps wiring routed cleanly through metal or plastic panels. What it does:

• Provides a protective, vibration-dampening barrier where wiring or tubing passes through a hole
• Helps stop chafing that can cause exposed insulation or hose damage
• Reduces noise from vibration where parts contact a cabinet or chassis
• Keeps the opening sealed against debris and light moisture intrusion

• One rubber grommet as shown

• Disconnect power and water before accessing panels
• Inspect the opening and mating surfaces; remove rust or sharp edges before installing
• Press grommet into the hole until fully seated; ensure wiring or tubing is routed without pinching
• Replace grommet if torn, hardened, or deformed; use only the specified size for a secure fit

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

This replacement panel broiler restores the oven's internal broiler surface so heat reflects properly for consistent top-heat cooking and protects internal components from direct flame and spills. Fits the oven broil cavity where the broil element mounts. What it does:

• Provides the mounting and protective surface for the broil element and helps reflect broil heat across food
• Restores even browning and searing when a damaged or warped panel causes uneven broiling
• Protects internal oven walls and wiring from grease, drips and direct flame contact
• Helps reduce smoke and flare-ups caused by burned-on residue on a damaged panel

• One replacement inner broiler panel

• Disconnect power to the appliance before servicing to avoid shock hazard
• Basic hand tools are typically required; handle edges carefully — panel may have sharp metal edges
• Clean surrounding area and broil element before installation; replace only with the exact part number shown

This bottom panel replaces the damaged lower oven floor panel to restore proper support and heat protection for cookware and internal components. It helps stop rattling, sagging, and hot spots that can affect bake performance. What it does:

• Provides a stable, heat-resistant surface at the bottom of the oven cavity
• Protects underlying components from spills, drips and direct heat
• Prevents sagging or warped oven floor that can cause cookware instability
• Can reduce rattling or vibration caused by a loose or damaged panel

• Disconnect power to the range before beginning any work.
• Remove oven racks and allow the oven to cool completely.
• Handle edges carefully; use gloves to avoid cuts and protect the finish.
• Installation typically requires removing access screws and aligning the panel into the oven floor supports.

A replacement bottom brace that supports the lower frame and helps keep the appliance base square for proper alignment and operation. Restores structural support to reduce sagging and related stability issues. What it does:

• Provides structural support to the appliance bottom/frame to maintain alignment.
• Helps prevent sagging or shifting that can cause rubbing, gaps, or uneven operation.
• Reduces vibration and rattling that may come from a loose or damaged lower brace.
• Keeps attached panels and components secure for consistent performance.

• Disconnect power and empty the appliance before beginning any repair.
• Use basic hand tools; follow for access and bracket location.
• Replace only with the exact part number to ensure fit; secure all fasteners to manufacturer torque recommendations.
• If you see other damaged mounting hardware or panels, inspect and replace as needed for a complete repair.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This oven back insulation is the replacement rear cavity pad that helps contain oven heat and protect rear components and cabinetry. It restores proper thermal barrier performance for safer, more consistent oven operation. What it does:

• Provides a thermal barrier behind the oven cavity to limit heat transfer to the rear panel and surrounding cabinetry
• Helps maintain more consistent cooking temperatures by reducing heat loss through the back
• Protects wiring, controls, and exterior surfaces from excessive heat exposure
• Replaces missing, damaged, or deteriorated insulation that can cause higher rear-surface temperatures or heat-related odors

• One oven back insulation pad as shown

• Disconnect power to the appliance before servicing
• Remove the range/oven from its enclosure and access the rear panel per your model's service instructions
• Handle insulation with gloves and a mask if fibers are exposed; avoid compressing or tearing the material
• Secure the insulation in the original position with factory fasteners or clips; verify no obstruction of vents or wiring before reassembly

This diverter side is a replacement housing piece that helps route flow inside the refrigerator dispenser or diverter assembly, restoring proper function to the dispensing pathway. It provides a direct swap for the worn or damaged original. What it does:

• Forms one side of the internal diverter assembly that directs water/ice/air flow inside the dispenser area
• Can stop flow issues caused by a cracked or broken housing
• Helps prevent leaks or misdirected dispensing when the original part is damaged
• Useful when the dispenser produces sputtering, weak flow, or visible housing damage

• Disconnect power and turn off the water supply before starting any repair
• Minimal hand tools required; follow OEM diagram for proper orientation and clips/tabs
• Inspect adjacent seals and gaskets and replace if cracked to ensure a watertight fit
• Test dispenser for proper flow and leaks after installation

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
