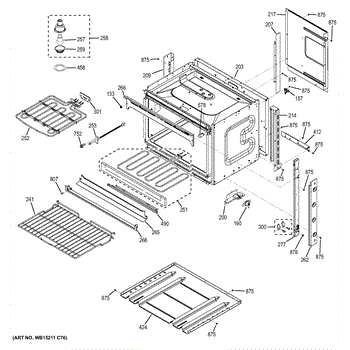

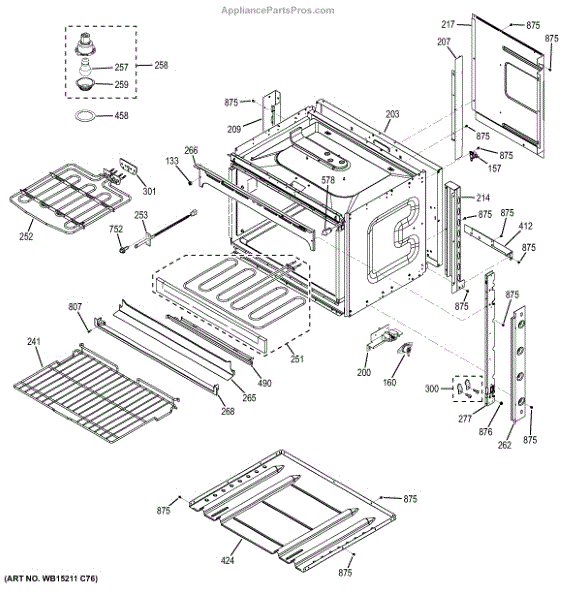

Parts for Ge JT1000DF2BB: Body Parts

This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

This broil element is the oven's upper heating element that delivers intense top heat for broiling and finishing dishes. Replacing a failed element restores reliable broil performance and consistent, even top browning.

• Provides direct top heat during Broil to sear and brown foods evenly
• Common signs of failure: broiler won't heat or the element doesn't glow
• Uneven top browning or longer-than-normal broil times
• Visible blisters, cracks, or breaks; in some cases, selecting Broil may trip the breaker

• Disconnect power at the breaker and allow the oven to cool completely
• Remove mounting screws from inside the oven and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires retract into the cavity
• Reinstall screws, ensure the element is centered and clear of the liner, restore power, and test

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

This lower trim vent replaces the lower front vent trim on compatible ovens and ranges to restore proper airflow appearance and finish. It helps maintain correct bottom-front ventilation and a finished look at the appliance base. What it does:

• Covers and channels air exiting the oven's lower cavity for proper venting and appearance
• Helps prevent debris from entering the lower access area
• Restores a damaged, cracked, or missing lower vent trim piece
• Common symptom: visible broken or missing lower front trim, drafts, or an unfinished appearance

• 1 lower trim vent

• Basic snap- or screw-in replacement; remove oven kickplate or access panel as needed
• Handle part carefully to avoid scratching the finished surface
• Disconnect power to the appliance before removing access panels if work requires reaching electrical components

This hinge bracket assembly secures and supports the refrigerator door pivot to restore proper door alignment and reliable opening/closing. It replaces worn or damaged hinge hardware to help stop door sag and improve sealing. What it does

• Replaces the door hinge bracket that anchors the hinge to the cabinet or door
• Restores correct door alignment and smooth pivoting motion
• Helps eliminate sagging or uneven door gaps that affect the seal
• Works with existing hinge pins and mounting points to secure the door

• One hinge bracket assembly kit

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; tighten fasteners to secure bracket without over-torquing

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This bottom air duct cover directs cold-air flow inside the refrigerator to help maintain consistent temperatures and protect internal components. It replaces a cracked or missing duct cover to restore proper airflow routing. What it does

• Channels refrigerated air through the lower cabinet to support even cooling
• Protects evaporator/fan pathways from debris and accidental contact
• Helps reduce localized warm spots and uneven food cooling
• Prevents rattling or vibration caused by a damaged or loose duct cover

• One bottom air duct cover

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers and any trim blocking access to the duct area
• Handle plastic parts gently to avoid cracking; secure with original clips or screws

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

A small replacement mounting screw used to secure panels and components in household appliances. Restores proper fastening to reduce rattling, loose panels, and misaligned parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and trim to keep appliance parts securely in place.
• Stops vibration-related noise caused by loose fasteners.
• Prevents components from shifting, which can affect fit and function.
• Works wherever the OEM screw specification matches the application.

• Use the matching screw size and thread type for the original hole; do not force a mismatched screw.
• Turn off and disconnect power before accessing internal components to avoid shock.
• Hand-start threads to prevent cross-threading; tighten until snug—do not over-torque.
• If multiple screws or a specific length/type is required, verify the full parts list for your model before ordering.

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Black. 8-18 AB HXW 3/8
