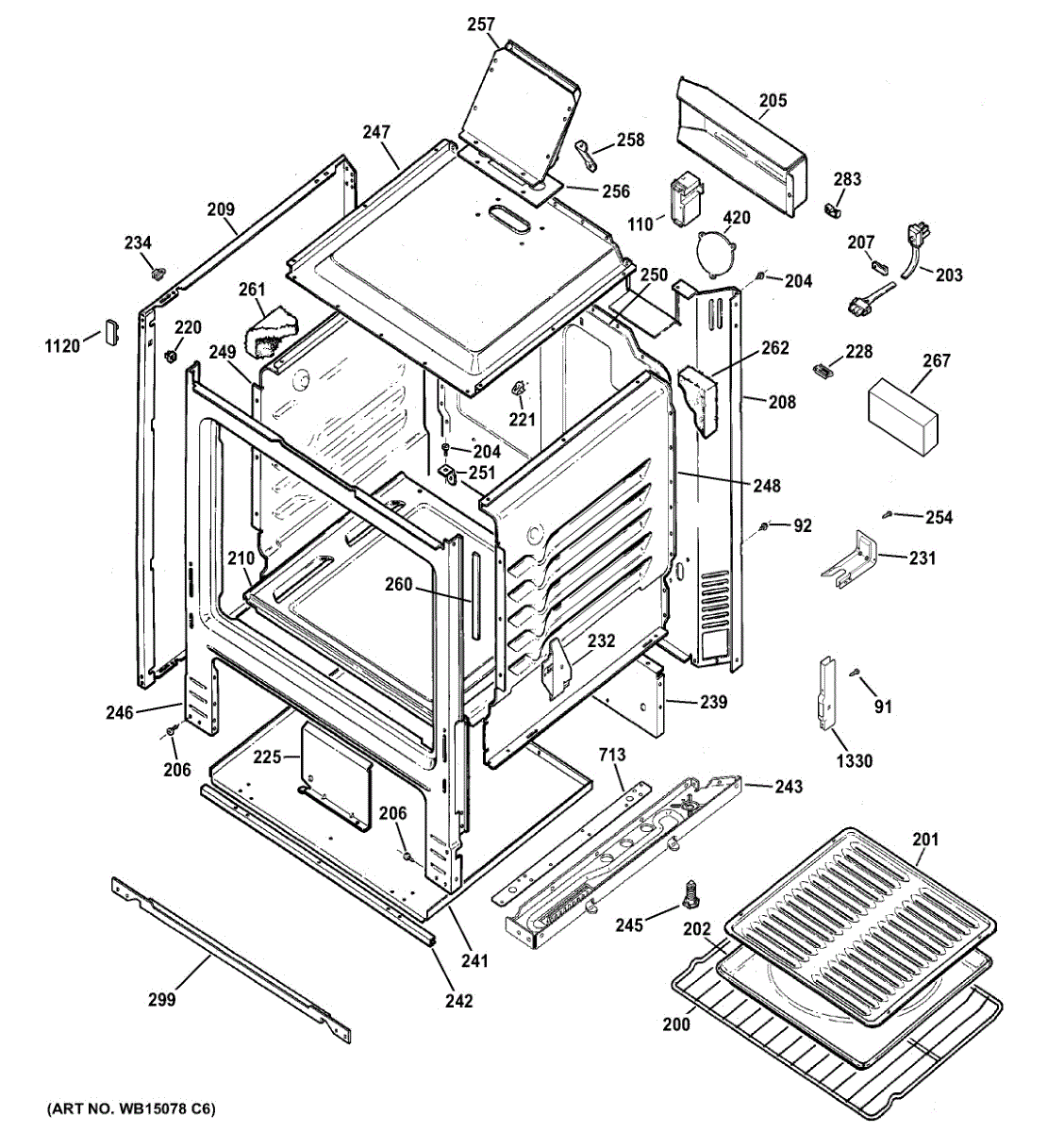

Parts for Hot Point RGB525DEH2BB: Body Parts

The Ignition Module is an OEM part for GE ranges. This component plays a critical role in controlling oven ignition by generating high-voltage sparks to light the burners. It consistently monitors flame presence and re-ignites burners as needed throughout baking and cooking.

Symptoms of a bad ignition module include:

• Delayed burner ignition or failure to ignite at all
• Unstable or intermittent burner flames
• Repeated false error codes related to ignition

Causes can be short-circuiting or water damage of electronic components over extended use. This can lead to inconsistent spark outputs and faulty flame sensing.

Reliable ignition is essential for safe and trouble-free cooking. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The Bottom Oven and Deflector Assembly is an OEM part for GE ovens. It serves the dual purpose of acting as a base for the oven and deflecting heat for more efficient cooking.

Causes of a bad Bottom Oven and Deflector Assembly can include exposure to high heat over extended periods, accidental impact or mishandling, and general wear and tear from regular use.

Symptoms of a bad Bottom Oven and Deflector Assembly include:

• Uneven cooking or baking results
• Visible cracks, warping, or damage to the assembly
• Unusual noises during oven operation
• Difficulty in maintaining set oven temperatures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the left side hinge guard. For right side use WB34K3.

This is the right side hinge guard. For left side use WB34K4.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

This bottom panel replaces the damaged lower oven floor panel to restore proper support and heat protection for cookware and internal components. It helps stop rattling, sagging, and hot spots that can affect bake performance. What it does:

• Provides a stable, heat-resistant surface at the bottom of the oven cavity
• Protects underlying components from spills, drips and direct heat
• Prevents sagging or warped oven floor that can cause cookware instability
• Can reduce rattling or vibration caused by a loose or damaged panel

• Disconnect power to the range before beginning any work.
• Remove oven racks and allow the oven to cool completely.
• Handle edges carefully; use gloves to avoid cuts and protect the finish.
• Installation typically requires removing access screws and aligning the panel into the oven floor supports.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This oven back insulation is the replacement rear cavity pad that helps contain oven heat and protect rear components and cabinetry. It restores proper thermal barrier performance for safer, more consistent oven operation. What it does:

• Provides a thermal barrier behind the oven cavity to limit heat transfer to the rear panel and surrounding cabinetry
• Helps maintain more consistent cooking temperatures by reducing heat loss through the back
• Protects wiring, controls, and exterior surfaces from excessive heat exposure
• Replaces missing, damaged, or deteriorated insulation that can cause higher rear-surface temperatures or heat-related odors

• One oven back insulation pad as shown

• Disconnect power to the appliance before servicing
• Remove the range/oven from its enclosure and access the rear panel per your model's service instructions
• Handle insulation with gloves and a mask if fibers are exposed; avoid compressing or tearing the material
• Secure the insulation in the original position with factory fasteners or clips; verify no obstruction of vents or wiring before reassembly

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
