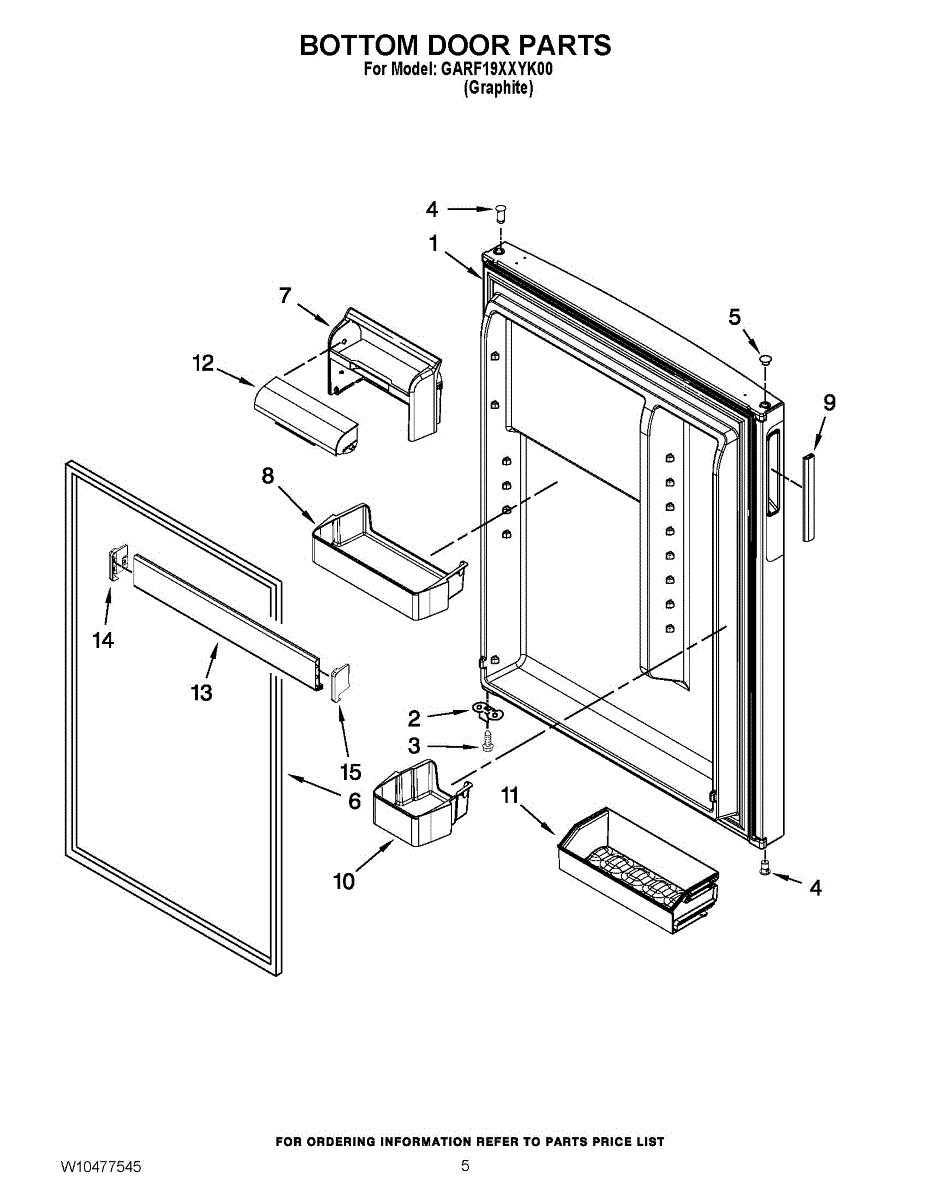

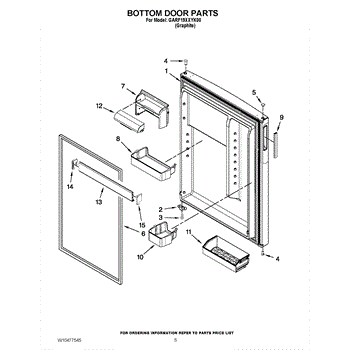

Parts for Whirlpool GARF19XXYK00: 03 - Bottom Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Black

This magnetic door gasket creates a tight seal around the refrigerator door opening to keep cold air in and warm air out. A fresh, pliable gasket helps maintain temperature, reduce frost buildup, and improve efficiency.

• Forms an air-tight magnetic seal between the door and cabinet
• Helps prevent temperature swings, condensation, and frost around the door
• Common failure signs: torn/cracked rubber, gaps at the corners, door not sealing, moisture or frost near the door
• Restores proper door closure to protect food freshness

• Unplug the appliance and remove food from the door before starting
• Soften the gasket in warm water or with gentle heat to ease installation and improve fit
• Loosen perimeter screws or trim as designed, seat the gasket groove fully, then retighten evenly
• Check for uniform contact all around; adjust door alignment if needed

This utility compartment housing is the outer cabinet piece that protects and secures the appliance's control area and internal components. It restores a clean, stable enclosure to prevent damage and exposure. What it does:

• Covers and protects the appliance's utility/control compartment from dust, debris, and accidental contact.
• Provides mounting surfaces and alignment for control modules, switches, and wiring harnesses.
• Restores proper fit to eliminate rattles, looseness, or gaps around the control area.
• Helps prevent exposed wiring or components that could lead to functional issues or safety concerns.

• Disconnect power before starting any repair to avoid shock or injury.
• Basic disassembly typically requires removing outer panels or the top cover; keep track of screws and fasteners.
• Handle with care to avoid scratching the finish or damaging mounting tabs; inspect clips and screw bosses before final assembly.

This large door bin restores sturdy, easy-access storage on your refrigerator door. Replace a cracked or missing bin to keep condiments and bottles organized, prevent tip-overs, and free up space on the main shelves.

• Holds jars, condiments, and beverages on the door to maximize shelf space
• Replaces bins that are cracked, warped, loose, or missing
• Snaps into the designated large-bin positions for your model
• Helps prevent tipping and spills when opening and closing the door

• Unplug the appliance or disconnect power; remove items from the door
• Align the bin's tabs/hooks with the slots on the door liner
• Lower/slide into place until fully seated—do not force
• The bin is locked in before loading items

The French Door Bin is an OEM part for Whirlpool refrigerators. This durable bin attaches to the inside of the refrigerator door, offering convenient access to frequently used items such as drinks, condiments, and snacks.

Causes of a bad French Door Bin can include overloading beyond its weight capacity, impact from items being moved in and out of the refrigerator, or degradation of the material over time due to the cold environment and frequent use.

Symptoms of a malfunctioning French Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Difficulty attaching or detaching the bin from the refrigerator door
• The bin sagging or not sitting flush against the door, indicating potential damage or wear

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This flip lid replaces a damaged or missing utility lid to keep the appliance opening covered and help contain contents. It restores proper closure and improves safety and cleanliness around the unit. What it does

• Replaces a broken, cracked or missing flip lid so the opening can close properly
• Helps keep debris and splashes out of the opening
• Prevents loose items from falling into the unit when closed
• Restores hinge function so the lid stays up or down as designed

• High-level swap: remove fasteners or hinge pins, align new lid on hinge, and reattach hardware
• Use caution handling small screws and pins; keep parts organized during removal
• No electrical disconnection required for most installs, but follow your appliance safety practices
• If hardware is damaged or missing, replace fasteners before completing installation
