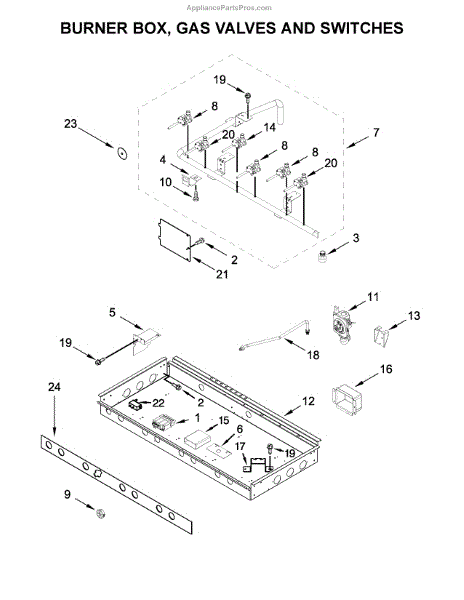

Parts for Jenn-Air JLRP436WP01: Burner Box, Gas Valves And Switches Parts

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This dual burner valve controls gas flow to two cooktop burners, restoring reliable ignition and heat control for gas ranges. It replaces a worn or leaking valve assembly to help stop burner failure and gas odors. What it does:

• Regulates gas flow to two burners so burners light and hold a steady flame
• Stops common symptoms like burners not lighting or weak/intermittent flames
• Helps prevent gas leaks when seals and valve seats are functioning correctly
• Used when clicking/ignition occurs but burners fail to sustain flame

• Shut off gas supply and power to the appliance before starting any repair.
• Inspect and replace any damaged gaskets or fittings; use proper thread sealant where required by the manufacturer.
• Tighten connections to specified torque and test all fittings for leaks with a soapy water solution or approved detector.

The Spark Module is an OEM prat for Whirlpool brand gas ranges. Within the gas control, it functions to generate high-voltage sparks igniting the standing pilot lights and burner flames.

Causes of failure include normal wear of internal electronics from extensive temperature cycling. Contamination or damage over time also disrupts proper sparking.

Symptoms of a faulty module include:

• Standing pilots failing to remain lit between use
• Burners not igniting when the control knob is turned
• Inconsistent burner output or shutdowns during cooktop usage

This Whirlpool replacement ensures temperature adjustments and cooking functions operate reliably. Compatible replacements are suitable for Whirlpool, Maytag, KitchenAid, and some Kenmore appliances as well.
